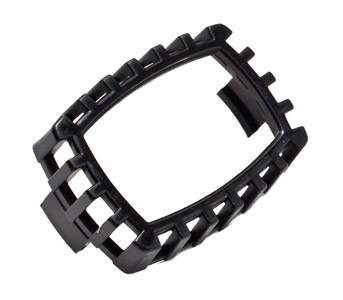

BEYERDYNAMIC 917373 SPARE UPPER GRILLE Outer surround for DT108/DT109, black

Stock code
54-787
Brand
Beyer (Beyerdynamic)
Model number
  • 917373
Colour
  • BlackBlack
BEYERDYNAMIC 917373 SPARE UPPER GRILLE Outer surround for DT108/DT109, black
BEYERDYNAMIC 917373 SPARE UPPER GRILLE Outer surround for DT108/DT109, black

BEYERDYNAMIC HEADPHONE AND HEADSET SPARE PARTS - DT100 series

A selection of Beyerdynamic spares for DT100, DT108, DT109 (applicable to all models unless stated). Some spares are available in sets to suit more common repair tasks.

Spares sets are a convenient way to replace commonly used spares. The kits come in various forms, with the majority of contents also available as individual component parts. For spares for other Beyerdynamic Professional Series headphone and headsets, see BEYERDYNAMIC HEADPHONE AND HEADSET SPARE PARTS - All series except DT100/108/109


955535 Spares Pivot Piece Set (54-796)

This set includes: 1x Metal Pressure Spring (53), 1x Plastic Pressure Spring (50), 1x Pivot Piece (48)


929488 Spares Headband Set (54-862)

Compatible with DT100 and DT109, this set includes: 1x Metal Headband (10), 1x Headband Cushion (54-809), 1x Headband Cable (54-811), 2x Cable Guide (54-830) and 2x Headband End Stop (54-816).


934332 Spares Headband Set (54-868)

Compatible with DT108, this set includes: 1x Metal Headband (10), 1x Dummy Ear Shell (27), 1x Dummy Ear Pad (26), 2x Cable Guide (54-830), and 1x Headband End Stop (54-816).


926356 Spares Dummy Ear Set (54-797)

Compatible with DT102 and DT108, this set includes: 1x Dummy Ear Shell (27), 1x Dummy Ear Pad (26), 1x Rivet for Dummy Ear (12), 1x Cable Guide, 1x Beyerdynamic Logo, 1x DT102 Logo


900257 Spares Boom Tracking Set, black (54-798)

Compatible with DT108 and DT109 and finished in black, this set includes: 1x Boom Tracking Disk (44), 1x Knurled Locking Ring (43), 1x Boom Fixing Screw, 1x Slotted Disk cap (42), 1x Quadrant Disc (45), 2 x Screws


900249 Spares Boom Tracking Set, grey (54-799)

Compatible with DT108 and DT109 and finished in grey, this set includes: 1x Boom Tracking Disk (44), 1x Knurled Locking Ring (43), 1x Boom Fixing Screw, 1x Slotted Disk cap (42), 1x Quadrant Disc (45), 2 x Screws


946748 Spares Microphone Housing Set, black (54-898)

Compatible with DT108 and DT109 and finished in black, this set includes: 1x Cover Plate (31), 1x Mic Housing (35), 1x Screw


926756 Spares Microphone Housing Set, grey (54-899)

Compatible with DT108 and DT109 and finished in grey, this set includes: 1x Cover Plate (31), 1x Mic Housing (35), 1x Screw

Component Parts

Parts are listed in grey or black finish where available. Neutral or concealed parts are also shown in the grey column and should be used for both grey and black headphones/headsets. Where individual components from a set are illustrated, these spares are shown in the ‘in kit’ column. Beyerdynamic aims to provide more spares in the ‘sets’ form in the future, however stocks of individual spares will be available while stocks last.

Code Code Code Description Ref on
(Grey) (Black) (in kit) drawings
54-801 - - Ear loudspeaker, 400 ohms 1
54-852 - - Ear loudspeaker, 16 ohms (1)
54-891 - - Ear loudspeaker, 50 ohms (1)
54-802 54-781 - Impedance disc, 400 ohms (2)
- - - Impedance disc, 2k ohms (2)
- 54-803 - Earpad (black vinyl) 3
- 54-822 - Earpad (black velour) 3
54-804 - - Foam infill 4
54-805 - - Housing, cable side, DT100 5
54-806 - - Housing, non-cable side, DT100, DT109 6
54-859 - - 6 Pin socket, DT100, DT108, DT109 7
54-808 54-785 - Junction box cover ‘left’ 8
54-860 - - Junction box cover ‘right’ 8
54-809 - 54-862 Headband cushion 9
- - 54-862 Headband, DT100, DT109 10
- - 54-868 Headband, DT108 10
54-811 - 54-862 Headband cable 11
- - 54-797 Plastic rivet 12
54-830 54-868 Cable guide, DT100/DT108/DT109 13
54-816 - 54-862 End stop 16
54-818 - - Adhesive pad 18
54-819 - - Screw DT-1 19
54-820 - - Screw DT-2 20
54-826 - - Dummy pad, DT108 (different shape to illustration) 26
- - 54-797 Side shell, DT108 27
- - 54-899 Cover plate, 200 ohms 31
54-832 54-787 - Upper grille outer surround 32
54-833 - - Mic foam insert 33
- 54-788 - Mic capsule, 200 ohms 34
- - 54-899 Mic housing, lower 35
- - - Insert, threaded taper nut 38
54-840 - - Mic cable standard 40
54-841 - - Mic cable DT109.11 type 41
- - 54-799 Slotted disc cap 42
- - 54-799 Knurled locking ring 43
- - 54-799 Boom arm track disc 44
- - 54-799 Quadrant disc 45
- - 54-796 Pivot pin 47
- - 54-796 Earshell pivot piece 48
- - 54-796 Plastic pressure spring 50
- - 54-796 Metal pressure spring 53
54-870 - - 6 Pin plug (to fit item 7) -
54-869 - - 6 Pin plug retaining screw -
54-871 - - K100.07 Cable, straight, DT100, 3.5mm/6.35mm adapter -
54-875 - - K109.00 1.5 metre cable, straight, DT108, DT109 -
