MOSSES & MITCHELL B-GAUGE JACKFIELDS

24 items

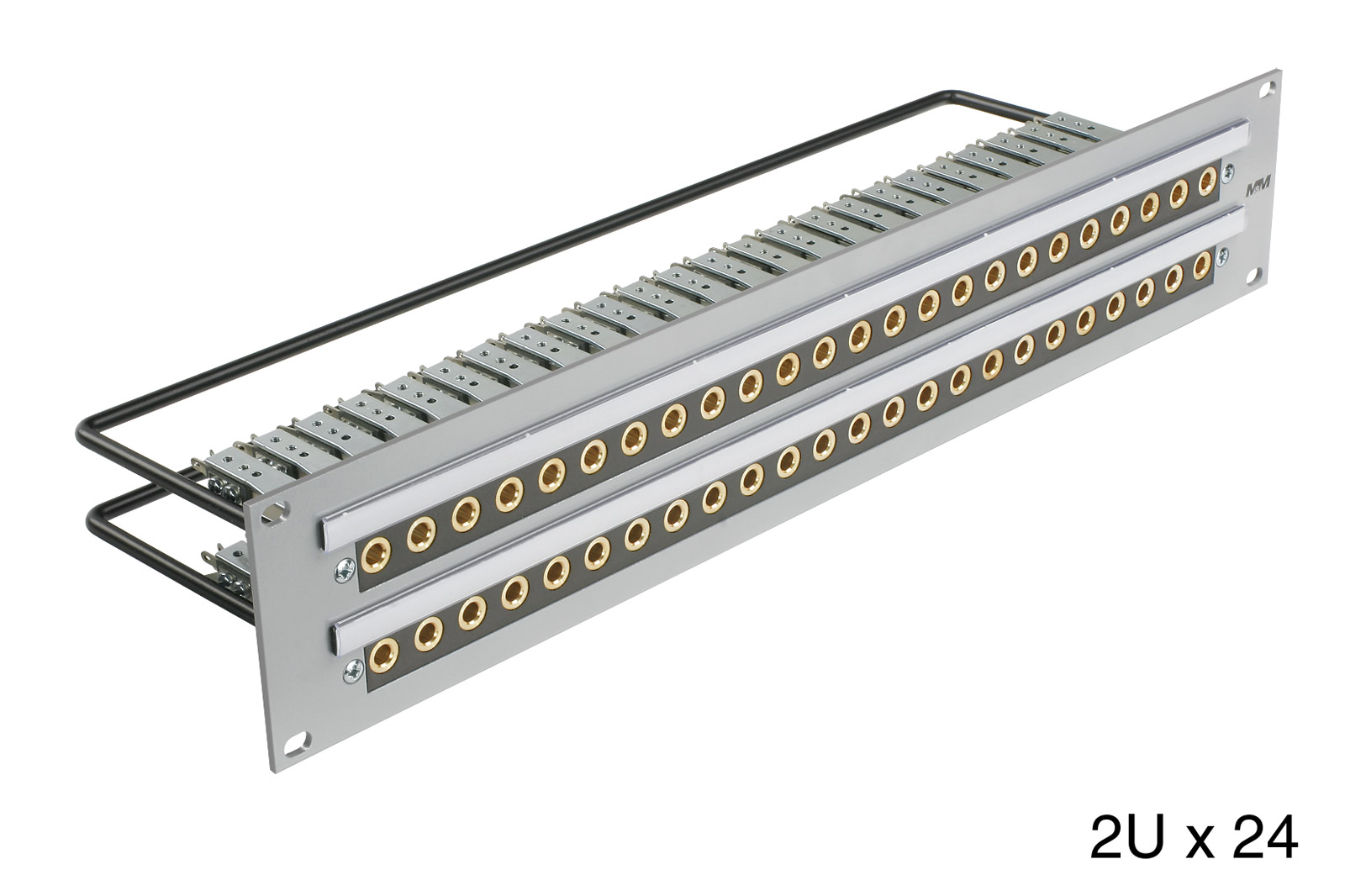

M&M B-GAUGE JACKFIELD 2U 2x24 brass jacks, mono-pitch continuous, clear
M&M B-GAUGE JACKFIELD 2U 2x24 brass jacks, mono-pitch continuous, clearM&M B-GAUGE JACKFIELD 2U 2x24 brass jacks, mono-pitch continuous, clearM&M B-GAUGE JACKFIELD 2U 2x24 brass jacks, mono-pitch continuous, clear

One, two, three, four, five and six-row jackfields, 20, 24 and 26, Mosses & Mitchell 6.35mm, B-gauge jacks per row. Jacks are 5-point palladium-contact type and are equally spaced across the panel; “mono pitch”. Panels are fitted with a lacing-bar for each row of jacks and a designation strip holder is fitted above each connector row. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. The aluminium front panel is straight-grained and clear or black anodised.

Dimensions: Length; 19”. Height; 1 row - 1U; 2 row - 2U; 3 row - 3U; 4 and 5 row - 4U; 6 row - 5U
Pre-cut, stripped and tinned normalling wire is available, see Normalling wire.

1U, 2U and 3U Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.

Note: Snap-on covers for the designation strips are temporarily unavailable due to supply chain issues and are not being supplied with the units.

Description Price $
ex. VAT
Add to basket
Delivery
M&M B-GAUGE JACKFIELD 1U 1x20 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-120
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 1U 1x24 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-124
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 1U 1x26 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-126
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 2U 2x20 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-220
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 2U 2x24 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-224
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 2U 2x26 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-226
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 3U 3x20 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-320
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 3U 3x24 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-324
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 3U 3x26 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-326
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 4U 4x20 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-420
No longer manufactured. Please contact Technical Support for alternatives.
M&M B-GAUGE JACKFIELD 4U 4x24 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-424
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 4U 4x26 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-426
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 4U 5x20 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-520
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 4U 5x24 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-524
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 4U 5x26 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-526
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 5U 6x20 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-620
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 5U 6x24 brass jacks, mono-pitch continuous, clear BrassClear Stock code: 45-624
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 5U 6x26 brass jacks, mono-pitch continuous, silver BrassSilver Stock code: 45-626
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 2U 2x20 brass jacks, mono-pitch continuous, black BrassBlack Stock code: 45-720
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 2U 2x24 brass jacks, mono-pitch continuous, black BrassBlack Stock code: 45-724
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 2U 2x26 brass jacks, mono-pitch continuous, black BrassBlack Stock code: 45-726
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 3U 3x20 brass jacks, mono-pitch continuous, black BrassBlack Stock code: 45-820
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 3U 3x24 brass jacks, mono-pitch continuous, black BrassBlack Stock code: 45-824
Price on application, please call us.
POA
M&M B-GAUGE JACKFIELD 3U 3x26 brass jacks, mono-pitch continuous, black BrassBlack Stock code: 45-826
Price on application, please call us.
POA
