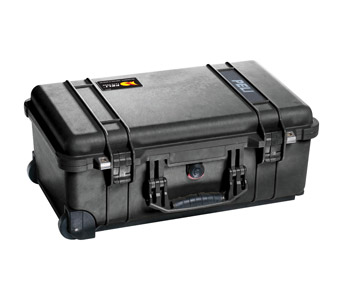

PELI 1510 PROTECTOR CASE Internal dimensions 502x279x193mm, with foam, wheeled, black

Stock code
15-778
Brand
Peli
Model number
  • 1510F
  • 1510
Colour
  • BlackBlack
PELI 1510 PROTECTOR CASE Internal dimensions 502x279x193mm, with foam, wheeled, black
PELI 1510 PROTECTOR CASE Internal dimensions 502x279x193mm, with foam, wheeled, blackPELI 1510 PROTECTOR CASE Internal dimensions 502x279x193mm, with foam, wheeled, blackPELI 1510 PROTECTOR CASE Internal dimensions 502x279x193mm, with foam, wheeled, black

PELI PROTECTOR CASES - with Foam

Peli Protector cases are guaranteed unbreakable, for life. They are watertight, rugged, corrosion-proof and airtight. Constructed in a lightweight structural resin, the wall is unaffected by dents, scratches or corrosion. The neoprene 6mm O-ring seal ensures a watertight seal (to a depth of 10 metres) and prevents dust ingress (damaged O-rings can easily be replaced). The built-in pressure purge valve allows for quick equalisation after changes in altitude or temperature. 1120PF panel frame kit is designed to enable users to flush mount interface panels with the rim of the 1120 Protector Case. The kit includes the panel frame, a polymer O-ring to seal the panel, six inserts, and four self-tapping screws.

Large, robust latches hold cases securely closed, and there is a facility to attach Peli 1506TSA padlocks for extra security. The comfortable moulded handle folds down on all models, and some have wheels for easy handling. The receptacles for padlocks are re-enforced with metal.

Available with either padded divider set, see PELI PROTECTOR CASES - with Dividers; empty, see PELI PROTECTOR CASES - Empty; or with 'pick-and-pluck' foam insert.

Some cases are also available in orange, yellow, grey, green, or tan finish. Please contact our Sales Team for more information.

Model Internal dimensions (1) External dimensions Weight (2) Wheels Extendable Buoyancy
L x W x D(mm) L x W x D(mm) (kg) Handle (kg)
1120 185 x 121 x 85 (65+13) 214 x 172 x 98 0.61 No No -
1150 211 x 147 x 95 (73+19) 240 x 198 x 109 0.73 No No 3.63
1170 268 x 153 x 80 (53+27) 296 x 212 x 96 0.89 No No 3.29
1200 235 x 181 x 105 (74+30) 270 x 246 x 124 1.2 No No 5.45
1300 233 x 178 x 155 (125+30) 270 x 246 x 174 1.4 No No 5.6
1400 301 x 228 x 131 (102+30) 347 x 295 x 146 1.6 No No 9.1
1430 344 x 146 x 297 (246+51) 417 x 221 x 334 2.54 No No 26.76
1450 374 x 260 x 154 (111+44) 409 x 331 x 175 2.9 No No 13.61
1460 471 x 252 x 277 (153+125) 530 x 323 x 324 3.97 No No 37.19
1500 428 x 286 x 155 (109+46) 471 x 357 x 175 3.2 No No 22.68
1510 502 x 279 x 193 (147+45) 559 x 351 x 229 5.44 2 Yes 29.1
1520 449 x 318 x 171 (125+45) 499 x 393 x 191 3.76 No No 28.58
1550 473 x 360 x 196 (149+44) 525 x 435 x 216 5.4 No No 31.7
1560 506 x 380 x 229 (178+51) 561 x 455 x 265 7.71 2 Yes 52.16
1600 546 x 420 x 202 (155+44) 618 x 494 x 222 6.4 No No 53.07
1610 551 x 422 x 268 (216+52) 628 x 497 x 303 9.07 2 Yes 54.4
1620 543 x 414 x 319 (267+52) 630 x 492 x 352 11.1 2 Yes 68
1630 704 x 533 x 394 (308+83) 795 x 615 x 444 14.06 4 Yes 158.76
1640 602 x 610 x 353 (302+51) 691 x 699 x 414 15.42 4 Yes 165.56
1650 722 x 442 x 270 (225+46) 801 x 521 x 317 15.4 4 Yes 82.1
1660 716 x 499 x 448 (359+89) 802 x 584 x 495 15.49 4 Yes 165.56
1670 714 x 419 x 233 (188+46) 788 x 493 x 284 10.43 4 No 82.55
1690 765 x 638 x 390 (308+73) 849 x 721 x 448 15.42 4 Yes 196.41
1700 908 x 343 x 133 (89+44) 968 x 406 x 155 7.3 2 No 62.1
1720 1067 x 343 x 133 (89+44) 1127 x 406 x 155 7.6 2 No 73
1730 864 x 610 x 318 (254+64) 953 x 689 x 365 13.61 2 No 188.69
1740 1041 x 328 x 308 (243+65) 1122 x 409 x 356 9.98 No No 121.11
1750 1283 x 343 x 133 (89+44) 1346 x 406 x 155 10.7 2 No 85
1770 1386 x 396 x 219 (171+48) 1458 x 469 x 285 13.15 No No 127.01
1780 1044 x 547 x 378 (185+193) 1140 x 643 x 419 17.42 4 No 226.8

Notes (1) Depth is 'Total (base + lid)'; (2) Empty case
