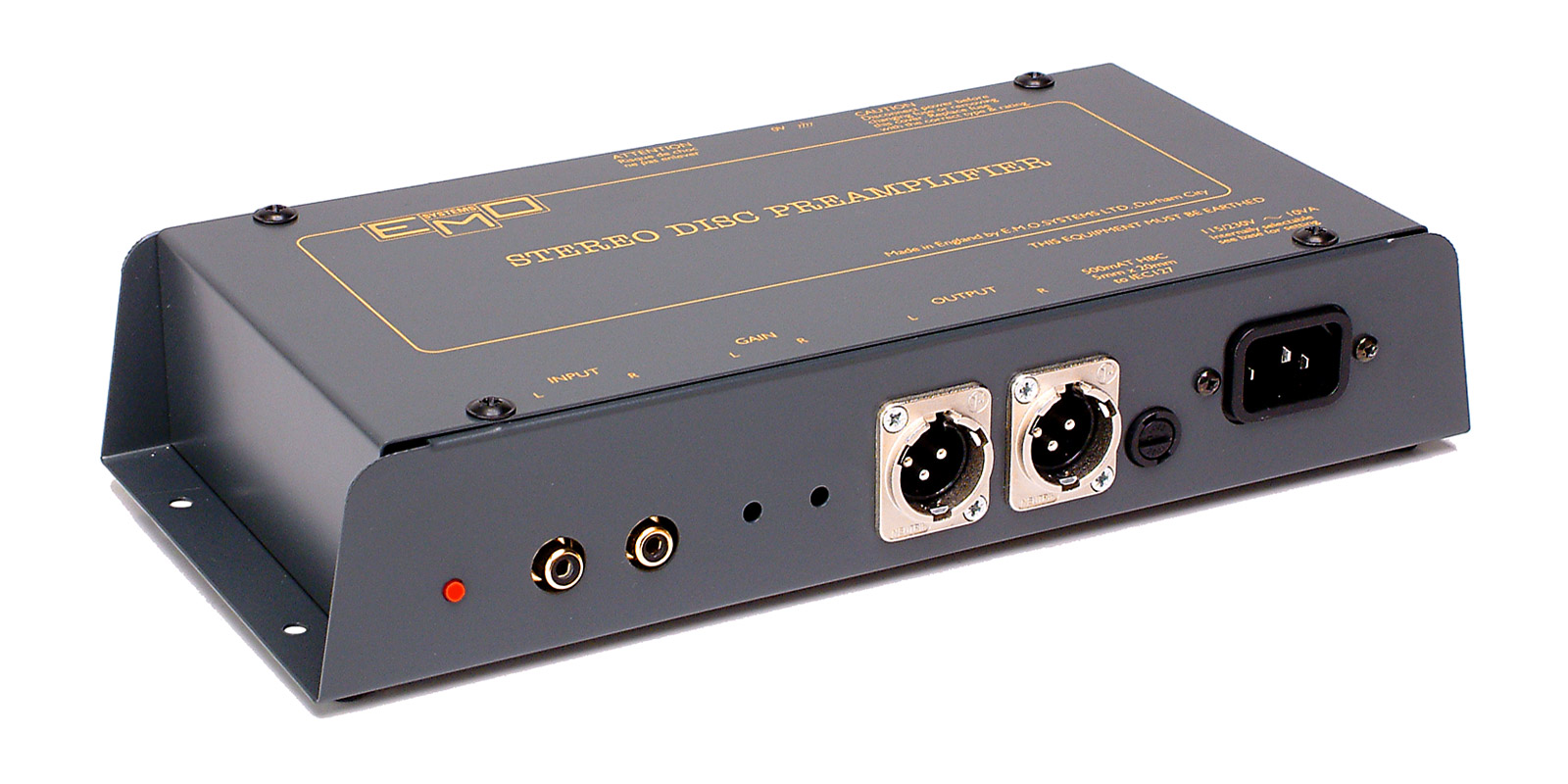

EMO DISC PRE-AMPLIFIERS
The EMO disc pre-amplifier is designed for the professional audio user in both broadcast and studio situations. Fitted with balanced outputs (using Lundahl LL5402 transformers), it incorporates the latest in low noise circuitry and tight tolerance components to ensure long operational life. Its compact size enables it to be mounted beneath a turntable plinth.
Technical Specification:
| Switchable input capacitance: |
50pF, 100pF, 150pF, 200pF. |
| Output level: |
Up to +20dBu. |
| Switchable high pass filter: |
–3dB @ 20Hz, 12dB/octave. |
| Adjustable gain: |
35 to 55dB. |
| Frequency response: |
30Hz to 20kHz, within ±0.5dB of RIAA curve. |
| Noise: |
–87dBu RMS A weighted |
|
–82dBu 22Hz-22kHz bandpass |
|
–75dBu CCIR quasi peak |
| Harmonic distortion: |
<0.008% 1kHz+8dBu |
| Crosstalk: |
Better than –75dB @ 1kHz |
|
Separate chassis/signal earths. |
| Supply voltage required: |
120/220/240v AC. Mains cable included. |
| Input: |
Gold plated phono connectors. |
| Output: |
XLR. |
| Overall dimensions: |
270(w) ×140(d) ×55(h)mm. |
‘EMO’ is a registered trademark of Canford Audio Limited.
