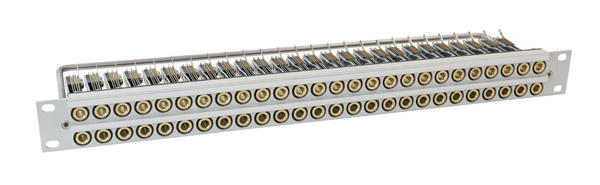

Constructed from a rigid 1U aluminium extrusion with dawn grey or black powder coated finish, these two-row jackfields allow a consistent 'Canford style' finish to patching and termination panel areas within an installation.
The industry standard Mosses and Mitchell B-Gauge jacks are set at 'mono-pitch' (equally spaced) in two rows of 20, 24 or 26 in a 1U panel. Jacks are 5-point, palladium-contact type with a heavy duty nickel-plated frame and brass front ring to ensure a long and reliable operational life. Supplied complete with a single, central lacing-bar and a snap-on cover designation strip for each row of jacks. Overall depth 115mm.
Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.
Other colours and finishes are available to special order, minimum order quantities may apply. Please contact Sales for details.
Optional accessories:
Recess rack-mounting brackets are available to recess panels within the rack, see CANFORD RACKBRACKET - Recess mounting brackets.
Manufactured by Canford.
