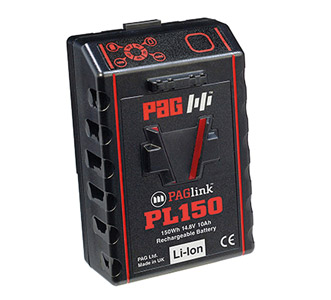

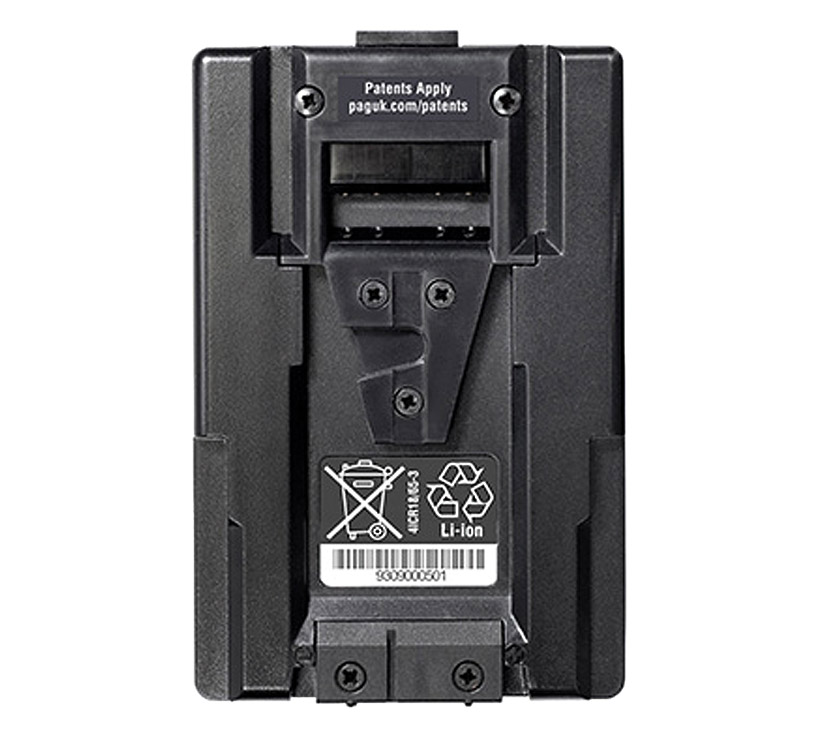

PAG PAGlink 9308 PL150e BATTERY V-mount style, Li-Ion, 14.8V, 10Ah, rechargeable

Stock code
59-8682
Brand
PAG
Model number
  • 9308
  • PAGlink V-Mount
  • PL150e
PAG PAGlink 9308 PL150e BATTERY V-mount style, Li-Ion, 14.8V, 10Ah, rechargeable
PAG PAGlink 9308 PL150e BATTERY V-mount style, Li-Ion, 14.8V, 10Ah, rechargeablePAG PAGlink 9308 PL150e BATTERY V-mount style, Li-Ion, 14.8V, 10Ah, rechargeablePAG PAGlink 9308 PL150e BATTERY V-mount style, Li-Ion, 14.8V, 10Ah, rechargeablePAG PAGlink 9308 PL150e BATTERY V-mount style, Li-Ion, 14.8V, 10Ah, rechargeable

Order

VAT / Delivery
$636.79
each (ex. VAT)
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
Lithium-Ion battery: Express delivery services not available outside mainland GB.

PAG V-MOUNT COMPATIBLE BATTERIES

V-Mount (Sony) compatible batteries, constructed from high-impact polycarbonate, are available in a variety of capacities, and a choice of status indicator. All designed and manufactured in the UK.


PAGlink V-Mount

PAGlink is the only battery system that allows you to link more than two batteries for charge or discharge, allowing hot-swapping when required, providing a greatly extended run-time or a high-load capability of 12A (8A individually), for power-hungry cameras and accessories. Individual battery run-time and capacities are displayed via a 5-light or numeric display, depending on model. PAGlink batteries also support four different camera data systems that display capacity in the viewfinder: Sony, IDX, Red and Anton-Bauer.

Model/type Electrical Performance Display Dimensions Weight
PAG 9303 14.8V 6.5Ah 5 light 133 x 84 x 50mm 0.73kg
PAG 9304 14.8V 6.5Ah Numeric 133 x 84 x 50mm 0.73kg
PAG 9308 14.8V 10Ah 5 light 133 x 84 x 50mm 0.77kg
PAG 9309 14.8V 10Ah Numeric 133 x 84 x 50mm 0.77kg

PAG L90 Slim

This slim form-factor battery, weighing just 567g, has been designed for use with small cameras, mounted to such things as gimbals or drones. Incorporated in the battery are spacers between the cells to prevent the negative effects of drone vibration. Battery run-time and capacity are displayed on an 'orientation-sensing' numeric display. An unregulated 12V D-Tap output can be used to power auxiliary accessories. It has a 10A continuous output. Electrical performance: 14.8V 6.1Ah, 90 watt-hour capacity. Dimensions: 140 x 85 x 35mm.

For battery chargers see PAG V-MOUNT COMPATIBLE CHARGERS.
