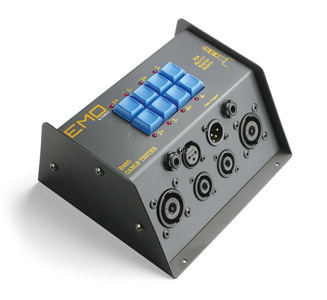

EMO LOUDSPEAKER CABLE TESTERS
The EMO E450 cable tester will test for continuity, cross connection, and open circuit in cables fitted with NL8FC 8-pole and NL4FC 4-pole Speakon connectors, 3-pin XLR connectors, and 2 or 3 pole A-gauge jacks. EP retrofit kits are available to allow cables fitted with EP 4, 5, 6, or 8 pin connectors to be tested. The EP connectors fit in two pre-punched holes on the rear of the tester accessed by removing the blanking panel. The kit’s flying leads plug directly into connectors mounted on the tester’s PCB.
The E450 is portable but may be permanently mounted on a fixed surface to avoid movement when testing heavy cables. The front panel is sloped to facilitate quick and easy cable connection.
Robust metal construction makes the E450 suitable for prolonged use in the professional touring market.
Technical Specification:
| Power supply: |
1 x Type 4022, MN1604, 6LR61 or equivalent battery (not supplied). |
| Dimensions: |
180mm x 145mm x 75mm. |
| Weight: |
1.22kg. |
‘EMO’ is a registered trademark of Canford Audio Limited.
