CONTACTA STS-S60 INTERCOM LOUDSPEAKER Surface mount, 5W, grey

Stock code
26-373
Brand
Contacta
Model number
  • STS-S60-G
  • STS-S60
Colour
  • GreyGrey
CONTACTA STS-S60 INTERCOM LOUDSPEAKER Surface mount, 5W, grey
Hearing Loops: With and WithoutCONTACTA STS-S60 INTERCOM LOUDSPEAKER Surface mount, 5W, grey

Order

VAT / Delivery
$131.20
each (ex. VAT)
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
RoHS Compliant

CONTACTA SPEECH TRANSFER SYSTEMS

Contacta Speech Transfer Systems (STS) facilitate hands-free communication through security screens in banks, cash offices, bureaux de change and ticket offices, offering both loudspeaking and induction loop facilities. The STS system could also be used to communicate across offices and other work areas. A range of boxed kits is offered, which contains all necessary components, for easy installation.

Deployable Systems

STS-K070 – Dual speaker pod system

Intended for use where fixed safety screen or partition hinders normal conversation. The speaker pod is designed to be mounted or placed on a desktop, with the ‘mouse’ microphone close by to ensure maximum speech pickup. An optional hearing loop can be connected to the amplifier to aid those with compatible hearing devices.

Included components: 1x STS-A31H speech transfer amplifier, 2x STS-M70-1 mouse microphone, 2x STS-S70 speaker pod, 1x PS-55-01 power supply.
Optional accessories: IL-AE99 hearing loop aerial, IL-AE97-00 Supaloop aerial.

STS-K071 – Safety screen speaker and microphone pod system

Intended for use where fixed safety screen or partition hinders normal conversation. The speaker pod is designed to be mounted or placed on a desktop, with the ‘mouse’ microphone close by to ensure maximum speech pickup. A gooseneck microphone is attached to the speaker pod for the staff side of the partition. An optional hearing loop can be connected to the amplifier to aid those with compatible hearing devices.

Included components: 1x STS-A31H speech transfer amplifier, 1x STS-M70-1 mouse microphone, 1x STS-SU2 staff loudspeaker pod, 1x STS-S70 speaker pod, 1x PS-55-01 power supply.
Optional accessories: IL-AE99 hearing loop aerial, IL-AE97-00 Supaloop aerial

STS-K072 – Safety screen mounted microphone and speaker pod system

Intended for use where fixed safety screen or partition hinders normal conversation. The speaker pod is designed to be mounted or placed on a desktop, with a screen mounted microphone for audio pickup. A gooseneck microphone is attached to the speaker pod for the staff side of the partition. An optional hearing loop can be connected to the amplifier to aid those with compatible hearing devices.

Included components: 1x STS-A31H speech transfer amplifier, 1x STS-M14-BENT-B screen-mounted microphone with bent stem, 1x STS-SU2 staff loudspeaker pod, 1x STS-S70 speaker pod, 1x PS-55-01 power supply.
Optional accessories: IL-AE99 hearing loop aerial, IL-AE97-00 Supaloop aerial

STS-K073 - Dual staff loudspeaker system

Designed as an entry level window intercom system in locations where a safety screen or partition hinders normal conversation. Both pods feature loudspeaker and staff microphone, and are designed to be mounted or placed on a desktop surface. An optional hearing loop can be connected to the amplifier to aid those with compatible hearing devices.

Included components: 1x STS-A31H speech transfer amplifier, 2x STS-SU2 staff loudspeaker pod, 1x PS-55-01 power supply.
Optional accessories: IL-AE99 hearing loop aerial, IL-AE97-00 Supaloop aerial

Bridge-bar Systems

STS-K001L

Intended to sit on a counter, this has a microphone in the centre and speakers to either side. The all-in-one design makes it a 'robust system that is effortless to install'. Supplied boxed, complete with instructions, IL-AE99 induction loop aerial, PS-55-01-UK power supply unit and all components including induction loop aerial fixing kit, signage and mounting bracket.

Included components: STS-SU1-G/STS-SU1-B staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-B80 bridge-mounting customer microphone and loudspeakers.

STS-K060

STS-K060 has the same feature set as STS-K001L however is includes STS-B90 slimline bridge bar unit as opposed to STS-B80 bridge bar. The amplifier and hearing loop aerial are the same. Available in stainless steel only.

Included components: STS-SU1-SS staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-B90-SS bridge-mounting customer microphone and loudspeakers.

STS-B80

These items consists of cardioid microphone and 5W speaker on a bridge-bar style unit. Designed for the customer side, STS-B80 is popular in banks, post offices, kiosk, airports, and information centres. Available in grey as STS-B80-G, or black as STS-B80-B.

Dimensions (HxWxD): 245 x 620 x 75mm. Weight: 1.44kg

Surface Mount Systems

STS-K035

This window intercom system features individual speaker and microphone units for both customer and staff member facing sides. STS-K035 is a freestanding system that is designed to be mounted or placed onto a desktop surface. The amplifier can be mounted under the desktop surface.

Versions available
Model Customer facing unit Colour
STS-K035-B Curved left microphone Black
STS-K035-G-LH Curved left microphone Grey
STS-K035-B-RH Curved right microphone Black
STS-K035-G-RH Curved right microphone Grey

Included components: 1x STS-B94-LH-B/G or STS-B94-RH-B/G half bridge bar unit, 1x STSSU1-G/B staff loudspeaker, 1x STS-A31H two-way audio amplifier and mounting plate, IL-AE99 hearing loop aerial.

STS-K002L

This contains discrete, free-standing, movable speaker and omni-directional microphone modules for the customer side and a free-standing combined speaker and directional microphone module for the staff side. Supplied boxed, complete with instructions, IL-AE99 induction loop aerial, PS-55-01-UK power supply unit and all components including induction loop aerial fixing kit, signage and mounting bracket.

Included components: STS-SU1-G/STS-SU1-B staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-M54 surface mounted customer microphone module, STS-S60 surface mounted customer loudspeaker module.

STS-K002-01

This system is much like the STS-K002L, however in place of a combined gooseneck microphone and staff loudspeaker, separate loudspeaker and microphone units are provided.

Included components: STS-A31H two-way audio amplifier and mounting plate, 2x STS-M54 surface mounted customer microphone module, 2x STS-S60 surface mounted customer loudspeaker module, PS-55-01 power supply, IL-AE99 aerial.

STS-K058

This system consists of STS-A31 amplifier, STS-SU1-G freestanding staff loudspeaker, STS-S60 freestanding customer loudspeaker, IL-AE99 loop aerial, and STS-M14-BENT screen-mount microphone with bent stem. The system is designed to aid communication whereby glass is positioned between staff member and customer. The included hearing loop aerial provides assistance for hearing aid wearers.

Dimensions (HxWxD): 300 x 310 x 160mm. Weight: 2.8kg.

Flush Mount Systems

STS-K003L

This has two speaker and microphone units which are set into the counter, mounting flush, on the customer side and a free-standing combined speaker and directional microphone module for the staff side. Supplied boxed, complete with instructions, IL-AE99 induction loop aerial, PS-55-01-UK power supply unit and all components including induction loop aerial fixing kit, signage and mounting bracket.

Included components: STS-SU1-G/STS-SU1-B staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-M56 flush mounted customer microphone module, STS-S61 flush mounted customer loudspeaker module.

Overhead Speaker Systems

STS-K061 - Overhead speaker with anti-vandal mic

STS-K061 has been designed to provide assistance for clear communication where normal speech is impaired by use of glass, a security screen or other similar barriers. The kit features a bent, vandal-proof, glass mounted microphone for the customer-facing side, along with a free standing staff microphone unit. There is also a hearing loop facility included with this system to provides additional assistance for hearing aid wearers with compatible devices.

Included components: STS-S22-G overhead speaker, STS-A31H two-way audio amplifier and mounting plate, STS-M14-BENT anti-vandal microphone, STS-SU1-G staff loudspeaker with gooseneck microphone, PS-55 power supply, IL-AE99 hearing loop aerial,.

Weight: 2.8kg, boxed kit.

STS-K062 - Dual overhead speakers with anti-vandal mic

STS-K062 is designed for installation where no customer facing counter is present. This kit includes a single anti-vandal microphone that can be mounted to a security screen. Like STS-K015-01, this kit includes a single gooseneck microphone with flexible neck to pick up the speech of the staff member. The hearing loop aerial is integrated into the supplied hearing loop sign.

Included components: 2x STS-S23-G overhead speakers, STS-A31H two-way audio amplifier and mounting plate, STS-M14-300 anti-vandal microphone, STAFFMIC-01-NWB flexible gooseneck microphone, PS-55 power supply, IL-AE97-00 hearing loop sign with integrated aerial.

Dimensions (WxDxH): 102 x 90 x 83mm, overhead speaker; 30 x 300 (diameter x stem), anti-vandal microphone. Weight: 4.08kg, boxed kit.

STS-K064 - Overhead speaker with anti-vandal mic

Similar in design to STS-K062, STS-K064 includes a single overhead speaker, anti-vandal screen-mountable microphone, and speech transfer amplifier. The differences, other than the single speaker, is the staff loudspeaker and gooseneck microphone combination, and the under-counter loop aerial.

Included components: STS-S23-G overhead speaker, STS-A31H two-way audio amplifier and mounting plate, STS-M14-300 anti-vandal microphone, STS-SU1 staff loudspeaker with gooseneck microphone, PS-55 power supply, IL-AE99 hearing loop aerial, IL-SN01 fixed loop signage.

Components and Accessories

STS-A31H - Amplifier

Built in an ABS plastic case, with lugs to be screwed to the underside of the counter, the STS-A31H amplifier provides two channels of full open duplex communication, with a loop drive compliance bounded by 4V RMS and 3V RMS. The gain on each channel can be adjusted independently with volume controls. All connections are via two pin plugs. Microphone cable is screened, loudspeaker and induction loop are twin wires. Dimensions (HxWxD): 116 x 115 x 40mm. Weight: 100g. Power supply: PS-55-01-UK, 12-14VDC.

STS-SJB-RJ - Breakout box

This breakout box has been designed to enable the use of headsets in place of the staff microphone/loudspeaker. This gives for a quieter environment in places such as ticket booths, service points or where multiple vendors are nearby. A push button allows for muting. STS-SJB-RJ has a single RJ11 connection for both headphone and microphone. Connection to STS-A31H amplifier is via 2-pin removable terminal-block connector ('Euroblock'). Dimensions (HxWxD): 20 x 117.6 x 39mm. Weight: 100g.

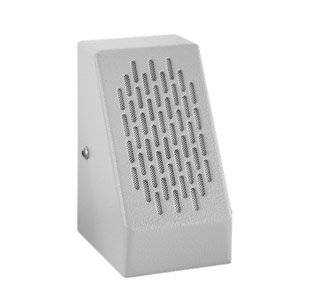

STS-S60 - Loudspeaker, Surface Mount

Available in black or grey versions, STS-S60 is a 5watt surface mount loudspeaker designed for Contacta speech transfer systems. Normally found in banks, post offices, ticket kiosks, and information centres, this loudspeaker is a useful addition to any speech transfer system where a screen is involved. The loudspeaker is rated at 5W RMS with an SPL output of 1W at 1m 85dB, and a frequency response of 150Hz to 10.3kHz. Dimensions (HxWxD): 75 x 60 x 110mm. Weight: 550g.

STS-S61 - Loudspeaker, Flush Mount

A customer facing, flush mount loudspeaker that has been designed to be mounted into a surface for a 'sleek look'. The loudspeaker is available in grey or black finish and has an RMS output of 5W and an impedance of 4ohms. The frequency response is 150Hz to 10.3kHz with an sound pressure level of 85dB, 1W at 1m. Dimensions (HxWxD): 50x65x120mm. Weight: 413g

STS-SU1 - Combined microphone and loudspeaker

This free-standing unit is available in grey, black or stainless steel. It is for use on the staff side of the security screen and offers a mute switch for convenience. The cardioid microphone capsule with a frequency response of 150Hz – 10.5kHz and a sensitivity of 49.5dB (at 1kHz), is positioned at the upper end of a semi-rigid stem with adjustable neck. The loudspeaker is rated at 5W RMS with an SPL output of 1W at 1m 85dB. Dimensions (HxWxD): 370 x 95 x 150mm. Weight: 820g.

STS-SU1-3W - Combined microphone and loudspeaker with dual mute switch

A free-standing unit that has been designed for use on the staff side of the security screen and offers a dual mute switch for convenience. The dual muting allows the member of staff to allow sound from both sides of the counter, muted staff microphone, or muted staff and customer microphones. The cardioid microphone capsule with a frequency response of 150Hz – 10.3kHz and a sensitivity of 49.5dB (at 1kHz), is positioned at the upper end of a semi-rigid stem with adjustable neck. The loudspeaker is rated at 5W RMS with an SPL output of 1W at 1m 85dB. Dimensions (HxWxD): 370 x 95 x 150mm. Weight: 820g.

STS-M54 - Microphone, Surface Mount

Available in black or grey versions, STS-M54 is a 5watt surface mount omnidirectional microphone designed for Contacta speech transfer systems. Normally found in banks, post offices, ticket kiosks, and information centres, this microphone is a useful addition to any speech transfer system where a screen is involved. The microphone is has a frequency response of 100Hz to 5kHz. Dimensions (HxWxD): 75 x 60 x 110mm. Weight: 550g.

STS-M56 - Microphone, Flush Mount

A customer facing, flush mount microphone with an omnidirectional pickup pattern. The microphone has been designed to be mounted into a surface for a 'sleek look'. STS-M56 is available in grey or black finish and frequency response of 100Hz to 5kHz. Dimensions (HxWxD): 50 x 65 x 5mm. Weight: 164g

STAFFMIC-01-NWB - Microphone, Freestanding

STAFFMIC-01-NWB is manufactured in mild steel for durability. A 300mm flexible gooseneck is attached to a round base with a diameter of 70mm to give a total height of 340mm and weight of 950g. The microphone has a cardioid pick-up pattern, a frequency response of 150Hz - 10.5kHz and a sensitivity of 49.5dB at 1kHz.

STS-M14 - Microphone, Anti-vandal

Available in three lengths - 120mm (STS-M14-120), 200mm (STS-M14-200), or 300mm (STS-M14-300); STS-M14 is a straight stemmed unidirectional microphone designed for use with compatible Contacta speech transfer system. The microphones has a frequency response of 100Hz to 5kHz, with a distortion level of less than 1percent. Construction material is aluminium with silver anodised finish. Dimensions (Diam x L); 30 x 120/200/300mm. Weight: 0.4/0.45/0.5kg.

IL-RX20 - Loop Listener

The IL-RX20 Loop Listener is a compact listening device designed for use and interaction with hearing loop systems whereby an engineer can listen to the hearing loop system as though they were wearing a compatible hearing aid switched to the 'T' position. The two included alkaline AAA batteries will give more than 100 hours life; a rotary volume control doubles as on/off switch. An LED illuminates to signify power on. The included headphones are connected via 3.5mm jack socket located on the top of the IL-RX20. Dimensions (HxWxD): 240 x 165 x 40mm. Weight: 550g, with headphones.

Note: Contacta products are only available for sale to customers in the UK and Ireland.
