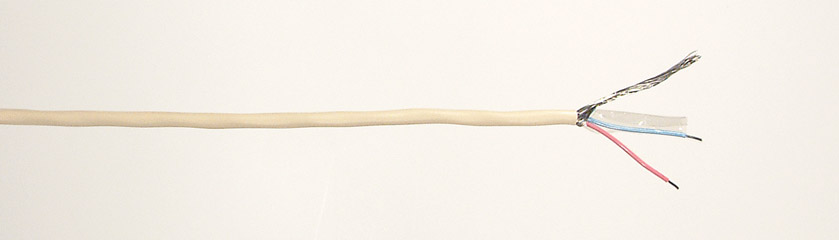

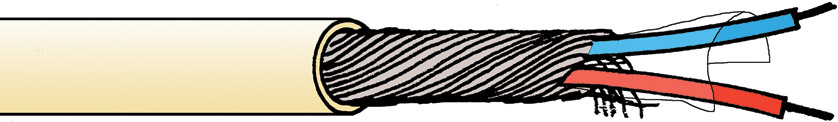

KHT - HELICAL SCREENED SOLID CONDUCTOR TWIN CABLE (BBC PSN2/4)
Twisted pair helical screened cable to BBC specification. Suitable for permanent wiring within racks and equipment. Suitable for termination onto Krone frames but the screen must be made off to a single wire.
Technical Specification:
BBC specification: |
PSF2/4M |
Voltage rating: |
750kV dc |
Conductors: |
1/0.5mm (0.2mm²) |
Current rating: |
1A |
Insulation: |
PVC, blue and red |
Screen: |
32/0.15mm closely lapped |
Overall jacket: |
PVC, 3.0mm OD, cream |
Conductor resistance: |
92.2 ohms/km |
Capacitance (nom): |
140pF/m |
Weight: |
1.4kg/100m |
Reel length: |
100m, 500m |
Cut lengths: |
Available in any multiple of 1 metre |
