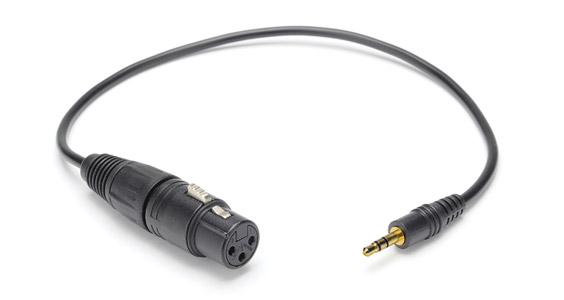

CANFORD CABLE 3FXXB-3.5mm 3-pole jack plug, straight, 250mm, camera mic input

Stock code
38-783
Brand
Canford
GTIN
5056704797758
CANFORD CABLE 3FXXB-3.5mm 3-pole jack plug, straight, 250mm, camera mic input
CANFORD CABLE 3FXXB-3.5mm 3-pole jack plug, straight, 250mm, camera mic input

CANFORD XLR FEMALE - 3.5mm 3-POLE JACK CABLES

These pre-wired microphone input cables are for use with most camera and portable recorders.

Portable Recorder Microphone cables

Nickel XLR 3-pin female for the microphone connection and a 3.5mm 3-pole jack plug, straight or right-angle, for the recorder connection.

Camera Microphone Cables

Black XLR 3-pin female for the microphone connection and a 3.5mm 3-pole jack plug, straight or right-angle, for the camera connection.
Tip and ring on the jack plug (left and right channels) are wired to pin 2 (signal) on the XLR. Sleeve on the jack plug (ground) is wired to pins 3 and 1 on the XLR.
