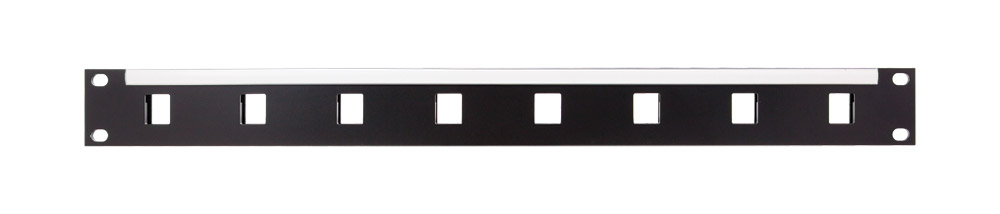

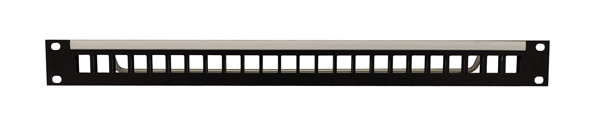

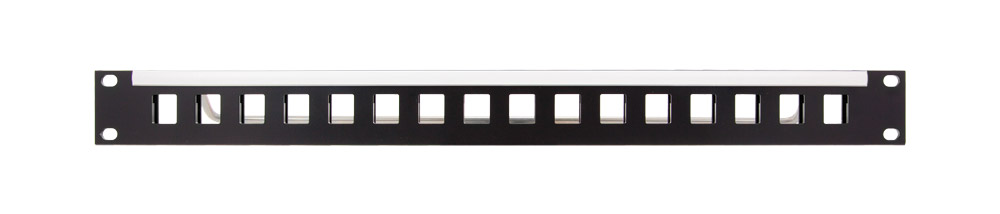

These multipurpose connection panels suitable for use with a range of industry-standard keystone connectors, allowing an almost infinite number of possible configurations. Manufactured from a lightweight, but extremely rigid, 1U aluminium extrusion, these panels are available with 8, 16 and 24 equally-spaced cut-outs.

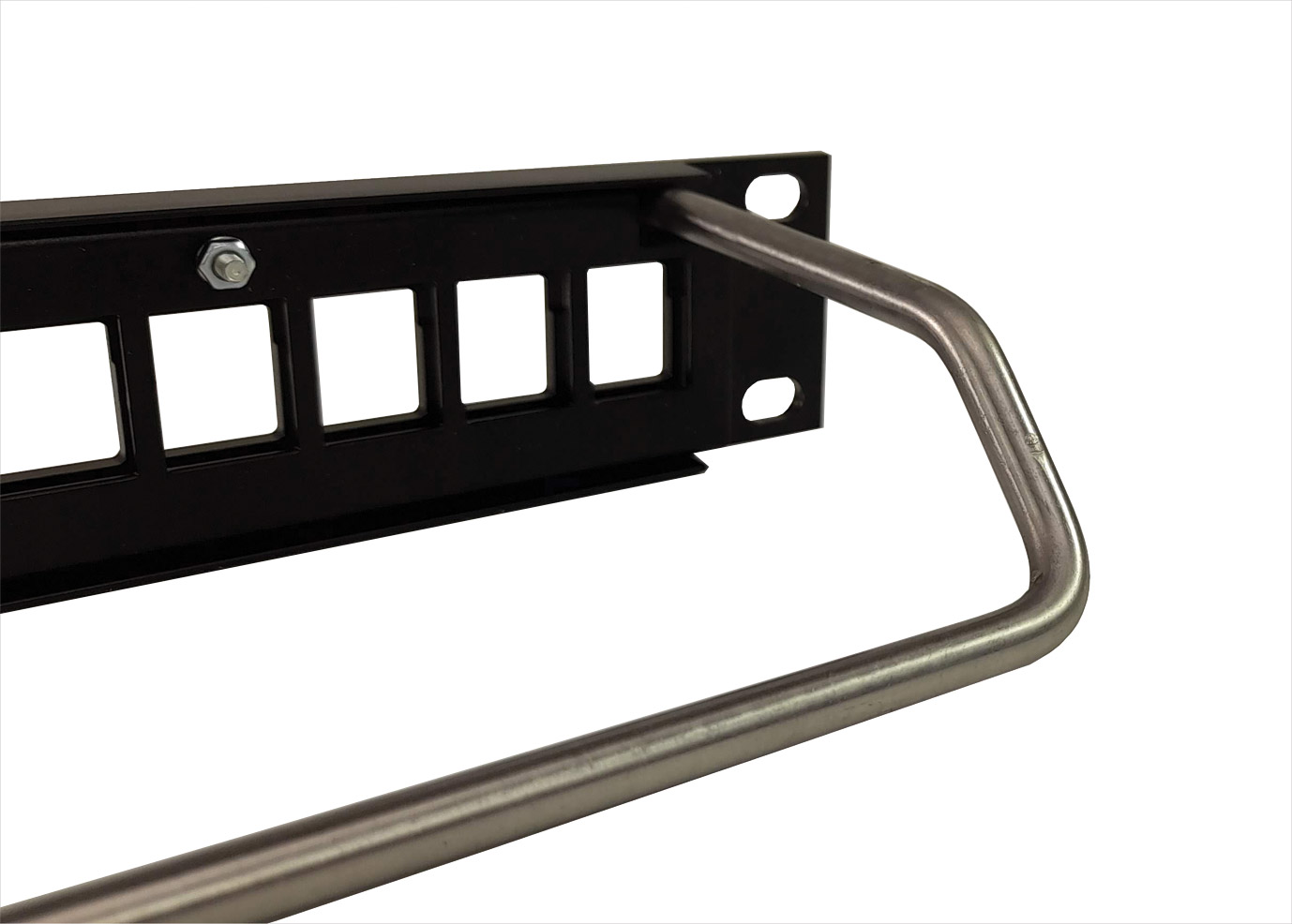

The individual keystone connectors snap-fit into a rear-mounted sub chassis and are presented flush with the face of the front panel. Panels come as standard with a cranked lacing-bar giving easy access to the rear of the connectors.
A designation-strip holder with snap-on cover is fitted on the front panel to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

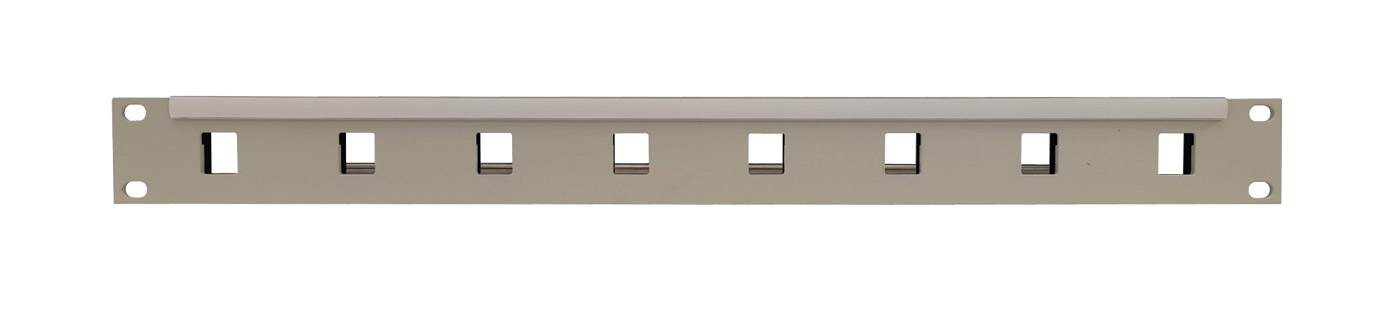

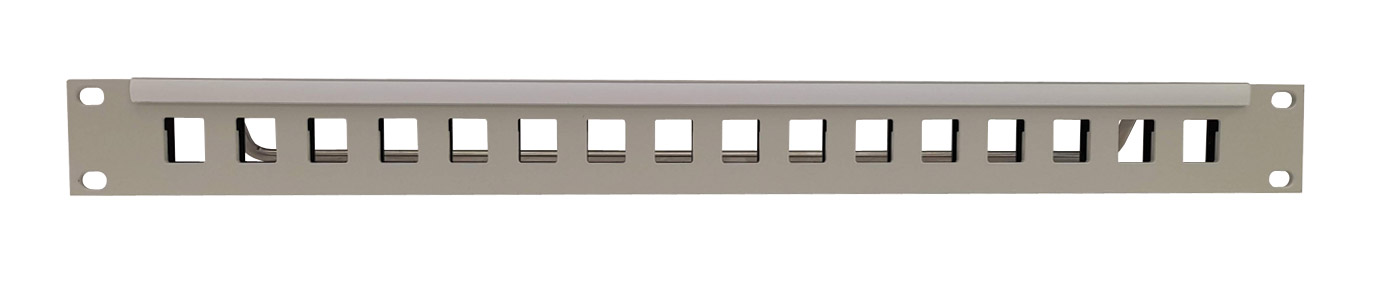

Panels are available finished in Dawn Grey (BS4800-10A03) or Black.
A range of 'Keystone' connectors is available. See TUK Keystone Connectors for further details.
