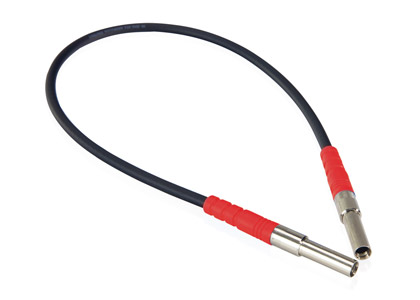

CANFORD microMUSA 12G UHD PATCHCORD 300mm, Red

Stock code
45-5902
Brand
Canford
GTIN
5056704747869
Colour
  • RedRed
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Red
CANFORD microMUSA 12G UHD PATCHCORD 300mm, Red

CANFORD microMUSA PATCHCORDS - 12G 4K UHD

Developed for use with our exclusive range of microMUSA video patch panels these microMUSA patchcords are intended for 12G 4K ultra high definition (2160P60), 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE ST 2082-1 making them suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz.

These patchcords are manufactured to the new microMUSA specification for Canford by Coax Connectors, and not only perform beyond the required 4K standard but also offer the highest possible density with a maximum of 48 patches possible in a single 1U panel. Additionally, all connectors incorporate a unique positive location feature (“detent”) that indicates when the patchchord is fully mated into the panel whilst additionally providing resistance to disconnection through vibration as found in some environments such as OB vehicles. Though designed and made to the same very high standards as our industry standard 3G MUSA connectors this range is not compatible with the existing Canford 3G MUSA range.

Like the original 3G MUSA system, the microMUSA is a non-normalised system and therefore U-links or patchcords are required to make the circuit.

These patchcords are manufactured using Canford branded 12G 4K UHD video coaxial cable which is designed to be both very flexible and withstand repeated bending. The MicroMUSA connectors are nickel-plated with gold plated centre contacts providing a smooth mating action.

Colour coding is by means of factory fitted strain relief bushes in ten different colours. The cable is black.

Available as standard in 300mm, 450mm, 600mm, 900mm, 1200mm, 1500mm, 1800mm, 2m, and 5m lengths.

Related products:

For suitable patchpanels, see CANFORD microMUSA VIDEO PATCH PANELS - 12G 4K UHD - Standard Density, High Density, Very High Density.
For suitable U-links, see CANFORD microMUSA U-LINKS - 12G 4K UHD.
