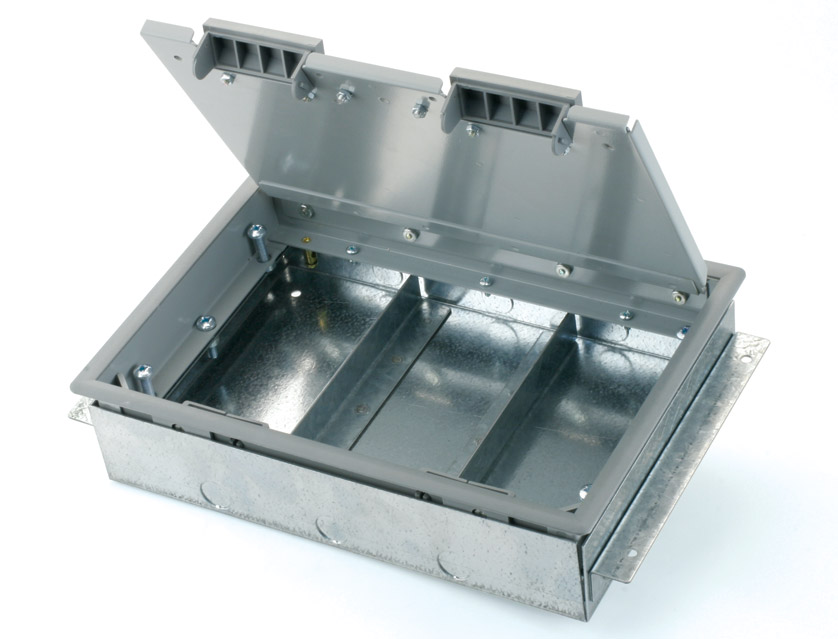

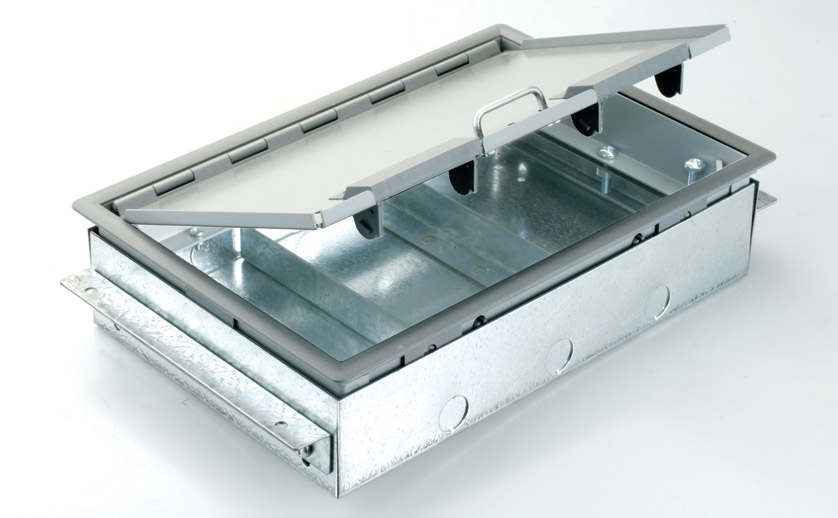

Heavy duty steel floorbox (also known as a ‘Stage Dip Box’) for recessed mounting into solid and wood floors. The top half of the box has an upper lip, which rests on or flush with the floor surface. It is finished in grey stove-enamel with grey moulded plastic lip. The bottom section has adjustable flanges for bottom fixing below the floor surface (removable if not required) plus 20mm knockouts, and is divided into three compartments. Mounting holes are also provided in the bottom face. The bottom section can be installed during building works (including in cast concrete floors), the top section screws in later, and has height adjustment of up to 18mm with set screws for levelling. The lid is hinged along the long edge, and is in itself a shallow tray – designed to allow a piece of carpet or wood trim (approx 5mm thick) to be inserted so as to match the lid to the remainder of the floor. Two moulded flaps are incorporated in the edge opposite to the hinge, which can either be locked shut when the box is not in use, or open to allow cables to enter. In this position they are locked so cannot partly close and trap the cables. Usable aperture with lid fully closed 12mm x 43mm per flap.
Internally, a sub-frame allows the mounting of three connector or blank plates, as required. The plates lie parallel to the floor. Various pre-punched plate options are available to suit most common requirements, but note that plates suit either centre positions or end positions within the box, but not both. The basic box includes all hardware, and is supplied without any connector plates, which are ordered separately. Note there is no provision in these boxes to maintain segregation of services. If this is required, then it will be necessary to use more than one box.
Centre plates
| 49-682 |
Blank plate |
| 49-685 |
Four universal series connectors (e.g. XLR, jack, BNC etc). Connectors not included – see Universal series connectors). Note maximum clearance between front of connector and underside of lid is 28mm, so check mating connector body plus cable length will fit. Normally only BNC’s and right angled XLR or jack connectors will fit in this clearance. For longer bodied connectors use 49-686. |
| 49-689 |
As 49-685 but high density version for eight connectors. If XLR type are used, mating right angled connectors MUST use the 45° keying facility, with four set each way (see illustration). |
| 49-688 |
Angled plate punched, for four universal series connectors, two at each end of a recess; two cables exit one direction, two the other. |
| 49-690 |
Flat plate punched for two Euro connector modules (50mm x 50mm). Connector modules not included. |
End plates
| 49-683 |
Two unswitched 13A mains sockets (fitted) |
| 49-686 |
Angled plate punched for two universal series connectors. Clearance (along centre line of connector) between front of socket and underside of lid is approx. 100mm. |
Dimensions
| Bottom section: |
303 x 204 x 59mm (flanges removed) |
| Wooden floor cutout: |
300 x 200mm (if back box fitted before top surface laid) |
| Minimum clearance below floor surface: |
73mm |
