CANFORD CABLE NE8MX-1-NE8MX-1-CAT5E-F-3m, Black

Stock code
46-8730
Brand
Canford
Model number
  • NE8MX-NE8MX-3m
GTIN
5056704792258
Colour
  • BlackBlack
CANFORD CABLE NE8MX-1-NE8MX-1-CAT5E-F-3m, Black

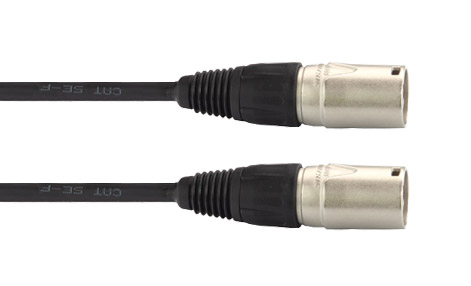

Image may be provided for illustrative purposes only, please refer to the product description.

CANFORD CABLE NE8MX-1-NE8MX-1-CAT5E-F-3m, Black

CANFORD ETHERCON CAT5E SCREENED CABLES - Using Cat5E-F deployable cable

These Category 5E compliant screened patchcords are made using Canford's CAT5E-F extra-flexible deployable Cat5E cable. They are fitted with Neutrik Ethercon NE8MX1 connectors at each end. The extra-flexible PVC jacket and stranded conductors offer a flexibility normally only found in microphone cables and have a life far in excess of more common solid-conductor types.

Each individual cable is described in detail by the use of an abbreviated sequence in the form:

Canford Cable - 1st connector - 2nd connector - cable type - cable length - cable colour.

Detailed specifications for the connectors and cables are given in their appropriate entries elsewhere.

NE8MX-1 NEUTRIK NE8MX-1 ETHERCON Cable housing, nickel 46-0583
CAT5E-F Canford CAT5E-F CABLE Black 31-850

Note: A range of Data cable drums with a variety of connector, cable and length combinations is now available, see CANFORD CABLE DRUMS - DATA - Plastic, rubber and metal drum, supplied with cables

ORDERING NOTE: This entire range of cables now comes fitted with 2off 100mm lengths of clear heat-shrink sleeving on the cable as standard, to enable fitting of labels by users. The un-shrunk sleeves can easily be cut off if not required.

Residual stocks of cables under 4m with a single or no sleeves may exist in the short term. If two sleeves are an absolute necessity, please confirm with Sales at time of any order.
