CANFORD GOOSENECK MICROPHONE C475XB48

Stock code
53-138
Brand
Canford
Model number
  • C475XB48
GTIN
5056704751408
CANFORD GOOSENECK MICROPHONE C475XB48

Image may be provided for illustrative purposes only, please refer to the product description.

CANFORD GOOSENECK MICROPHONE C475XB48

CANFORD CONDENSER GOOSENECK MICROPHONES

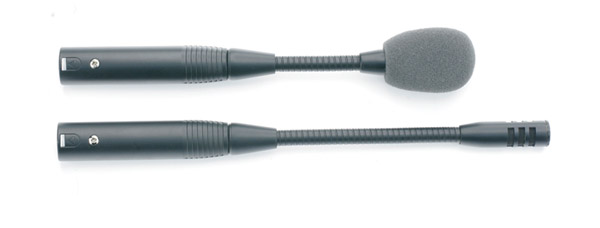

Black slimline goosenecks (8mm diameter) with small high performance microphone head (13.2mm diameter). Available in a range of lengths, the model code indicates the length from top of head to panel surface in mm. (For XB types, this assumes the microphone is plugged into an XLR socket mounted in the panel). Applications include conference, broadcast and PA work, talkback, and other areas where a discreet, small, flexibly mounted microphone is required.

XB type

These have an XLR 3 pin male connector at the base, and require 6-24 volts (types C-XB24) or 25-52 volts (types C-XB48) phantom power. Supplied complete with windshield C13.

A UK electrical style white plastic mounting plate with XLR 3 pin female connector is also available (stock code 49-511) which fits directly onto woodwork, or onto walls and ceilings using either plaster type flush back box 49-578 or surface plastic box 49-4402; for further details see Connector plates.

PB type

These have a threaded stem base, designed for panel mounting (M10 thread, with anti-rotation flat, 8.2mm). They are supplied with 1 metre dual-core screened cable, for powering arrangements see data sheet 02-053. Cable screen is isolated from gooseneck housing. Supplied complete with fixing nut and windshield C13.
Note: The C375RSPB has a 150mm rigid tube in the middle of the gooseneck stem.

Technical Specification:
Impedance: 200 ohms
Sensitivity: –62dB±3dB (0.95mV/µBar)
Frequency range: 50Hz–18kHz
Polar response: Cardioid
Front-to-back rejection: 12dB (1kHz)
Powering: XB24 type – 6-24 volts phantom
XB48 type – 25-52 volts phantom
PB type – electret capsule
