A selection of Manfrotto clamps designed to aid easier positioning of accessories including microphones, reflectors, action cameras, props, or photographic flash heads.
A sturdy and compact aluminium clamp designed to be secured to tubes measuring 8-15mm in diameter and support payloads of up to 2kg. The face of the clamp has two female threads, one 6.35mm and one 9.5mm. The red coloured rotary cap doubles as a tightening knob. An included, double ended adaptor allows connection to either of the clamps female threads. Small enough to fit in most audio/video/photography kit bag, this clamp could have a variety of uses including mounting actions camera, microphone, or photography accessory.
Colour: Black/Red. Clamp range: 8-15mm. Payload: 2kg. Weight: 0.07kg
A small clamp designed to attach equipment or accessory to a tube measuring 13-35mm in diameter. ‘High-friction’ tape allows for better grip onto tube, giving a maximum payload capacity of 4kg. A clamp handle is used to adjust and tighten the clamp, whilst both 9.5mm and 6.35mm female attachments allow for connectivity to compatible equipment.
Colour: Black. Clamp range: 13-35mm. Payload: 4kg. Weight: 0.097kg

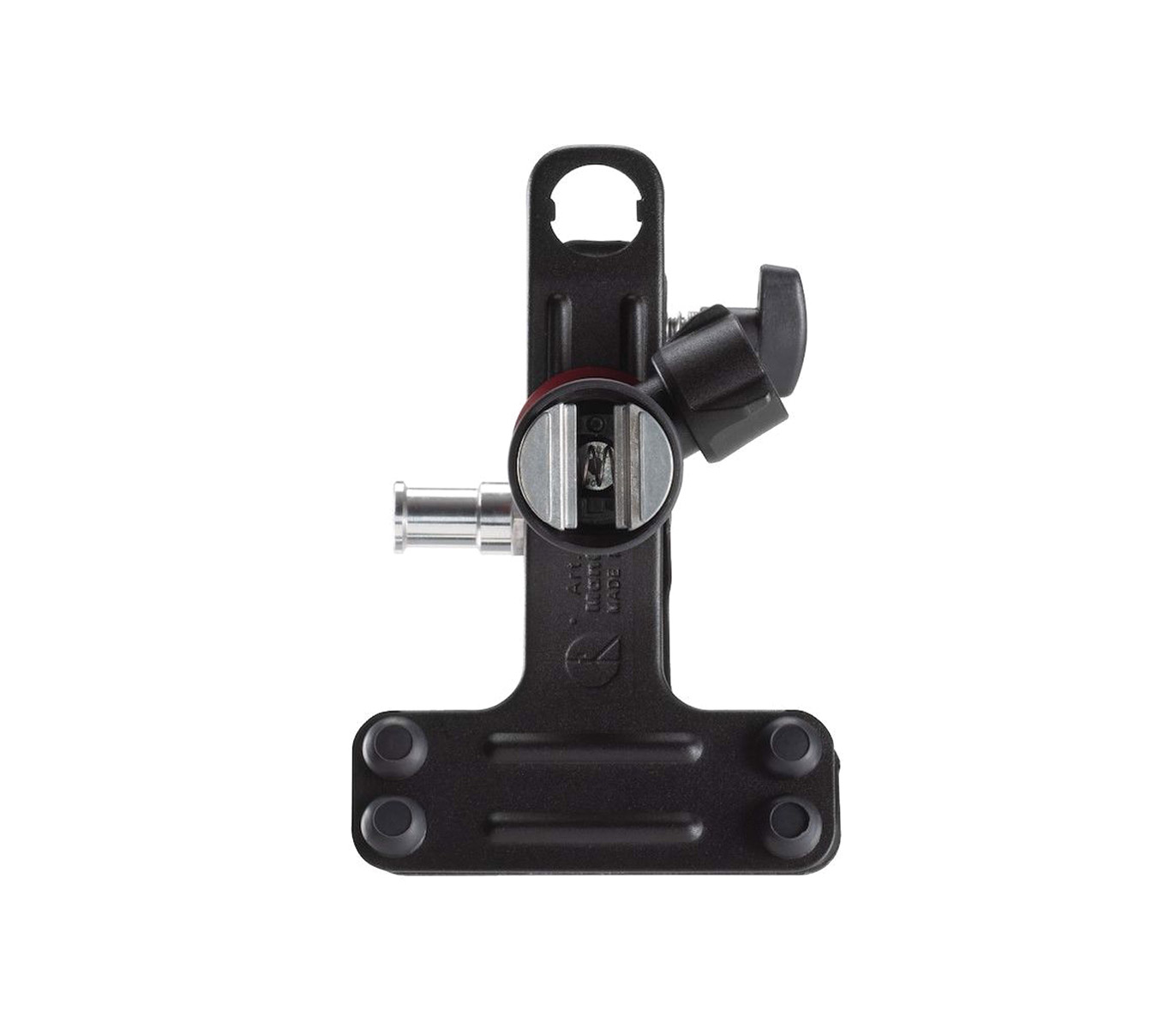

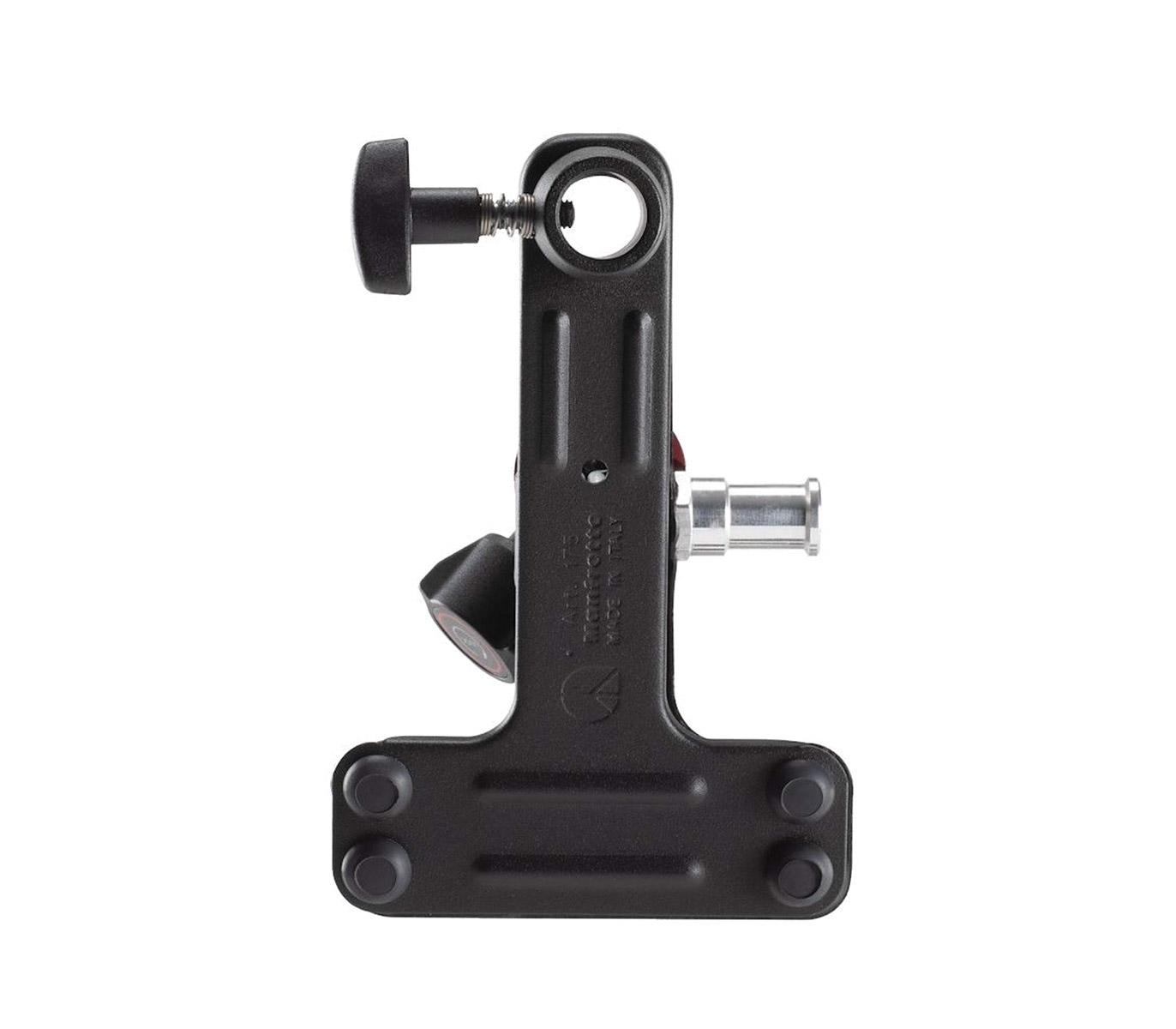

175F-2 Cold Shoe Spring Clamp
This versatile spring clamp has the ability to clamp onto a flat surface, pole, or even the back of a chair up to 40mm thick/diameter. The jaws of 175F-2 feature a number of hard rubber studs which provide further grip, particularly useful on irregular shaped surfaces. On the top of the clamp there is a multi-position ball head and locking knob. This ball head is terminated with a cold shoe mount. In addition to the ball head, 175F-2 also has a single 5/8-inch socket and a single 5/8-inch spigot with 3/8-inch female thread. These connections provide the ability to mount additional accessories.
Colour: Black. Clamp range: up to 40mm. Length: 15.6cm. Payload 2kg. Weight: 0.35kg
035 Super Clamp is most likely the best-selling Manfrotto clamp. Designed to clamp to a round or flat surface, and capable of supporting a payload of up to 15kg. A hexagonal socket supports either round or hexagonal accessories with the hexagonal socket preventing unintentional rotation. There is also 1/4-inch and M5 threads additional mounting positions. A rubber wedge, available as a spare as 035WDG, is included and aids mounting to flat surfaces.
A range of compatible spigots and connectors are available, see MANFROTTO STUDS AND CONNECTORS.
Colour: Black. Clamp range: 13-55mm. Payload: 15kg. Weight: 0.43kg
This has the functionality and specification as 035 Super Clamp (with the exception of a slightly smaller clamping range), however it has the additional feature of having a ratchet handle for better security
Colour: Black. Clamp range: 13-45mm. Payload: 15kg. Weight: 0.5kg
This Manfrotto clamp is essentially two 035 Super Clamps joined by a connector and positioned at a 90-degree angle – useful for connecting vertical and horizontal poles.
Colour: Black. Clamp range: 13-55mm. Payload: 15kg. Weight: 0.83kg
This clamp has the same functionality as 035 in terms of connectivity and capabilities, however in place of the fastening handle there is a rotating fastening knob that allows for quicker placement and locking.
Colour: Black. Clamp range: 13-55mm. Payload: 15kg. Weight: 0.488kg
A Pack of four wedges that allow the Super Clamp to be mounted onto a flat surface.
