21 December 2024

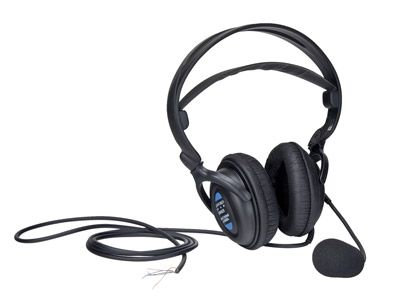

CANFORD LEVEL LIMITED HEADSET DMH625 88dBA, wired stereo, straight cable, unterminated

Stock code
54-4046
Brand
Canford
Model number
  • DMH625
GTIN
5056704726789
CANFORD LEVEL LIMITED HEADSET DMH625 88dBA, wired stereo, straight cable, unterminated
CANFORD LEVEL LIMITED HEADSET DMH625 88dBA, wired stereo, straight cable, unterminated

Order

VAT / Delivery
$264.96
each (ex. VAT)
23 in stock Need more?
Canford 2 year warranty
RoHS Compliant

CANFORD LEVEL LIMITED HEADSETS

Canford has considerable experience in the design of headphone limiters and their use in the operational environment. Whilst virtually any headphone or headset can have a limiter fitted, using one of the seven types of standard multipurpose limiter circuits, this usually has to be in an in-line housing. By designing type-specific circuits for individual ear loudspeakers, these can be made small enough and appropriately shaped to enable them to be built into the earcup housing. Adding a limiter circuit to a headphone alters the input impedance.

For level limited headphones, see CANFORD LEVEL LIMITED HEADPHONES.

Audio-Technica (BPHS1)

BPHS1

Closed-back, circumaural stereo headphones have a 560 ohm, cardioid, dynamic microphone on a 180.1mm flexible gooseneck with a frequency range of 40Hz to 20kHz and is designed to pick up vocal sounds whilst reducing the pickup of unwanted background noise. Earpieces of the 65 ohms, frequency response of 20Hz to 20kHz. Detachable cable terminates with 3-pin male XLR (microphone) and 6.35mm, stereo jack (headphones) connection. Supplied limited at 88dBA.

Beyerdynamic (DT109, DT280, DT290, DT297PV, DT790, DT797)

DT109

The DT109 level-limited headsets are available in four versions - two terminated, one unterminated and one without cable (XLR wiring is compatible with Tecpro and RTS intercom systems, see Tecpro Communication System - Headsets product group for details of the wiring conventions):

Code Code Wiring Cable type Plug Spare cable
88dBA 93dBA
- 54-340 - - No cable supplied -
- 54-341 Mono Single-side, straight Neutrik XLR 4-Pin female 54-895
- 54-342 Stereo Single-side, straight Neutrik XLR 5-Pin female 54-896
- 54-343 Stereo Single-side, straight Supplied unterminated 54-873

DT280

Headsets with an extremely low visual profile for improved 'in-shot' appearance, and great comfort for extended wearing. Single muff, hypercardioid dynamic mic. 'XJ' suffix denotes supplied fitted with Neutrik NC3MX XLR 3-pin male for mic and NP3X 3-pole A-gauge jack. Supplied wired mono and limited at 88dBA.

DT290

Headsets with an extremely low visual profile for improved 'in-shot' appearance, and great comfort for extended wearing. Dual muff, hypercardioid dynamic mic. 'XJ' suffix denotes supplied fitted with Neutrik NC3MX XLR 3-pin male for mic and NP3X 3-pole A-gauge jack. 'XLR5M' suffix denotes supplied with Neutrik NC5MXX 5-pin male (mic pins 1 & 2, common pin 3, ear left pin 4, ear right pin 5).

Code Code Wiring Cable type Plug Spare cable
88dBA 93dBA
54-4066 - Stereo Single-side, straight Neutrik XLR 3-Pin male and Neutrik A-gauge 3 pole jack 54-7371
54-4070 - Stereo Single-side, straight Neutrik XLR 5-Pin Male 54-7367

DT297PV

As DT290 but with cardioid pattern condenser mic. Supplied fitted with Neutrik NC3MX XLR 3-pin male for mic and NP3X 3-pole A-gauge jack. Also available with Neutrik NC7MXX connector.

Code Code Wiring Cable type Plug Spare cable
88dBA 93dBA
54-4069 - Stereo Single-side, straight Neutrik XLR 3-Pin male and Neutrik A-gauge 3 pole jack 54-7371
54-4122 - Stereo Single-side, straight Neutrik XLR 7-Pin male -

DT790

Discontinued

The DT790 is a combination of the closed studio headphone DT770, the high-quality dynamic - hypercardioid microphone of the DT 290 with a new pivoting, gooseneck microphone boom.

Code Code Wiring Cable type Plug
88dBA 93dBA
54-4076 - Stereo Single-side, straight Supplied unterminated
54-4077 - Stereo Single-side, straight Neutrik XLR 4-Pin female
54-4078 - Stereo Single-side, straight Neutrik XLR 5-Pin male

DT797

As DT790 but with cardioid pattern condenser mic. Supplied fitted with Neutrik NC3MX XLR 3-pin male for mic and NP3X 3-pole A-gauge jack, wired mono and limited at 88dBA.

Canford (DMH625)

DMH625

As DMH620 headphones but with 600 ohm dynamic mic. Single-sided, 1.5 metre straight cable, supplied unterminated, or with Neutrik XLR 4-Pin female or Neutrik XLR 5-Pin male. Supplied limited at 88dBA. Spare parts available. Cable colours: Blue - ear left positive; Green - ear right positive; Black - ear left and right negative; Red – mic positive; Bare – mic negative.

Code Code Wiring Cable type Plug
88dBA 93dBA
54-4046 - Stereo Single-side, straight Supplied unterminated
54-4047 - Mono Single-side, straight Neutrik XLR 4-Pin female
54-4048 - Stereo Single-side, straight Neutrik XLR 5-Pin male

Sennheiser (HMD 26-II, HMD 46-31)

HMD 26-II

This lightweight headset features a dynamic, hyper-cardioid, 300ohm microphone with a response of 40Hz-16kHz. The closed-ear, supra-aural, headsets are designed for use in TV and radio broadcast applications, with high maximum SPL and high wearing comfort, in combination with a good noise attenuation and a frequency response of 20Hz-18kHz. The flexible gooseneck microphone boom, which can be used either on the left or right-hand side, is muted when the boom position is upright. Coiled lead, supplied fitted with Neutrik NC3MX XLR 3-pin male for mic and NP3X 3-pole A-gauge jack, wired stereo and limited at 88dBA. Spare cable code: 54-4092.

HMD 46-31

Sennheiser HMD 46-31 headsets have a dynamic microphone with noise compensation and a frequency response up to 12kHz. Designed for use in air traffic control applications, these lightweight headsets have high soft ear pads for high wearing comfort.

Code Code Wiring Cable type Plug Spare cable
88dBA 93dBA
54-4084 - Stereo Single-side, coiled LEMO 5-pin male 54-4093
54-4088 - Mono Single-side, coiled Neutrik XLR 4-Pin female 54-4094
54-4087 - Mono Single-side, straight Neutrik XLR 5-Pin male 54-4095
Notes

1) The quoted limit level of 93dBA, 88dBA and 85dBA is for measurement using dummy head (or mannequin) systems. For measurements using flat plate calibrators the level will differ. Health and Safety authorities are more inclined to use the dummy head type measurement.

Spares

Certain ear loudspeakers and cables are listed as spares in a group. For further information, see CANFORD LEVEL LIMITED HEADPHONES AND HEADSETS Spare parts.
