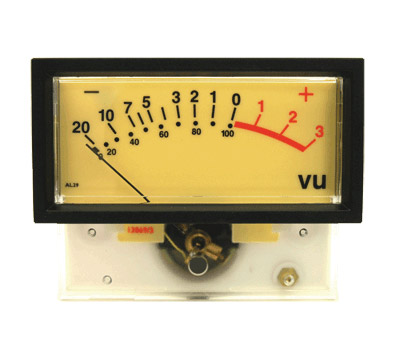

SIFAM AUDIO LEVEL METER AL29WF

Stock code
58-382
Brand
Sifam (Sifam Controls, Sifam Meters)
Model number
  • AL29WF
SIFAM AUDIO LEVEL METER AL29WF
SIFAM AUDIO LEVEL METER AL29WF

SIFAM AUDIO LEVEL METERS

A lower cost alternative to the standard range of Sifam full specification VU meters. The specification for the AL range is based on BS6840 : Part 17, IEC 268-17 : 1990, but does not fully meet the dynamic range characteristics.

The AL-WF meters are suitable for rear of panel mounting, together with bezel, with a rear zero adjust and tab terminals as standard, except for AL20SQ which is front-mounted. Top illumination kits are available as optional accessories.

AL20SQ, which is a front-mounted, ‘vintage’ look meter, with rounded corner bezel, comes complete with 150mm flying leads and back mounted external LED illumination, (back mounted Festoon lamp or internal mounted LED illumination options available on specific request).

The AL-RETRO meters are suitable for front of panel mounting, and feature the distinctive ‘vintage retro’ stylings of the AL20SQ. The casing is black ABS, with beige scale, with a rear zero adjust and 12V LED illumination as standard. AL15 has flying leads, AL19 has 6.3mm tab terminals.

Type Panel cutout Bezel Depth from front of panel
AL19WF 47mm x 24mm 49mm x 27mm 41mm
AL29WF 80mm x 37mm 83mm x 42mm 43mm
AL39WF 98mm x 46mm 101mm x 51mm 44mm
AL20SQ-Retro 55mm diameter 57.1mm x 57.1mm 40.2 mm
AL15-Retro 27mm diameter 36.5mm x 36.5mm 32.8mm
AL19-Retro 27mm diameter 46.3mm x 42.3mm 31.0mm excl. tabs
