Shure SLX-D professional digital wireless UHF systems have been designed for use in lecture halls and houses of worship where RF stability is required. With a choice of systems using either handheld microphone, bodypack transmitter, desktop or rackmount receiver, SLX-D also caters for live music performance.
Usage Note: Licensing and legal use information for radiomic equipment in this product group is applicable to the UK only. Customers should check with the relevant regulatory body for the territory the equipment is to be used in prior to purchase to ensure appropriate legal usage and local environmental restrictions.
SLXD1 Transmitter, Bodypack
Manufactured from PC (Polycarbonate) and ABS (Acrylonitrile Butadiene Styrene) plastic, SLXD1 belt pack transmitter has many of the features the handheld transmitter offers, however has a fixed whip antenna and 4-pin TA4F connector for use with optional WA302, WA304, WA310, cables, WA360 in-line audio mute switch, or compatible lavalier microphones. SLXD1 has charging contacts for docking and charging with optional SBC203 battery charger, and can be powered using either 2x AA battery cells or a single SB903 rechargeable lithium battery pack. When the SB903 lithium-ion battery is employed, the user gains access to battery charge status in hours and minutes, along with battery life and health status.
Operating range: 100m without barrier. Display: OLED. Power source: 2x AA lithium/alkaline batteries. Battery life: 8h, alkaline. Dimensions (H x W x D): 98 x 68 x 25.5mm. Weight: 89g.
SLXD2 Transmitter, Handheld
SLXD2 handheld transmitter is manufactured from metal for durability and offers interchangeable mic capsules including SM58, BETA58a, KSM8, BETA87a amongst others. This handheld transmitter is able to transmit a frequency range of 20Hz to 20kHz with flat response, however each mic capsule offers a different frequency response curve. Usage is up to eight hours continuous with 2x AA alkaline batteries, or a single SB903 lithium battery pack can be used to gain monitoring information including battery health, status, and remaining charge in hours and minutes. External charging contacts on the base of the microphone allow the recharging of the SB903 batteries when used with the compatible Shure SBC203 charging unit. Like the SLXD1, the SLXD2 offers OLED screen that shows important information including group/channel and frequency. Lockout functions are accessible by navigating the user menu.
Available versions
SLXD2/SM58 with cardioid SM58 capsule
SLXD2/SM86 with cardioid SM86 capsule
SLXD2/B58 with cardioid Beta 58a capsule
SLXD2/B87A with supercardioid Beta 87a capsule
SLXD2/K8B with cardioid KSM8 capsule
Operating range: 100m without barrier. Display: OLED. Power source: 2x AA alkaline batteries or single SB903 lithium battery pack. Dimensions (D x L): 37.1 x 176mm Weight: 147g.
Shure microphone clamps are supplied as standard with a 5/8 inch thread. 5/8 inch to 3/8 inch adapters are available separately (stock code 53-217).
SLXD3 Transmitter, Plug-on
Shure SLXD3 plug-on wireless transmitter converts any XLR source to wireless, normally in conjunction with a dynamic and condenser microphone connected via the patented locking ring. SLXD3 sends 24-bit digital audio from any XLR source to an SLXD4 or SLXD5 digital wireless receiver via a 'rock-solid' RF connection. IR Sync is employed to pair the transmitter quickly with the SLX-D wireless receiver. A bright OLED screen displays battery life in hours and minutes when used with the optional SB903 rechargeable Lithium-Ion battery cell.
SLX3 can provide +12 to +48V phantom power for use with connected condenser microphone, whilst up to 8 hours use can be achieved using 2x AA batteries or a single, optional SB903 rechargeable battery cell. With a regional dependant tuning band 44MHz, and 32 available channels per frequency band, SLXD3 can operate up to 10 compatible systems per 6MHz TV band; or 12 systems per 8 MHz band.
Included accessories: Leather protective sleeve with integrated celt clip, zippered carrying pouch, 2x AA Alkaline battery cells.
Optional accessories: SB903 Lithium-Ion battery cell, SBC203 charging dock.
Frequency range: 20Hz - 20kHz. Power: 1mW/10mW/30mW switchable, region dependant. Phantom power: 7mA maximum, +48V; 15mA maximum; +12V. Maximum input level: 20.5dBV, -12dB Pad; 8.5dBV, 0dB; -3. dBV, +12dB. Dimensions (W x D x H): 41 x 41 x 126mm. Weight: 200g
SLXD5 Receiver, Portable
SLXD5 is a 'rugged' metal constructed, single-channel portable wireless receiver that provides 24-bit digital audio clarity, efficient long-range UHF transmission and easy-to-use setup features. SLXD5 has been designed for use on top of a camera or in an audio bag. The user is able to scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A bright OLED screen displays battery life in hours and minutes when used with the optional SB903 rechargeable Lithium-Ion battery. With a regional dependant tuning band 44MHz, and 32 available channels per frequency band, SLXD5 can operate up to 10 compatible systems per 6MHz TV band; or 12 systems per 8 MHz band. Dual 3.5mm jack outputs including a headphone monitor out and switchable line/mic output allow the user to connect to camera, recorder, or mixing device.
Included accessories: Zippered carrying pouch, WA311 non-conductive cold shoe mount, 2x AA Alkaline battery cells, 1x locking 3.5mm - 3-pin XLR cable, 1x locking 3.5mm audio extender cable.
Optional accessories: WA301 silicone cover, WA311 non-conductive cold shoe mount, SBC-DC-903 DC battery eliminator kit, SB903 Lithium battery cell, SBC203 charging dock.
Spurious rejection: Greater than 75dB, typical. RF impedance: 50ohms. Frequency range: 20Hz - 20kHz, +1/-3dB. Audio impedance: 450ohm, balanced mono line; 240ohm, balanced mono mic; 400ohm, dual mono line; 200ohm, dual mono mic. Dimensions (W x D x H): 68 x 25.3 x 107mm. Weight: 182g
SLXD4 Receiver, Single channel
One of two receivers in the SLX-D range, SLXD4 is a desktop, single channel receiver that can be mounted in a 1U, 19-inch format by using the included mounting bracket kit. The user can operate up to thirty-two compatible systems in each 44MHz band block, using infrared pairing for speed of setup, or via Ethernet control for multiple setups. Features such as 120dB dynamic range and ‘digital predictive switching diversity’ – a process that allows the receiver to select the best receiving channel from channels A and B; are included on the SLXD4 receiver.
The front facing panel of the SLXD4 receiver has all status identifying tools including a flashing/solid LED for sync status, and visual display showing both receiver and linked transmitter settings along with menus for adjustment. Power button, control knob, sync and exit buttons are also located on the front facing panel, along with an infrared port for syncing with selected transmitter.
The rear facing panel of the receiver houses all audio and data connectivity including BNC connectors for antenna A and B, DC power supply input, Ethernet port with associated LED for status, and audio outputs on both balanced 3-pin XLR and balanced 6.35mm jack. Rack mounting fixing is provided to fit 19-inch racking.
Frequency band: 606-650MHz (K59). Audio frequency response: 20-20kHz. Audio output: balanced 3-pin XLR, 150ohm mic, 400ohm balanced line, 200ohm unbalanced line; balanced 6.35mm jack, 1.3kohm balanced, 670ohm unbalanced. Networking: single port Ethernet 10/100Mbps. Network addressing: DHCP or manual IP address. Power source: 15V DC, 600mA, tip positive. Dimensions (H x W x D): 42 x 197 x 152mm. Weight: 816g.

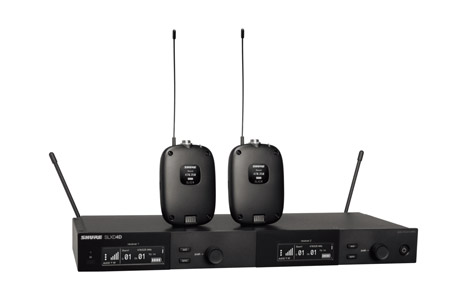

SLXD4D Receiver, Dual-channel
SLXD4D has all the functionality and specifications as the SLXD4 receiver, however it is doubled in terms of channels.
Frequency band: 606-650MHz (K59). Dimensions (H x W x D): 42 x 393 x 152mm. Weight: 1451g.
SLXD4Q+ Receiver, Quad-channel
SLXD4Q+ has the functionality of the SLXD4 receiver, however it is quadrupled in terms of channel count. The receiver operates over 138MHz wideband range, or 44MHz when used with narrowband transmitters.
Frequency band: 606-694MHz (K55). Dimensions (H x W x D): 42 x 393 x 152mm. Weight: 1750g.
SLXD4QDAN+ Receiver, Quad-channel, Dante
SLXD4QDAN+ has all the functionality and specifications as the SLXD4Q receiver, however it incorporates Dante primary and secondary audio connections for redundancy. The Dante receiver carries Dante digital audio and control signals for audio distribution, monitoring, and recording, along with enabling remote device control via Shure Wireless Workbench software.
Frequency band: 606-694MHz (K55). Dimensions (H x W x D): 42 x 393 x 152mm. Weight: 1750g.
