SHURE P4R PERSONAL MONITOR RECEIVER

Stock code
74-5885
Brand
Shure
Model number
  • P4R
SHURE P4R PERSONAL MONITOR RECEIVER
SHURE P4R PERSONAL MONITOR RECEIVER

Order

VAT / Delivery
No longer manufactured. Please contact Technical Support for alternatives.
RoHS Compliant

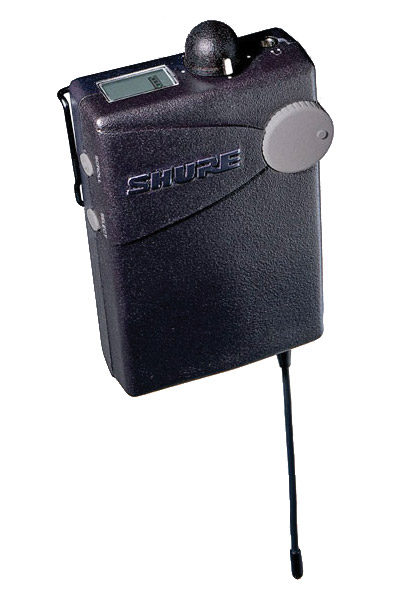

P4R Wireless Bodypack Receiver

PSM 400 Wireless Bodypack Receiver

Features

P4R Wireless Bodypack Receiver

Key Features
  • High-impact plastic chassis
  • Frequency locator
Operating Controls
  • Operating mode (Stereo, Mono, MixMode)
  • Volume knob
  • Balance
  • Defeatable limiter
  • High-frequency boost
  • Frequency select
Backlit LCD Indicators
  • RF reception
  • Battery life
  • Operating mode
  • Frequency

Specifications

RF Frequency Range
722 to 952 MHz (country dependent)
Operating Range
300 feet (environment dependent)
Audio Frequency Response
50 Hz to 12 kHz (+/- 3 dB)
RF Sensitivity
1 mV typical
Image Rejection
55 dB typical
Spurious Rejection
60 dB typical
Squelch Threshold
4.5 mV typical
Antenna
attached whip
Power Requirements
9 V alkaline battery
Battery Life
up to 8 hours, volume dependent
Audio Output Connector
3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
Minimum Load Impedance
16 ohms
Net Weight
125 g (.28 lbs.)
Overall Dimensions
82.6 mm X 63.5 mm X 26.2 mm (3 1/4 in. X 2 1/2 in. X 1 1/32 in.)

User Guides

SHURE PERSONAL MONITOR SYSTEMS - PSM400 Series

PSM 400 wired systems make professional quality personal monitoring available to more performers than ever before. Each system includes 'everything a working musician or band needs to receive consistent personal monitor mixes'. Designed for performers who are 'tired of the limits of floor wedges', the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. The PSM 400 is right for, 'rehearsal through performance, for almost everyone who performs live music'.
