SHURE P4HW PERSONAL MONITOR BELTPACK Wired

Stock code
74-5886
Brand
Shure
Model number
  • P4HW
SHURE P4HW PERSONAL MONITOR BELTPACK Wired
SHURE P4HW PERSONAL MONITOR BELTPACK Wired

Order

VAT / Delivery
No longer manufactured. Please contact Technical Support for alternatives.
RoHS Compliant

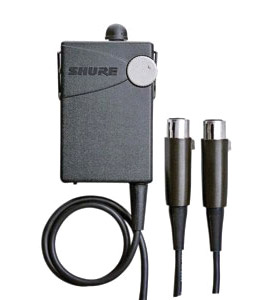

P4HW Wired Bodypack Personal Monitor

PSM 400 System Components

PSM400 Hardwired Bodypack.

Features

P4HW Wired Bodypack

Hardwired Bodypack

Key Features
  • Attached input cable
  • High-impact plastic chassis
Operating Controls
  • Operating mode (Stereo, Mono, MixMode)
  • Volume knob
  • Balance knob
  • Defeatable limiter
  • High-frequency boost
  • -15 db Pad
Backlit LCD Indicators
  • Battery life
  • Input level
  • Operating mode

Specifications

Frequency Response
20 to 20,000 Hz
Total Harmonic Distortion
< .1% (measured at -10 dBu out)
Channel Separation
35 dB (minimum)
Signal-to-noise ratio
85 dB (minimum)
Maximum Output Level
+5 dBu at 1% THD
Maximum Input Level
+7 dBu, input pad OFF
+22 dBu, input pad ON
Actual Input Impedance
> 40 kilohms
Audio Output Connector
3.5 mm stereo (left=tip, right=ring, ground=sleeve)
Power Requirements
9 V Alkaline battery
Battery Life
Up to 8 hours, volume dependant
Phantom Power Protection
Up to 60 VDC

User Guides

SHURE PERSONAL MONITOR SYSTEMS - PSM400 Series

PSM 400 wired systems make professional quality personal monitoring available to more performers than ever before. Each system includes 'everything a working musician or band needs to receive consistent personal monitor mixes'. Designed for performers who are 'tired of the limits of floor wedges', the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. The PSM 400 is right for, 'rehearsal through performance, for almost everyone who performs live music'.
