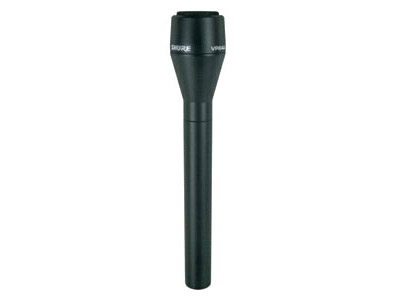

SHURE VP64AL MICROPHONE Handheld, omnidirectional, dynamic, blk, long

Stock code
74-6237
Brand
Shure
Model number
  • VP64AL
SHURE VP64AL MICROPHONE Handheld, omnidirectional, dynamic, blk, long
SHURE VP64AL MICROPHONE Handheld, omnidirectional, dynamic, blk, long

Order

VAT / Delivery
$216.15
each (ex. VAT)
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
RoHS Compliant

VP64A and VP64AL

The VP64A and VP64AL are high-output omnidirectional handheld dynamic microphones designed for professional audio and video production. They combine exceptional performance and comfortable feel with a handsome on-camera appearance.

VP64A - Black, 7-7/8 inch (200 mm) handle, cable not included.

VP64AL - Black, 9-5/8 inch (244 mm) extended handle, cable not included.

Features

The VP64A and VP64AL are identical except for handle length. The 200 mm (7-7/8 inch) long VP64A is ideal for close-up use and can be used outside as well as indoors. The VP64AL is well-suited to location interviews, sports broadcasting, and other situations where the 244 mm (9-5/8 inch) length is an advantage.

The omnidirectional pickup pattern provides uniform pickup on or off axis, eliminating the need for critical microphone positioning. The VP64A series also features a tailored frequency response with an upper midrange presence rise that adds crispness and clarity to speech. The cartridge utilizes a neodymium magnet for higher output and increased signal-to-noise ratio. An internal rubber isolation mount protects the microphone cartridge and minimizes handling noise. A water-resistant mesh grille allows the microphone to be used during the most challenging weather conditions. The supplied windscreen further reduces "pop" and wind noise.

  • Neodymium magnet for increased output and maximized signal-to-noise ratio
  • Tailored frequency response with mid-range presence rise for optimum speech clarity
  • Omnidirectional polar pattern eliminates need for critical microphone positioning
  • Internal isolation mount for low handling noise
  • Water-resistant mesh grille repels water under challenging weather conditions
  • Supplied windscreen for reduced pickup of pop and wind noise
  • Comfortable feel
  • Handsome appearance; ideal for on-camera applications
  • Legendary Shure ruggedness
  • Frequency response: 50 to 12,000 Hz

Specifications

Type
Dynamic
Frequency Response
50 to 12,000 Hz
  view larger
Polar Pattern
Omnidirectional
Impedance
Low (300 ohms actual)
Output Level (at 1,000 Hz)
Open Circuit Voltage: -51.5 dBV/Pa (2.7 mV)*
*1 Pascal = 94 dB SPL
Phasing
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Dimensions
See User Guide
Net Weight
VP64A: 158 g (5.6 oz)
VP64AL: 179 g (6.33 oz)

User Guides

SHURE MICROPHONES - Handheld - Interview

A selection of dynamic, omni-directional microphones, designed for professional applications. Some models are of extended length to help an interviewer place the microphone closer to the interviewee.

VP64A, VP64AL

These are high-output, omni-directional, handheld, dynamic microphones, designed for professional audio and video production. They combine 'exceptional performance and comfortable feel with a handsome on-camera appearance.' The VP64AL version has an 'extended handle'.

Both are supplied with an A57F stand adapter and a windscreen. The A53M isolated adapter is also suitable, see SHURE MICROPHONE ACCESSORIES

VPH

This long microphone handle is terminated with 3-pin XLR and is compatible with Shure RPW series capsules, see SHURE WIRELESS SYSTEMS - Accessories and Spares, giving the user a choice of interchangeable capsules to suit a variety of applications.

Included accessories: 1x cap plug, 1x WA371 wireless microphone clip, 1x zipper bag
Optional accessories: Shure WA653 flag extender kit, Shure UAMS modular mute switch.

Required power: 11-52 VDC phantom power. Dimensions (HxWxD): 177.8 x 37.1 x 37.1mm. Weight: 520g

SM63, SM63L, SM63LB

The SM63 series of dynamic omni-directional microphones are 'designed for professional applications where performance and appearance are critical'. 'Their smooth, wide frequency response is tailored for optimum speech intelligibility, and includes a controlled low-frequency roll-off for reduced pick-up of stand and wind noise. A built-in hum-bucking coil makes the microphones virtually immune to strong hum fields, such as those produced by studio lighting'. The three models differ only in length and colour. The SM63 'is designed for handheld use on stage and in broadcast, recording, and television studios'. The SM63L and SM63LB are 'ideal for remote interviews, sports broadcasts, and other situations where longer microphones are desirable'.

Both are supplied with an A57F stand adapter and a windscreen. The A53M isolated adapter is also suitable, see SHURE MICROPHONE ACCESSORIES.
