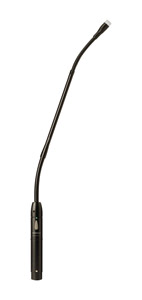

SHURE MX412S/N MICROPHONE 30.5cm gooseneck, no capsule, preamplifier base, mute switch, LED

Stock code
74-6371
Brand
Shure
Model number
  • MX412S/N
SHURE MX412S/N MICROPHONE 30.5cm gooseneck, no capsule, preamplifier base, mute switch, LED
SHURE MX412S/N MICROPHONE 30.5cm gooseneck, no capsule, preamplifier base, mute switch, LED

Order

VAT / Delivery
$268.80
each (ex. VAT)
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
RoHS Compliant

Also bought

Customers also bought…

MX412 and MX418 Microflex Standard Gooseneck Microphones

Microflex Standard Gooseneck microphones bring a whole new meaning to the word flexible with their fully adjustable gooseneck. Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer wide frequency response and accurate sound reproduction for a wide variety of applications, such as houses of worship, courtrooms and conference centers. Plus, the condenser cartridges fit every model in the Microflex product line for enhanced convenience and consistent sound.

Features

Microflex Gooseneck microphones are available in four models with a variety of heights and mounting styles to choose from. One model includes a silent mute switch with LED indicator, a Shure Microflex exclusive. And every Microflex Gooseneck features high sensitivity and balanced, transformerless output for maximum resistance to electromagnetic hum and RF interference, even over long cable runs.

The polar pattern of the cartridge is indicated by the model number suffix:

C = Cardioid, S = Supercardioid, N = No Cartridge

Gooseneck Microphones

MX412/C, MX412/S, MC412/N

 304.8 mm (12 in.) gooseneck Attached XLR Preamp, Shock Mount, Flange Mount, Snap-Fit Foam Windscreen

MX418/C, MX418/S, MX418/C

 457.2 mm (18 in.) gooseneck Attached XLR Preamp, Shock Mount, Flange Mount, Snap-Fit Foam Windscreen

MX412S/C, MX412S/S, MX412S/N

 304.8 mm (12 in.) gooseneck Attached XLR Preamp, Shock Mount, Flange Mount, Snap-Fit Foam Windscreen, Mute Switch, LED Indicator

MX418S/C, MX418S/S, MX418S/N

 457.2 mm (18 in.) gooseneck Attached XLR Preamp, Shock Mount, Flange Mount, Snap-Fit Foam Windscreen, Mute Switch, LED Indicator

MX412SE/C, MX418SE, MX418SE/N

 304.8 mm (12 in.) gooseneck In-Line Preamp, Shock Mount, Flange Mount, 10-ft Side-Exit (or Bottom-Exit) Cable, Snap-Fit Foam Windscreen

MX418SE/C, MX418SE/S, MX418SE/N

 457.2 mm (18 in.) gooseneck In-Line Preamp, Shock Mount, Flange Mount, 10-ft Side-Exit (or Bottom-Exit) Cable, Snap-Fit Foam Windscreen

Desktop Gooseneck Microphones

MX412D/C, MX412D/S, MX412D/N

 304.8 mm (12 in.) gooseneck Desktop Base with 10 foot Cable, Logic Functions, Programmable Switch and LED Indicator, Snap-Fit Foam Windscreen

MX418D/C, MX418D/S, MX418D/D

 457.2 mm (18 in.) gooseneck Desktop Base with 10 foot Cable, Logic Functions, Programmable Switch and LED Indicator, Snap-Fit Foam Windscreen
  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges provide the right polar pattern for every application
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Shock mount provides over 20 dB isolation from surface vibration noise
  • Locking flange mount for permanently securing microphone to lecterns, pulpits, or conference tables
  • Snap-fit foam windscreen
  • Programmable on/off switch and LED on/off indicator (MX412D/MX418D)
  • New brighter LED improves visibility under strong ambient lighting (MX412D/MX418D)
  • Logic input and output terminals for remote control or use with automatic microphone mixers (MX412D/MX418D)
  • Supplied shock mount for more than 20 dB isolation from surface transmitted noise (MX412SE/MX418SE)
  • Supplied threaded flange mount for permanently securing the microphone to a lectern, pulpit, or conference table (MX412SE/MX418SE)

Specifications

MX412, MX418, MX412S, MX418S Spec Sheet (pdf)

MX412SE, MX418SE Spec Sheet (pdf)

MX412D, MX418D Spec Sheet (pdf)

Frequency Response

     50 to 17,000 Hz

       view larger

Output Impedance

     180 ohms actual (EIA rated at 150 ohms)

Sensitivity (At 1,000 Hz, open circuit voltage*)

     Cardioid: -35.0 dBV/Pa (17.8 mV)

     Supercardioid: -33.5 dBV/Pa (21.1 mV)

     Omnidirectional: -27.5 dBV/Pa (42.2 mV)

     All values -12 dB at 0 gain; *1 Pascal = 94 dB SPL

Maximum SPL (1 kHz at 1% THD, 1 k ohm load)

     Cardioid: 124.2 dB

     Supercardioid: 122.7 dB

     Omnidirectional: 116.7 dB

     All values +6 dB at 0 gain

Equivalent Output Noise (A-weighted)

     Cardioid: 28.0 dB SPL

     Supercardioid: 26.5 dB SPL

     Omnidirectional: 20.5 dB SPL

Signal to Noise Ratio (referenced at 94 dB SPL)

     Cardioid: 66.0 dB

     Supercardioid: 67.5 dB

     Omnidirectional: 73.5 dB

Dynamic Range at 1 k ohm load

     96.2 dB

     100 dB at 0 gain

Common Mode Rejection

     45.0 dB minimum

Preamplifier Output Clipping Level (1% THD)

     -6.0 dBV (0.5 V)

     -12 dBV at 0 gain

Polarity

     Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.

Power Requirements

     11 to 52 Vdc phantom, 2.0 mA

Environmental Requirements

     Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)

     Relative Humidity: 0 to 95%

Dimensions

     See User Guide.

User Guides

SHURE MICROPHONES - Microflex gooseneck types

Flexible in more ways than one, Microflex Miniature Gooseneck microphones deliver 'unsurpassed style and performance for conference rooms and similar applications'. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, 'it’s easy to get the perfect fit for your conferencing installation. Fully compatible with SLX wireless systems'.

Microflex standard gooseneck microphones bring a 'whole new meaning to the word flexible with their fully adjustable gooseneck'. Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer 'wide frequency response and accurate sound reproduction for a wide variety of applications', such as houses of worship, courtrooms and conference centres.

In addition, condenser cartridges fit every model in the Microflex product line for enhanced convenience and consistent sound. The polar pattern of the cartridge supplied is indicated by the model number suffix: C = Cardioid, S = Supercardioid, O= Omnidirectional, N= No Cartridge Supplied (to purchase separately see R183B, R184B and R185B for black or R183W, R184W and R185W for white capsules).
