LD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHz

Stock code
76-0927
Brand
LD Systems
Model number
  • ROADBUDDY
  • ROADBUDDY 10 HBH 2
  • LDRBUD10HBH2
LD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHz
LD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHzLD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHzLD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHzLD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHzLD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHzLD SYSTEMS ROADBUDDY 10 HBH 2 PORTABLE PA Battery powered, 1x handheld/1x headset mic, 863-865MHz

Order

VAT / Delivery
$965.47
each (ex. VAT)
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
RoHS Compliant

LD SYSTEMS PORTABLE PA SYSTEMS - Roadbuddy

LD Systems’ range of portable, battery powered are supplied with either handheld or headworn wireless transmitter and integrated wireless receiver. This range include MP3, WAV and WMA playback via wired connection, Bluetooth, USB media, or inserted SD card.

Systems are available in three frequency variants:

863 – 865MHz Standard systems
584 – 607MHz B5 systems
655 – 679MHz B6 systems

ROADBOY – 25W, CD/SD/USB media playback

LD Systems Roadboy 65 is an active loudspeaker with media player designed for small events, schools, places of worship, and conferences. The 6.5-inch low frequency driver offers a maximum output of 110dB SPL and a frequency response of 80Hz to 15kHz. Roadboy 65 can be powered via included AC mains power supply or via internal rechargeable battery.

A single wireless receiver is incorporated into the rear facing panel of the receiver, with a display showing the selected frequency, and LEDs to indicate audio signal reception and radio frequency reception. Up/Down buttons enables the user to select the desired radio channel, whilst ‘mute level’ controller allows for squelch adjustment and a combined power/volume controller allows for further adjustment. An ‘ASC’ button synchronises the receiver with the transmitting device when pressed and within infrared transmission range.

The inbuilt media player includes CD slot, USB input and SD card input for playback from removable media. Controls on the active speaker include 2-channel EQ (bass/treble), line level adjustment for dual RCA (phono) input, mic level adjustment for 6.35mm microphone level input, and master volume controller.

Variants
Roadboy 65 includes a single wireless handheld microphone transmitter.
Roadboy 65 HS includes a single headworn microphone with beltpack transmitter.
Optional accessories
Roadboy 65 SP is an optional 4ohm passive slave speaker that can used as an external speaker or a secondary speaker.
Roadboy 65 B is an optional protective carry case for all Roadboy 65 and Roadboy 65 HS variants.

Power output: 25W, RMS; 100W, peak. Frequency response: 80Hz – 15kHz. SPL: 93dB, 1w/1m; 110dB, maximum. Batteries: 12V, 2.6AH rechargeable. Operating voltage: 100-240V AC, external; 15 – 18V DC, 3A. Dimensions (WxHxD): 200 x 300 x 230mm. Weight: 6kg.

ROADMAN – 80W, CD/SD/USB media playback

LD Systems Roadman 102 is an active loudspeaker with media player designed for small events, schools, places of worship, and presentations. The 10-inch low frequency driver along with 1-inch high frequency driver offer a maximum output of 115dB SPL and a frequency response of 70Hz to 16kHz – giving an extended bass and treble response in comparison to the Roadboy 65. Roadman 102 can be powered via included AC mains power supply or via internal rechargeable battery.

A single wireless receiver is incorporated into the rear facing panel of the receiver, with a display showing the selected frequency, and LEDs to indicate audio signal reception and radio frequency reception. Up/Down buttons enables the user to select the desired radio channel, whilst ‘mute level’ controller allows for squelch adjustment and a combined power/volume controller allows for further adjustment. An ‘ASC’ button synchronises the receiver with the transmitting device when pressed and within infrared transmission range.

The inbuilt media player includes CD slot, USB input and SD card input for playback from removable media. Controls on the active speaker include 2-channel EQ (bass/treble), line level adjustment for dual RCA (phono) input, mic level adjustment for both XLR/6.35mm microphone level inputs, and master volume controller. A further controller titled ‘Slave’ can be used to control the volume of the optional Roadman 102 SL speaker, with switching to denote master or slave link setting. Two speaker outputs are provided for use with the optional Roadman 102 SP passive slave speaker. The 4ohm ‘Switched’ output connection allows the user to exclusively play audio from the slave speaker with the main unit muted; and the 8ohm ‘Unswitched’ output connection allows the audio to emit from both main and slave speaker.

Variants
Roadman 102 includes a single wireless handheld microphone transmitter
Roadman 102 HS includes a single headworn microphone with beltpack transmitter
Optional accessories
Roadman 102 SL is an optional class D active slave speaker that can be daisy-chained, using the main Roadman 102 as the controlling unit.
Roadman 102 SP is an optional 8ohm passive slave speaker that can used as an external speaker or a secondary speaker.
Roadman 102 BAG is an optional protective carry case for all Roadman 102 and Roadman 102 HS variants.

Power output: 80W, RMS; 320W, peak. Frequency response: 70Hz – 16kHz. SPL: 93dB, 1w/1m; 115dB, maximum. Batteries: 12V, 5AH rechargeable. Operating voltage: 200-250V AC, external. Dimensions (WxHxD): 355 x 610 x 315mm. Weight: 19kg.

ROADBUDDY – 120W, Bluetooth/CD/SD/USB media playback

LD Systems Roadbuddy is a full-range, portable, AC/battery powered, PA system that includes a 16-channel handheld wireless microphone with automatic tuning. Roadbuddy 10 PA also has a built-in media player that can read, support and play MP3, WAV and WMA files (FAT16/32), directly from the SD card or USB slots on the rear panel, or stream directly from a connected Bluetooth device within a range of 10m. Roadbuddy 10 models have moulded speaker stand mounts, compatible with 35mm speaker stands.

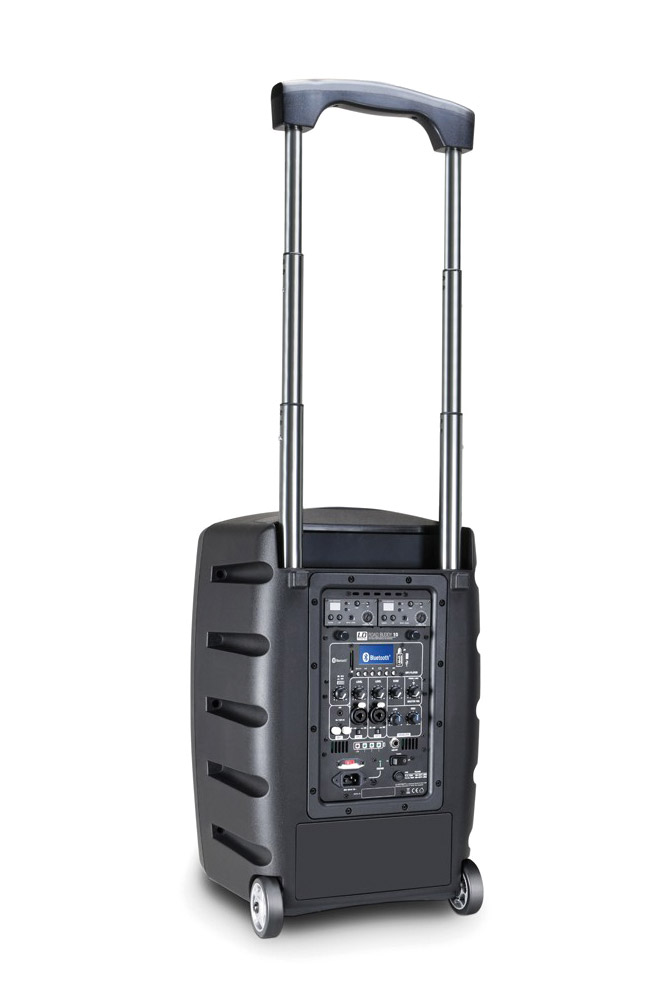

There are three input channels available in addition to the inbuilt UHF receiver; Channel 1 can be used to connect a stereo device such as CD player, smart phone or media playing device, with input options of single stereo 3.5mm jack socket or dual RCA phono socket inputs. A switch situated above the channel inputs allow the user to switch between the auxiliary source or the internal MP3 media player. Channels 2 and 3 can be used as microphone or line by using the 6.3mm Jack/XLR combination inputs and the line/mic switch, while an ‘Echo’ control allows the global application of effect to the wireless microphone channel and input channels 2 and 3. A 6.3mm jack line out socket is provided to send the global signal, controlled by the master volume control, to a separate amplified speaker for additional dispersion.

Powered by an internal Class D amplifier 2-way Roadbuddy 10 can produce 120W RMS (480W peak) for up to 8 hours. The 10-inch woofer and 1-inch high-frequency compression-driver produce a frequency response of 55Hz to 18kHz, and two-band equalisation gives the user the option of fine-tuning the output signal. A 4-stage LED display shows the remaining internal battery life.

Wheels are integrated into the bottom-rear edge for easy transportation.

Variants
Roadbuddy 10 includes a single wireless handheld microphone transmitter.
Roadbuddy 10 HS includes a single headworn microphone with beltpack transmitter.
Roadbuddy 10 HHD 2 includes two wireless handheld microphone transmitters.
Roadbuddy 10 BPH 2 includes two headworn microphones with beltpack transmitters.

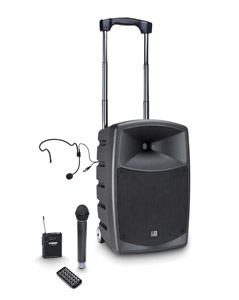

Roadbuddy 10 HBH 2 includes a single handheld transmitter and a single headworn microphone with beltpack transmitter.
Optional accessories
Roadbuddy 10 PC is an optional protective carry cover for all Roadbuddy 10 variants.

Power output: 120W, RMS; 480W, peak. Frequency response: 55Hz – 18kHz. SPL: 96dB, 1w/1m; 115dB, maximum. Batteries: 12V, 5AH rechargeable. Operating voltage: 100-120V, 60Hz; 220-240 V AC, 50Hz, switching. Dimensions (WxHxD): 415 x 525 x 328mm. Weight: 16.5kg.
