LD SYSTEMS CEILING LOUDSPEAKERS
A series of ceiling loudspeakers from LD Systems that have been designed for use in hotels, restaurants, bars, lounges, shopping centres and conference rooms. A series of discreet in-wall speakers are available as an alternative when ceiling access is hampered. See LD SYSTEMS IN-WALL LOUDSPEAKERS.
CICS 52 52 - 5.25-inch, 8ohm
Discontinued

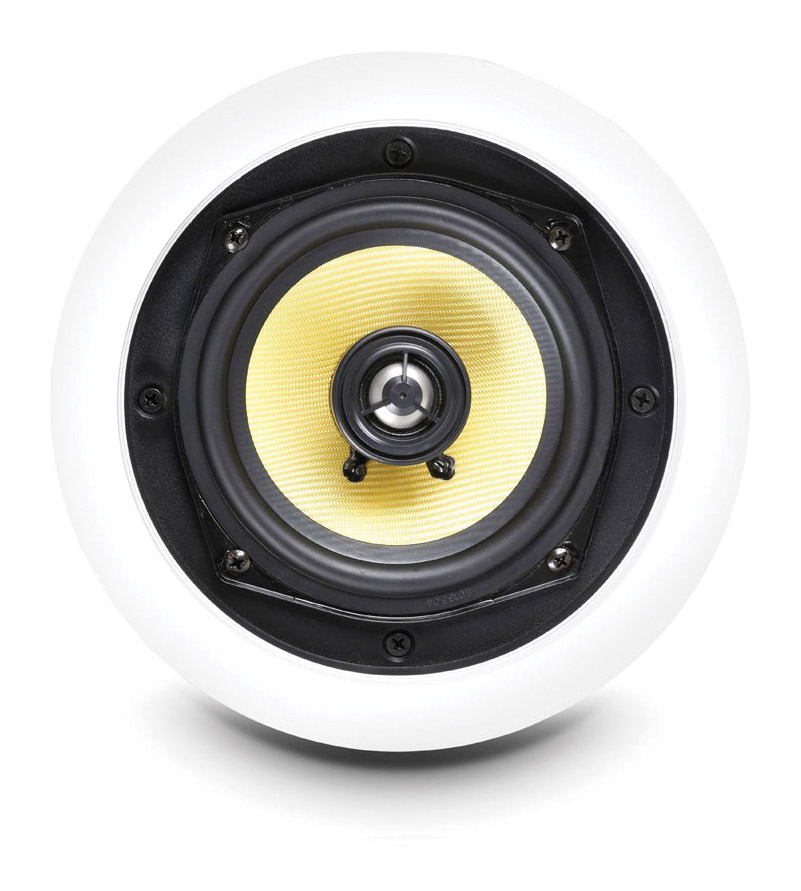

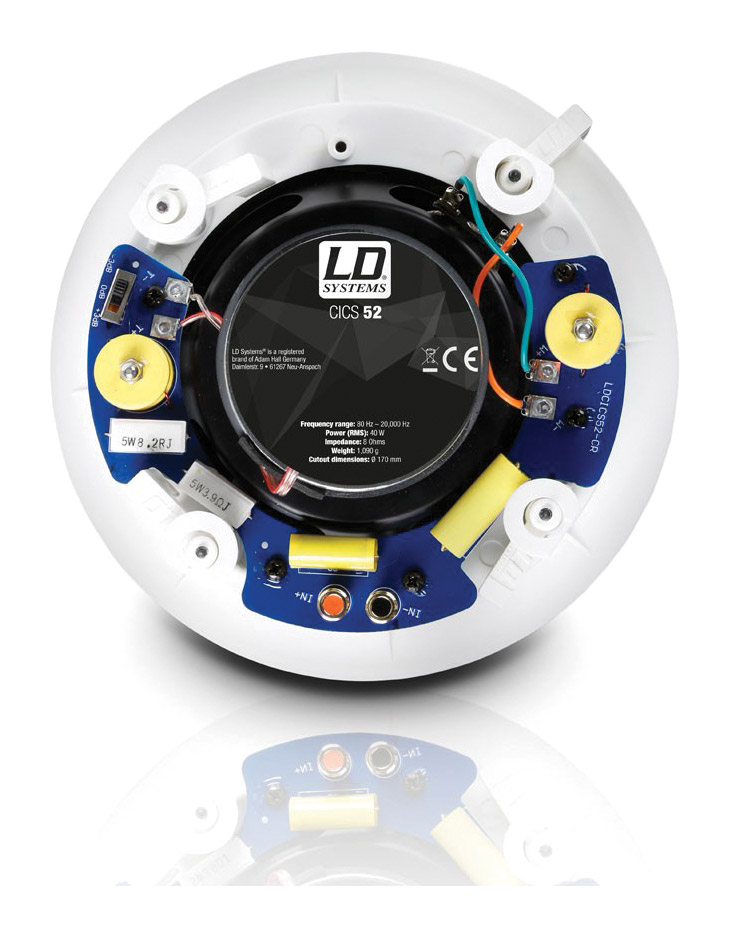

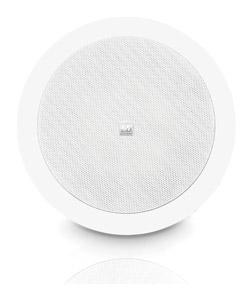

A round, in-ceiling speaker comprises of 5.25-inch woofer and 1.2-inch tweeter in a coaxial arrangement. At 1W/1m CICS 52 produces a sound pressure level of 88dB with a frequency response of 80Hz to 20kHz. At 8ohms the speaker has an RMS rating of 40W. The speaker requires a cut out diameter of 170mm, and a minimum depth of 83mm. The speaker itself measures 202mm in diameter and 92mm in depth including front grille. Weight: 1.09kg
Discontinued
This version has the same attributes as CICS 52, however it has transformer based taps of 12/24/6W for 100V operation.
CICS 62 52 - 6.5-inch, 8ohm
Discontinued
A round, in-ceiling speaker comprises of 6.5-inch woofer and 1.2-inch tweeter in a coaxial arrangement. At 1W/1m CICS 62 produces a sound pressure level of 88dB with a frequency response of 70Hz to 20kHz. At 8ohms the speaker has an RMS rating of 60W. The speaker requires a cut out diameter of 202mm, and a minimum depth of 87mm. The speaker itself measures 233mm in diameter and 97mm in depth including front grille. Weight: 1.49kg
Discontinued
This version has the same attributes as CICS 62, however it has transformer based taps of 12/24/6W for 100V operation.
