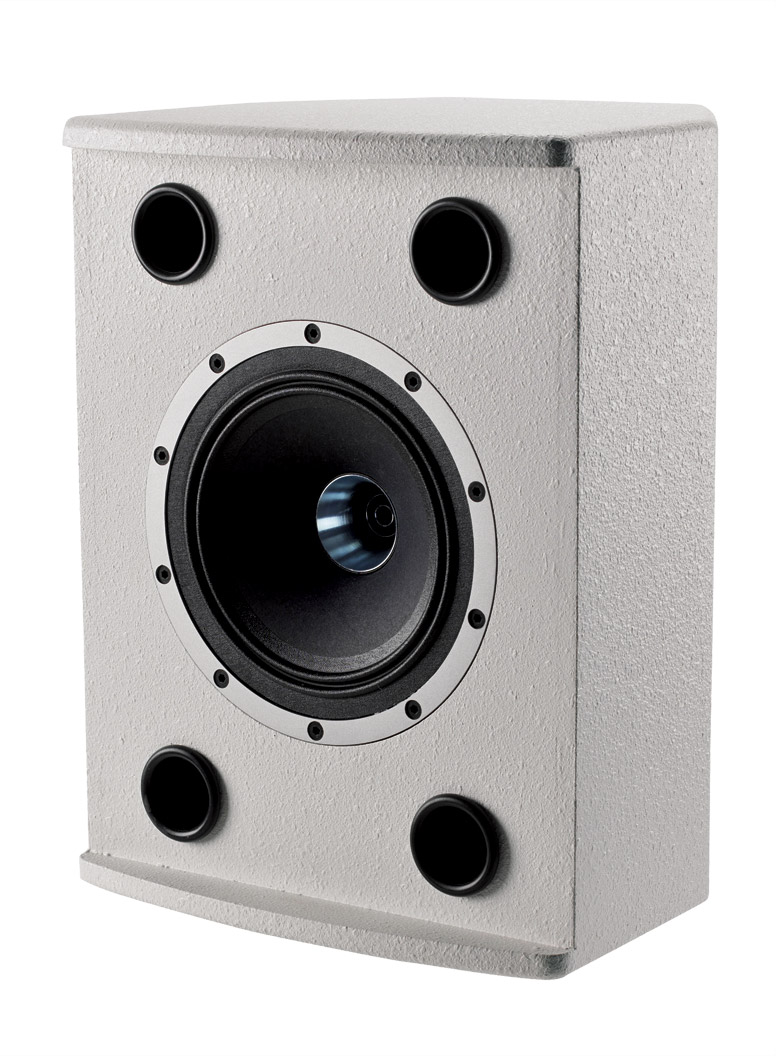

A range of dual-concentric installation loudspeakers for a wide variety of applications, from fill-in and background to main systems for clubs, pubs, theatres, places of worship and conference venues. All models are housed in an asymmetric birch plywood cabinet and are available in black or white textured paint finish with foam grille. Optional hard mesh grille assemblies are available.
V6
Discontinued
A compact loudspeaker housing a 165mm constant-directivity dual-concentric driver and passive crossover. The cabinet has M6 fixings on sides for an optional yoke bracket, and rear fixings for Omnimount series 30.0 brackets. Dispersion: 90 degrees, conical. Neutrik Speakon and 4mm binding-post connections.
Discontinued
A full-range, compact loudspeaker housing a 200mm constant-directivity dual-concentric driver and passive crossover. The cabinet has M10 fixings on sides for an optional yoke bracket, M10 flying points and rear fixings for Omnimount series 30.0 brackets. Can be arrayed with VCB cluster bars. Dispersion: 90 degrees, conical. Dual Neutrik Speakon connectors. Low frequency response can be enhanced by using Tannoy TX1 controller, available to special order. Contact Sales for a quotation.
Discontinued
A full-range loudspeaker housing a high power 300mm constant-directivity dual-concentric driver and passive crossover. The cabinet has M10 fixings for flying points and/or optional yoke bracket. Dispersion: 90 degrees, conical. Dual Neutrik Speakon connectors. Frequency response can be enhanced by using Tannoy TX2 controller, available to special order. Contact Sales for a quotation.
V12HP
A full-range loudspeaker housing a high power 300mm “PowerDual” constant-directivity dual-concentric driver and passive crossover with panel switch for bi-amp (active) operation. Suitable for longer throw or higher power applications, such as large lecture/conference halls and nightclubs. The cabinet has M10 fixings for flying points and/or optional yoke bracket. Dispersion: 75 degrees, conical . Dual Neutrik Speakon connectors.
Discontinued
A full-range loudspeaker, housing a high power 300mm “SuperDual” constant-directivity dual- concentric driver and passive crossover with panel switch for bi-amp (active) operation. Especially suitable for high-quality speech and vocal reproduction in theatres, acoustic music venues, and places of worship. The cabinet has M10 fixings for flying points and/or optional yoke bracket. Dispersion: 75 degrees, conical. Dual Neutrik Speakon connectors. Low frequency response can be enhanced by using Tannoy TX2 controller, available to special order. Contact Sales for a quotation.
Discontinued
A full-range loudspeaker, housing a high power 380mm “PowerDual” constant-directivity dual- concentric driver and passive crossover with panel switch for bi-amp (active) operation. Suitable for large venues, cinemas, and clubs. The cabinet has M10 fixings for flying points and/or optional yoke bracket. Dispersion: 90 degrees, conical. Dual Neutrik Speakon connectors.
Ordering note:
Hard mesh grille assemblies are available separately as required.
Technical specification:
