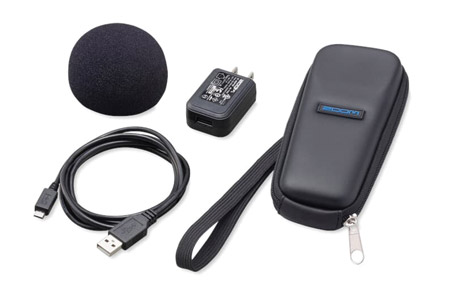

ZOOM SPH-1N ACCESSORY PACK For H1n handy recorder

Stock code
79-2999
Brand
Zoom
Model number
  • SPH-1N
ZOOM SPH-1N ACCESSORY PACK For H1n handy recorder
ZOOM SPH-1N ACCESSORY PACK For H1n handy recorder

ZOOM HANDY RECORDERS

A series of Handy Recorders from Zoom that have been designed for use in broadcast, journalism, live performance, or home recording. With various form factors, these Zoom handheld recorders have different options of channel count, microphone type, internal processing, and recording specifications.

H1 XLR - 32-bit float recording, 2-track, XLR/TRS inputs

H1essential - 32-bit float recording, 2-track, X/Y microphone array

H1N-VP - 2-track, X/Y microphone arrayDiscontinued

Zoom H1n has been designed to create professional quality audio recordings whilst retaining a very compact form. Aimed at broadcast, journalism and live performance applications, H1n has an inbuilt X/Y microphone layout with a maximum SPL of 120dB, to capture stereo sound with sample rates of 44.1, 48, or 96kHz with up to 24-bit resolution. An external microphone can be connected and 'plug-in' power is provided via a 3.5mm, 3-pole, stereo jack socket. This input also accepts stereo line-level.

Recordings are made to microSD/SDHC card as either linear PCM WAV files for higher resolution, or in MP3 format to maximise recording times. A microUSB socket is provided for transfer of audio files to PC or Mac. Once connected, the user can choose to use the H1n as a card reader for file transfer or USB microphone for direct recording or live podcasting.

Recording features including tone generator for calibration, auto-record, pre-record, self-time record, overdubbing, and one-touch record button make recording quicker and less challenging; whilst playback controls include consistent pitch speed control for easier transcribing, voice emphasize filter, and stereo bouncing functionality. A built-in 500mW mono speaker can be used for monitoring during playback.

Two AAA alkaline batteries give up to 10 hours of continuous operation; or included AD-17 AC adapter may be used. The H1n can also operate on USB bus power.

Compatible media types: microSD or microSDHC card, up to 32GB.

Approximate recording times (format vs removable media capacity):

2GB 4GB 8GB 16GB 32GB
MP3, 128kbps 34h 43m 69h 26m 138h 53m 277h 46m 555h 33m
MP3, 256kbps 17h 21m 34h 43m 69h 26m 138h 53m 277h 46m
MP3, 320kbps 13h 53m 27h 46m 55h 33m 111h 06m 222h 12m
WAV, 16bit/44.1kHz 3h 8m 6h 17m 12h 35m 25h 11m 50h 23m
WAV, 24bit/48kHz 1h 55m 3h 51m 7h 42m 15h 25m 30h 51m
WAV, 24bit/96kHz 57m 1h 55m 3h 51m 7h 42m 15h 25m

Included accessories: Padded shell case, microUSB cable, AD-17 power adapter, foam windscreen, 2x AAA batteries, quick start guide.
Optional accessories: SPH-1N Accessory Pack, WSU-1 universal hairy windscreen, HS-1 hot shoe mount, MA-2 tripod to mic stand adapter, AD-17 AC adapter.

Simultaneous recording/playback tracks: 2. Signal processing: 32-bit. Recording media: microSD or microSDHC card, Class 4 or higher, up to 32Gb. Display: 1.25inch, monochrome. Inbuilt microphone: Unidirectional condenser. Gain: Infinite to +39dB. Input impedance: 2kohm. Plug-in power supported: 2.5V. Dimensions (WxDxH): 50 x 137.5 x 32mm. Weight: 60g, without batteries.

H2N - 4-track, 5x internal microphones

H4essential - 32-bit float recording, 4-track, X/Y microphone array

H5 - 4-track, optional mic capsules

H6essential - 32-bit float recording, 6-track, optional mic capsules

H8 - 12-track, optional mic capsules
