DENON WIRELESS AUDIO SYSTEMS - 2.4GHz
Designed for indoor, outdoor or multi-level installation, this range of 2.4GHz, 2-channel wireless audio devices can reduce the need for cabling through walls or ceilings.

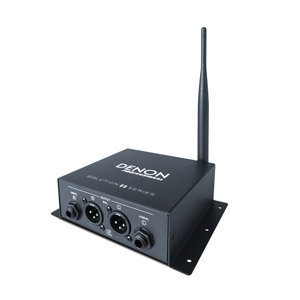

DN-202WR Receiver
Discontinued
This 2-channel wireless audio receiver has been designed to work hand in hand with the DN-202WT transmitter. Multiple receivers may be used with a single transmitter if the audio is required in more than one destination. DN-202WR has a range of ‘up to 30m’ from the source, a frequency response of 20Hz to 20kHz, and the option of either unbalanced 6.3mm jack output or balanced 3-pin XLR output for both ‘L’ (left) and ‘R’ (right) channels.
All outputs are located on the rear facing panel of the unit, whilst the front facing panel features L/R signal LEDs, a blue status LED to signify when the unit is paired with a transmitter, a button to enable pairing, a rotary output level control, and an input for DC 5V, 3A, centre-positive power supply. A fixed but articulating antenna, also located on the front facing panel, enables the user to adjust for best reception.
Signal to noise ratio: Greater than 80dB. THD: Less than 0.1%. Output level: +18dBu. Dynamic range: Greater than 90dB at 1kHz. Crosstalk: Greater than 90dB at 1kHz. Latency: 20ms. Channel: 25. Modulation: GFSK. Bandwidth: 1.8MHz. Receiving frequency: 2.404 – 2.476GHz. Receiver sensitivity: 10dBm. Dimensions (WxDxH): 149 x 117 x 45mm. Weight: 0.6kg.
Discontinued
This has the same physical properties as the DN-202WR, however in place of balanced and unbalanced outputs there are balanced and unbalanced inputs. In addition, the front facing panel of the DN-202WT has a switch for mono/stereo selection.
Signal to noise ratio: Greater than 80dB. THD: Less than 0.1%. Input level: +5dBu. Dynamic range: Greater than 90dB at 1kHz. Crosstalk: Greater than 90dB at 1kHz. Latency: 20ms. Channel: 25. Modulation: GFSK. Bandwidth: 1.8MHz. Receiving frequency: 2.404 – 2.476GHz. Transmission power: 10dBm. Dimensions (WxDxH): 149 x 117 x 45mm. Weight: 0.6kg.
