MUXLAB VIDEO EXTENDERS - Over Coax
MuxLab video extenders over coax are intended for AV system integration, along with home theatre, digital signage, and medical information systems whereby distances of up to 152m are between source and destination.
500465-TX HDMI transmitter, 152m
Discontinued
This video extender has been designed to transfer HDMI signals over a single RG59 coax cable up to 152 metres at 720p resolution or 76 metres at 1080p resolution. 500465-TX can also be utilised as a HDMI 1.3a to SDI converter providing support for 3G-SDI, HD-SDI, and SD-SDI.
Resolutions supported include 480i, 576i, 720p, 1080i, 1080p/23.98/24/25/29.9/30/50/59.94/60.
The rear facing panel features two 75ohm female BNC output connectors with corresponding green sync LEDs that display activity. The front facing panel hosts a single HDMI input along with sync and power LEDs. There is also a single 5V DC power input for connecting the included 100-240V power supply.
*based on a maximum 2m HDMI cable at each end
Dimensions: 120 x 90 x 30 (DxWxH) mm. Weight: 0.59kg

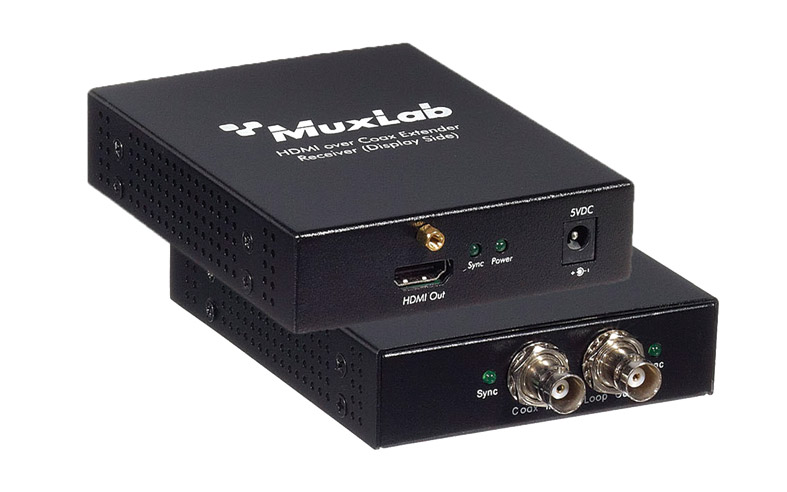

500465-RX Receiver
Discontinued
This unit is designed to work in conjunction with 500465-TX HDMI transmitter. 500465-RX converts the SDI signal received over coax cable back to HDMI.
The rear facing panel features two 75ohm female BNC connectors - one for input, and one for cascade output to run multiple displays. Green sync LEDs display activity. The front facing panel hosts a single HDMI output along with sync and power LEDs. There is also a single 5V DC power input for connecting the included 100-240V power supply.
Dimensions: 120 x 90 x 30 (DxWxH) mm. Weight: 0.59kg
