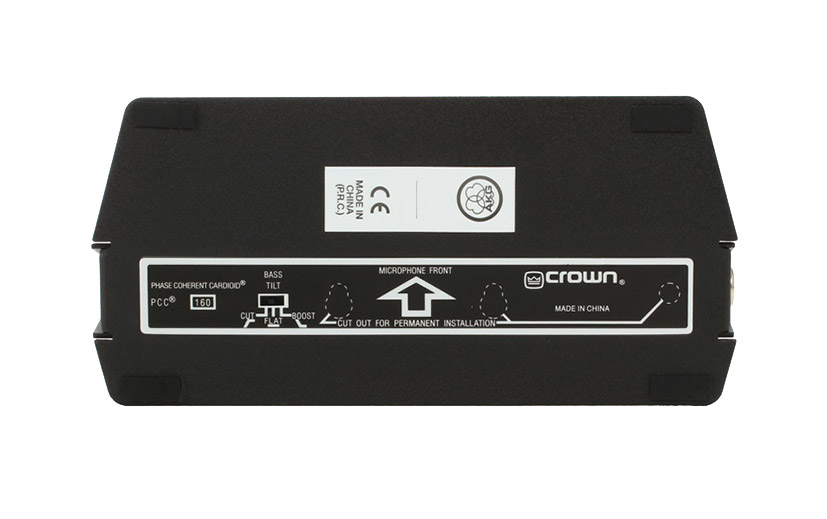

PCC160
“Phase coherent cardioid” – specially designed where hypercardioid response is required, to achieve higher gain before feedback or reduce pickup of room acoustics. Also suitable for stage reinforcement – use one, two or three units, dependent on coverage required, located about one foot from the front edge of the stage. Requires 12-48 volts phantom power. Supplied with 5 metre cable.
Technical Specification
Frequency response: 50Hz to 18kHz. Equivalent noise level: 22dB-A. Sensitivity: 22mV/Pa. Signal to Noise: 72dB-A. Recommended load impedance: 2000ohms. Voltage: 12 to 48V phantom power. Connector type: Switchcraft TA3F 3-pin. Colour: Black. Dimensions: 120 x 80 x 20mm (l x w x h). Weight: 70g.
