This selection of microphones from Audio-Technica includes cardioid and omnidirectional condenser types for use in speech, vocal and instrument applications.
Both battery-powered or phantom-powered models are included; all have a low-impedance, balanced output.

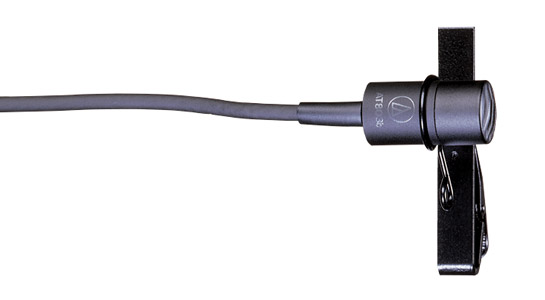

Designed to be worn as a lavalier or hidden in clothing, this discreet, cardioid, condenser microphone has been designed for voice reproduction in houses of worship, broadcast studios and theatres. The microphone body is only 5.3mm in diameter, attached to 1.4m cable terminated with a miniature XLR connector. This interfaces with the supplied AT8545 power module, which has a switch to introduce a low-frequency roll-off, 80Hz, 12dB/octave and an XLR3-M output connector. The power module operates with 11-52V DC phantom power. Maximum sound level: 140dB SPL. Response: 270Hz-17kHz, 50cm; 60Hz-17kHz, 10cm. Dynamic range: 112dB. Dimensions (L x Diam): 22.3 x 5.3mm, microphone; 145 x 21mm, power module. Weight: 1.6g, microphone body only.
Included accessories: AT8545 power module, AT8461a cable clip, clothing clip base, protective carrying case.
BP899 is very similar to BP898 in terms of design, however it has an omnidirectional, condenser element. The mere 5.3 mm diameter of the microphone body assures minimum visibility. It may be worn as a lavalier and is easily hidden in clothing or hair, providing 'maximum intelligibility and clean, accurate reproduction for vocalists, lecturers, stage and television talent and houses of worship'. The microphone body is only 5.3mm in diameter, attached to 1.4m cable terminated with a miniature XLR connector. This interfaces with the supplied AT8545 power module, which has a switch to introduce a low-frequency roll-off, 80Hz, 12dB/octave and an XLR3-M output connector. The power module operates with 11-52V DC phantom power. Maximum sound level: 140dB SPL. Response: 20Hz-20kHz. Dynamic range: 112dB. Dimensions (L x Diam): 17.5 x 5.3mm, microphone; 145 x 21mm, power module. Weight: 1.2g, microphone body only.
Included accessories: AT8545 power module, AT8151a windscreen, AT8150a resonance cap, AT8461a cable clip, clothing clip base, protective carrying case.
With a cardioid response, this condenser microphone 'provides crisp, full-sounding voice pick up and excels as an instrument microphone, especially for pickup of acoustic guitar with the included AT8444 guitar adapter'. It offers 'excellent gain before feedback and suppression of background noise'. A 1.8 metre cable is permanently attached, fitted with a miniature XLR connector. This connects with a belt-mounted power module which operates on a 1.5V AA battery (1200 hours, alkaline) or 11-52V phantom power. The power module has a filter which may be switched in to introduce low-frequency roll-off, 80Hz, -18dB/octave and a 3-pin male XLR output connector. Maximum sound level: 135dB SPL. Response: 40Hz-18kHz, sensitivity 6.3mV/Pa. Dimensions (L x Diam): 25 x 10.2mm, microphone; (HxWxD), 84 x 63 x 22mm, power module. Weight: 2.8g less cable and power module.
Included accessories: AT8531 power module, AT8417 clothing clip, AT8444 instrument adapter, AT8116 black foam windscreen, battery, protective carrying case.
AT803
This omnidirectional condenser design provides 'excellent yet unobtrusive sound pickup for lecturers and stage or TV performers'. Designed for clip-on lavalier and musical instrument use, it may also be used hidden in hair or loose clothing. A 1.8 metre cable is permanently attached, fitted with a miniature XLR connector. This connects with a belt-mounted power module which operates on a 1.5V AA battery (1200 hours, alkaline) or 11-52V phantom power. The power module has a filter which may be switched in to introduce low-frequency roll-off, 80Hz, -18dB/octave and a 3-pin male XLR output connector. Response: 30Hz-20kHz, sensitivity 5.6 mV/Pa. Dimensions (LxD): 20.5 x 10mm; Weight: 2.8g (without power module).
Included accessories: AT8531 power module, AT8419 clothing clip, AT8116 black foam windscreen, protective carrying case.
Other Models
All microphones in the Audio-Technica range are available from Canford. Those not listed are generally available in short delivery times to special order, please contact Sales.
