Designed for use in applications from sound reinforcement to high-end talkback systems, this selection of dynamic and condenser goosenecks are typically used in boardrooms, schools, government, houses of worship, and teleconferencing.

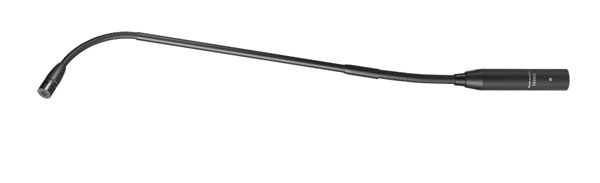

Designed for a wide range of applications including commercial and educational use, this long, cardioid condenser gooseneck microphone can be plugged into any standard 3-pin female XLR connector including compatible wall or desk plates. A frequency range of 70Hz-16kHz with an almost flat response across the range ensures a natural sounding capture, whilst the cardioid pickup pattern ensures the audio captured is predominantly from the front facing side with a high level of rejection to audio behind the microphone. The included AT8146 windscreen reduces wind noise and 'popping'. There are two flexible regions of the gooseneck microphone with a stiffened middle section.
Variations
Frequency response: 70Hz-16kHz. Impedance: 100 ohms, balanced. Dimensions: 12mm, capsule length; 18.9mm base diameter.
AT808G - Subcardioid, 413mm
Designed for use as a quality talkback microphone in entertainment, commercial and industrial applications, this dynamic microphone has a versatile gooseneck design that allows for 'unlimited positioning and dependable performance'. Its custom-tailored frequency response ensures 'excellent intelligibility in environments with excessive ambient noise'. The subcardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source. Response peaks at approximately 2kHz and slopes down towards the low and high-frequencies. Low frequencies roll off more sharply from approximately 200Hz. The protective screen reduces wind noise and 'popping' when used extremely close, the gooseneck has two flexible regions; the centre is stiffened to reduce 'droop'. The base plugs directly to a female XLR socket.
Frequency response: 200Hz-5kHz, sensitivity 1mV/Pa. Impedance: 800 ohms, balanced. Dimensions: 413 overall length; 25mm head, 19mm base diameter.
U859QL - Hypercardioid, 480mm
Designed for high-quality sound reinforcement, professional recording and broadcasting, this cardioid condenser microphone is also used as a talk-back microphone in broadcast applications. The microphone plugs directly into a panel or desk-mounted female XLR connector, the U859QL has an 'ultra-flexible' small-diameter gooseneck with virtually no 'memory'; there are two flexible regions, the centre is stiffened to reduce 'droop'. An 80Hz, 18dB/octave, low-cut filter may be switched in to reduce pickup of low-frequency ambient noise. The capsule is interchangeable; hypercardioid, omnidirectional and UniLine line cardioid polar patterns are available - contact Sales. Requires 11V to 52V DC phantom power.
Maximum input: 140dB SPL. Response: 100Hz-16kHz, sensitivity 7mV/Pa. Impedance: 250ohms, balanced. Dimensions: 480mm overall length; 12.3mm head, 18.9mm base, diameter.
Included accessories: AT8153 two-stage foam windscreen.
ES925 - Modular, 123mm-535mm
Audio-Technica ES925 is a modular gooseneck microphone system that allows the user to select the most appropriate capsule type, base type, and gooseneck length for their individual application. It has been designed for professional sound reinforcement and other commercial sound applications. For a complete microphone, power module, gooseneck, and microphone capsule parts must be combined. Other accessories, such as shock mount, microphone clip, and windshield are optional.
Optional accessories: AT8109a windshield for ES-C/H/O capsule, AT8138a windshield for ESE-ML capsule, AT8474 shockmount for ES8544 module, AT8473 stand clamp for ES8544 power module.
Frequency response: 30Hz-20kHz. Sensitivity: -40dB, re 1V at 1Pa. Maximum input level: 140dB SPL. Dynamic range: 112dB. Signal to noise ratio: 66dB.
ATND8734A - Power module, Dante
ATND8734a is a power module with the Dante network and switching functionality of the ATND971a. It has been designed for mounting a gooseneck or hanging microphone with TA3F connector. Connection to a network using CAT5e or CAT6 cable is via RJ45 socket. Logic screw terminals can be to trigger functions on compatible Dante enabled devices. 4x fixing crews are included for installation.
Frequency response: 20Hz-20kHz. Low frequency roll-off: 80Hz, 18dB/octave. Maximum input: -15/dBu/+30dB; -25dBu/+40dB; -35dBu/+50dB. Transmission speed: 100Mbps. Weight: 330g. Dimensions (Diam. x D): 148 x 47mm.
