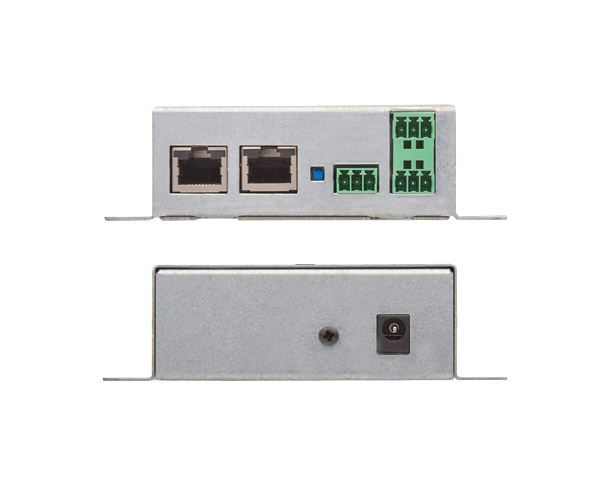

CLOUD FPA-1 FACILITY PORT ADAPTER For Cloud amplifier/mixer

BE-1 Remote input plate

Similar to the LE-1, the BE-1 provides a balanced, stereo line-level input, for use with professional audio equipment such as mixing consoles, or broadcast equipment. Like the LE-1, it connects to one of the DCM-1 extension ports with a single, four-pair, screened, Cat5 cable, see Cat5 F/UTP. Multiple BE-1s may be 'daisy-chained' in the same way as the LE-1s and the two types of plate may be intermixed. Two 3-pin female XLR connectors are fitted. Once connected, any audio connected to the BE-1 is treated as any other source and can be routed to any zone in the same manner.

BE-1B and BE-1W are designed for use in the UK with dimensions of 145 x 85 x 33mm (WxHxD).

BT-1E, BT-1F Bluetooth input plate

BT-1E and BT-1F are remote, wall-mounting Bluetooth wireless input modules. A single button allows the user to pair a device for secure operation, whilst an alternative unsecured mode can be configured at installation. A bi-coloured LED indicates the connection progress and streaming activity, and RF power level adjustment reduces the risk of accidental inter-room connection.

Connection to compatible equipment is via CAT5 cable up to 100m in length and via RJ45 connection. BT-1E has extension port compatibility and can therefore be used in conjunction with the DCM1 and DCM1e zone mixers. BT-1F uses facility port connection and is therefore compatible with Z4MK4 and Z8MK4 zone mixers, 46-120, 46-120 and 46-120MEDIA zone mixing amplifiers, MA40F, MA40T and MA40E mini amplifiers, MA80FT and MA80E mini amplifiers, 46-80 and 46-80T zone mixing amplifiers, MPA120MK2 and MPA240MK2. Dimensions of both units are 85 x 85mm (HxW) and can be used with standard UK single-gang electrical back box with 35mm minimum depth.

DLM-1 Dante input plate

Available in black or white finishes, Cloud DLM-1 is a remote mic/line input module for use in a Dante network audio networks. When used with Cloud CDI-CA or CDI-CV Dante input cards, it provides Dante connectivity to the Cloud CA Series or CV Series multichannel power amplifiers.

DLM-1 module combines the functions of a remote input connection plate, local audio mixer and mic-over-music priority with an AES67 compatible Dante output. Two inputs are provided, the first being for a microphone and the second for a stereo music input. Both inputs have dedicated rotary level controller. The line inputs are available both as a pair of phono (RCA) and a 3.5mm jack connection; and is summed to mono and mixed with the microphone input channel. A limiter, which is always active; and a switchable 120Hz high-pass filter are provided for the microphone input channel.

The plate can be connected to the Dante network using a single Cat 5 Ethernet cable via RJ45 connector. Power is via PoE.

L-1 Remote input plate – Line level with rotary volume control

L-1 is an end-point only, active line level input plate with dual RCA (phono) and single 3.5mm stereo jack input sockets. A rotary control allows remote level adjustment of products including Z series (MK2/3/4), 46-120 series, 46-50, 46-80, MPA120mk2, MPA240mk2, and selected MA40/MA80 amplifiers.

LE-1 Remote input plate - Line level

Like the ME-1 there are four versions of the LE-1 input plate. They provide connection for an unbalanced, stereo line-level audio source, such as a portable music centre, laptop, radiomic receiver or similar. They connect to one of the extension ports of the DCM-1 with a single, four-pair, screened, Cat5 cable, see Cat5 F/UTP. Multiple LE-1s may be 'daisy-chained' together to provide input points at different locations in the same zone. Signals applied to plates wired in this way will be summed together. An internal gating-circuit on each plate automatically 'disconnects' any chained plates which are not in use, to minimise noise contribution. The inputs are electronically buffered to minimise noise and interference pickup, and input gain is locally adjustable with a preset control. Both dual RCA (phono) sockets for sources with a nominal level of 0dB, and a 3.5mm stereo jack socket for sources with a higher input level of around +8dB are provided; +/-12dB of gain trim adjustment is available on the faceplate. Once connected, any audio connected to an LE-1 is treated as any other source and can be routed to any zone in the same manner.

LE-1B and LE-1W are designed for use in the UK with dimensions of 145 x 85 x 30mm (WxHxD). Note: Depth quoted is from plate to rear, not including protruding input connectors on face plate.

LM-2 Remote input plate – Microphone and line level

LM-2 fit in a UK standard dual-gang back-box, and are connected to suitable Cloud mixers and mixer-amplifiers over a distance of up to 100 metres. Although the modules are active, they take power from the host device. They have a microphone priority circuit which introduces a 30dB reduction of the music whenever the device detects a microphone signal.

The LM-2 has a line input, a balanced microphone input each with separate level controls. Two knobs control six-way source selection and level control respectively. A switch enables microphone priority. The module requires a screened Cat5 cable with overall screen, terminated with a screened RJ45 connector. Direct connection with the 46-120 series is therefore possible with these plates, however they do require suitable interfacing to be used with the 9-pin, D-sub Facility port on the 46-50 amplifier. Colour black.

M-1 Remote input plate – Microphone level

M-1 is an active input plate with single, balanced 3-pin XLR input and supporting rotary level controller. For use with Z-series (MK2/3/4), 46-120 series, 46-50, 46-80, MPA120mk2, MPA240mk2, and selected MA40/MA80 amplifiers.

ME-1 Remote input plate – Microphone level

Available in four options (black or white for UK or EU), the ME-1 remote input plate provides either one or two balanced microphone inputs - two on the ME-1B and ME-1W, one on the ME-1MB and ME-1MW. They is useful in multi-purpose areas where microphones are needed occasionally. There are rotary microphone level and screw-driver operated LF and HF EQ controls per input. It connects to one of the four dedicated microphone inputs of the DCM-1 with a single, four-pair, screened, Cat5 cable, see Cat5 F/UTP. In the case of the ME-1B and ME-1W the two inputs are mixed together at the plate, and the summed signal applied to the DCM-1. Inputs are balanced 3-pin female XLR connectors. Phantom power at 12V is available, set by a jumper accessible from the rear of the plate.

ME-1B and ME-1W are designed for use in the UK with dimensions of 145 x 85 x 33mm (WxHxD), whilst the ME-1MB and ME-1MW are designed for use in the EU with dimensions of 100 x 50 x 33mm (WxHxD). Note: Depth quoted is from plate to rear, not including controls on face plate. Total depth including protruding volume control is 50mm.

CDR-1, CDR1F Digital control mixer

CDR-1 and CDR1F are specifically designed for use with the DCM-1. CDR-1s may be fitted to standard electrical back boxes in whatever location is convenient in each zone. Different versions are offered for flush and surface mounting. The CDR-1 provides the user with local source-selection and level-control for the zone in which it is fitted. It additionally allows selection of any zone groups to which the zone has been assigned, which gives simple and complete control over audio in multiple areas which may be split or joined in different ways at different times. Once enabled on the DCM-1 and a local key-code entered, zone EQ is also adjustable from the CDR-1, allowing audio optimisation from within the zone itself. An 'Installer' mode permits zone assignment and adjustment of other installation parameters.

Any zone may have one CDR-1, more than one, or none at all. The DCM-1 can support up to 100 CDR-1s. CDR-1s are interconnected with just one standard, four-pair, Cat5, UTP cable, see Cat5 U/UTP; units may be 'daisy-chained' at will and/or connected individually back to the four CDR ports of the DCM-1, using almost any wiring topology convenient for the installation. Up to eight CDR-1s may be powered directly from a DCM-1, via the Cat5 connections. Systems requiring more than eight will need additional power supplies, whose location and system connection will depend on the topology and cable lengths involved.

CDR-1 are surface mount plates, whilst CDR1F are flush mount plates.

RL-1 Remote level control

These are constructed to fit in UK standard single-gang back-box; they provide remote control functions for several Cloud products. Connections are terminal-blocks which may be wired to suitable Cloud mixers and mixer amplifiers using screened, two-core cable over a distance of up to 100m.

RSL-6 Remote level with source selection

Has the same remote level functionality as the RL-1, and also has an additional rotary source select controller to switch between six sources.

RSL-4 Remote level with source selection

Has the same remote level functionality as the RSL-6, however limited to four sources.

XLR-M1 Output Connector Plate

This output plate offers a convenient way to provide an input signal remotely from installed equipment, providing screw-terminal connection to male XLR connectors. It mounts to a standard, single-gang, UK flush or surface box - the same as used for AC mains sockets.

The plate is fitted with a single XLR connector having a rear-mounted circuit board fitted with a miniature 3-pole, two-part, terminal-strip connector, otherwise known as 'Euroblock' or Phoenix connector. Thus the plates can be terminated on site without soldering. The connectors are compatible pin to pin with a range of Cloud equipment, including CX163, CX263, CX462, MA60, MA60Media, Z4ii, Z8ii, 36-50, 46-50, MPA60, MPA120 and MPA240 models. The plates may be used, of course, in conjunction with other equipment, provided appropriate attention is given to observe the proper connections.

XLR-F1 Input Connector Plate

This plate has the same design and functionality as XLR-M1, however it has female XLR connection and is therefore to use as an input plate.
