BELDEN 4505R - UHDTV DIGITAL VIDEO CABLE

2 items

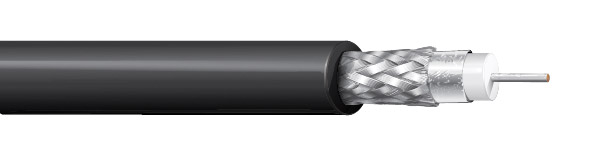

BELDEN 4505R CABLE Black
BELDEN 4505R CABLE BlackBELDEN 4505R CABLE Orange

75 ohm coaxial cable specifically for 4K 12G video signals with PVC outer jacket. Industry type RG59.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Q (with Neutrik and Canare exceptions)
Inner conductor: (20AWG) 0.81mm silver plated copper
Dielectric: Foam polyethylene, 3.68mm O.D.
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid, optical coverage 95%
Construction: Coaxial cable
Jacket: PVC, black and orange
Overall diameter: 5.92mm
Minimum bend radius: 58.42mm
Impedance: 75 ohms
Capacitance: 52.8pF/m nominal
Attenuation: MHz 10 100 180 750 1500 3000 6000 12000
dB/100m 3.0 7.5 10.2 21.3 30.5 44.0 64.6 94.1
Weight: 4.61kg/100m
Reel length: 305m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

BNC Male - 3G

BNC Male - 75Ohm RF

Micro BNC Male - 12G

DIN 1.0/2.3 Male - 3G

F Connector

RCA Phono

Ordering note: Other colours available to special order, contact sales for further details.

Description Price $
ex. VAT
Add to basket
Delivery
BELDEN 4505R CABLE Black Black Stock code: 60-4505R
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $9.54
100+ $7.64
500+ $7.44
1,000+ $7.16
per metre
BELDEN 4505R CABLE Orange Orange Stock code: 60-4505R-3
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $9.54
100+ $7.64
500+ $7.44
1,000+ $7.16
per metre
