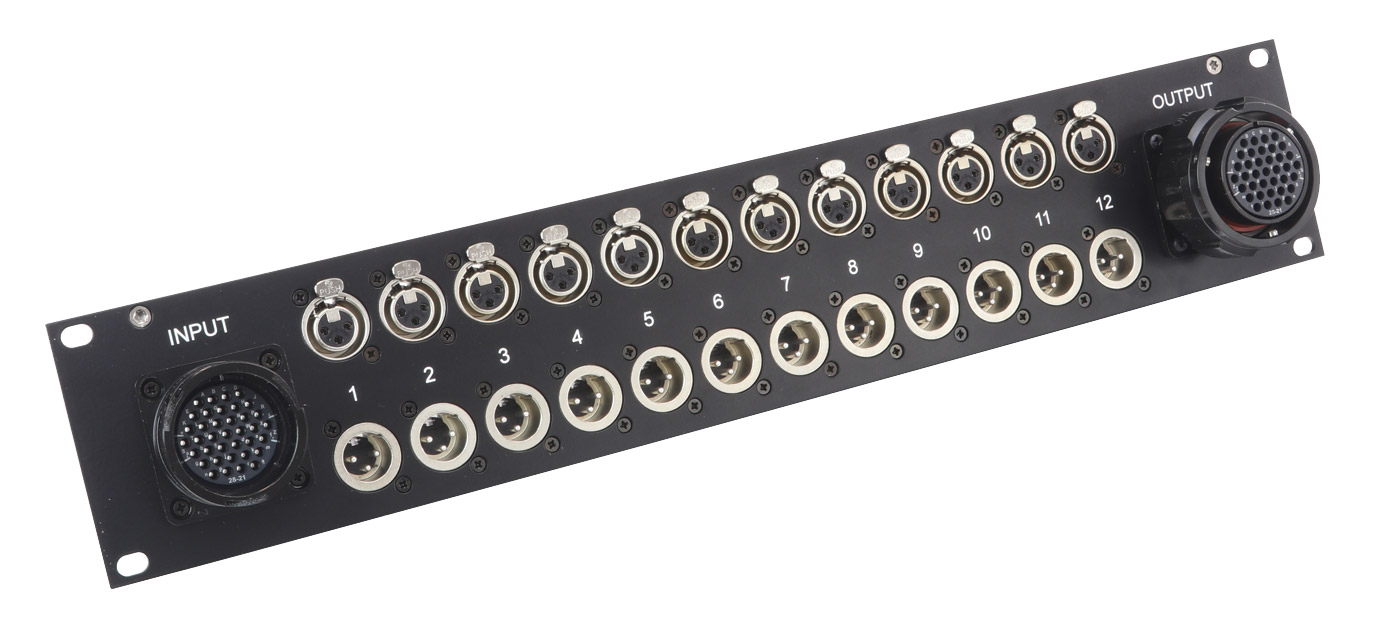

A range of 2U Audio splitter panels supplied fully populated (non-wired), with 2off 37 pin Tourline connectors and 2 rows of 12 Neutrik ‘D’ series 3-pin XLR female and male connectors. Two versions are available as standard.
Manufactured from lightweight but extremely rigid aluminium extrusion, supplied with a cranked lacing-bar fitted, giving easy access to the rear of the connectors. Panels are engraved 1-12 with white infill for easy identification of all connectors in low light environments.
The Tourline connectors are situated at each end of the panel. The male to the left, the female to the right, with the two rows of 12 Neutrik XLR’s in between. Each panel is supplied complete with Tourline solder and crimp pins, for cable sizes of either 0.16 - 0.6 sq.mm or 1.0 - 1.5 sq.mm, to fully populate both connectors.
Available finished in Black.
Custom options
Fully wired versions of the above, plus panels with mixed series, mixed gender and staggered-connector layout are available to special order. Please contact sales for a quotation.
Special colour options, along with client specific engraving or screen printing are offered, but may be subject to a minimum order quantity or charge. For further information or a quotation please contact the custom metalwork team via email, custommetal@canford.co.uk. Alternatively contact Sales.
Manufactured by Canford.
