CANFORD CABLE DRUMS - AUDIO - Plastic and metal drum, supplied with cables

30 items
CANFORD CDP266HSTXC CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M/F
CANFORD CDP266HSTXC CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M/FCANFORD CDP266HSTXC CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M/FCANFORD CD301HSTXC CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M/FCANFORD CD301HSTXF CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3FCANFORD CD301HSTXM CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M

This range of audio cable drums come with both plastic and metal cable drums. The plastic range are robust and lightweight, with plastic drums and frames of moulded high-strength plastic. Whilst the metal range all have steel drums, with steel tube frames. Both types have a fixed winding-handle on the drum flange plus a friction drum-brake incorporated into the frame to prevent movement in transit.

Some models consist of cable drums with connector combinations on the flange of the drum, whilst others have cable connector tails on both ends of the cable. Details outlining configurations can be found in the tables below.

The Neutrik XLR ‘Convertcon’ offers both male and female contacts in a single cable housing (note that this mates but does not latch with the older Neutrik DL series panel connectors).

Other connector combinations, other cable colours and lengths can be supplied to special order.

Connectors used:
NC3FD-LX XLR 3-pin female panel 41-131
NC3MD-LX XLR 3-pin male panel 41-136
NC3FXX XLR 3-pin female cable 41-031
NC3MXX XLR 3-pin male cable 41-032
NC3FM-C XLR 3-pin male/female cable (‘Convertcon’) 40-313
Cables used:
HST Microphone or line-level analogue 30-150
SQ6.5 Starquad microphone 30-430
SQ-R Ruggedised Starquad microphone 30-440
FSJ2 2 pair screened multipair cable 31-502
FSJ4 4 pair screened multipair cable 31-504
FSJ8 8 pair screened multipair cable 31-508

Plastic cable drums

Code Model Flange connector 1 Flange Connector 2 Cable Cable connector Length
35-5101 CDP266HSTXC NC3FD-LX NC3MD-LX HST NC3FM-C 50m
35-5102 CDP266HSTXF NC3FD-LX NC3MD-LX HST NC3FXX 50m
35-5103 CDP266HSTXM NC3FD-LX NC3MD-LX HST NC3MXX 50m
35-5104 CDP266SQXC NC3FD-LX NC3MD-LX SQ6.5 NC3FM-C 50m
35-5105 CDP266SQXF NC3FD-LX NC3MD-LX SQ6.5 NC3FXX 50m
35-5106 CDP266SQXM NC3FD-LX NC3MD-LX SQ6.5 NC3MXX 50m

Metal cable drums

Code Model Flange connector 1 Flange Connector 2 Cable Cable connector Length
35-5211 CD301HSTXC NC3FD-LX NC3MD-LX HST NC3FM-C 50m
35-5212 CD301HSTXF NC3FD-LX NC3MD-LX HST NC3FXX 50m
35-5213 CD301HSTXM NC3FD-LX NC3MD-LX HST NC3MXX 50m
35-5214 CD301SQRXC NC3FD-LX NC3MD-LX SQ-R NC3FM-C 50m
35-5215 CD301SQRXF NC3FD-LX NC3MD-LX SQ-R NC3FXX 50m
35-5216 CD301SQRXM NC3FD-LX NC3MD-LX SQ-R NC3MXX 50m
35-5241 CD301HSTXC75 NC3FD-LX NC3MD-LX HST NC3FM-C 75m
35-5242 CD301HSTXF75 NC3FD-LX NC3MD-LX HST NC3FXX 75m
35-5243 CD301HSTXM75 NC3FD-LX NC3MD-LX HST NC3MXX 75m
35-5244 CD301SQRXC75 NC3FD-LX NC3MD-LX SQ-R NC3FM-C 75m
35-5245 CD301SQRXF75 NC3FD-LX NC3MD-LX SQ-R NC3FXX 75m
35-5246 CD301SQRXM75 NC3FD-LX NC3MD-LX SQ-R NC3MXX 75m
35-5271 CD301HSTXC100 NC3FD-LX NC3MD-LX HST NC3FM-C 100m
35-5272 CD301HSTXF100 NC3FD-LX NC3MD-LX HST NC3FXX 100m
35-5273 CD301HSTXM100 NC3FD-LX NC3MD-LX HST NC3MXX 100m
35-5274 CD301SQRXC100 NC3FD-LX NC3MD-LX SQ-R NC3FM-C 100m
35-5275 CD301SQRXF100 NC3FD-LX NC3MD-LX SQ-R NC3FXX 100m
35-5276 CD301SQRXM100 NC3FD-LX NC3MD-LX SQ-R NC3MXX 100m
Code Model Flange connector 1 Cable Cable connector Length
35-5310 CD385FSJ2XM 2xNC3FD-LX FSJ2 2x NC3MXX 50m
35-5311 CD385FSJ2XM100 2xNC3FD-LX FSJ2 2x NC3MXX 100m
35-5312 CD385FSJ4XM 4xNC3FD-LX FSJ4 4x NC3MXX 50m
35-5313 CD385FSJ4XM100 4xNC3FD-LX FSJ4 4x NC3MXX 100m
35-5314 CD461FSJ8XM 8xNC3FD-LX FSJ8 8x NC3MXX 50m
35-5315 CD580FSJ8XM100 8xNC3FD-LX FSJ8 8x NC3MXX 100m

'HST' is a registered trademark of Canford Audio Limited.

Description Price $
ex. VAT 		Add to basket
Delivery

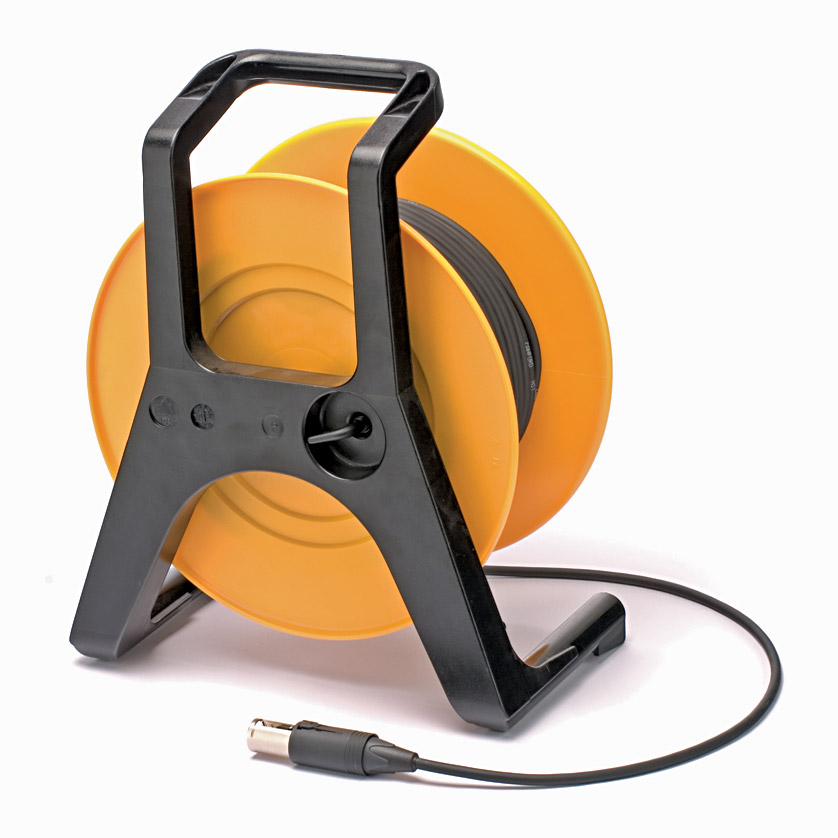

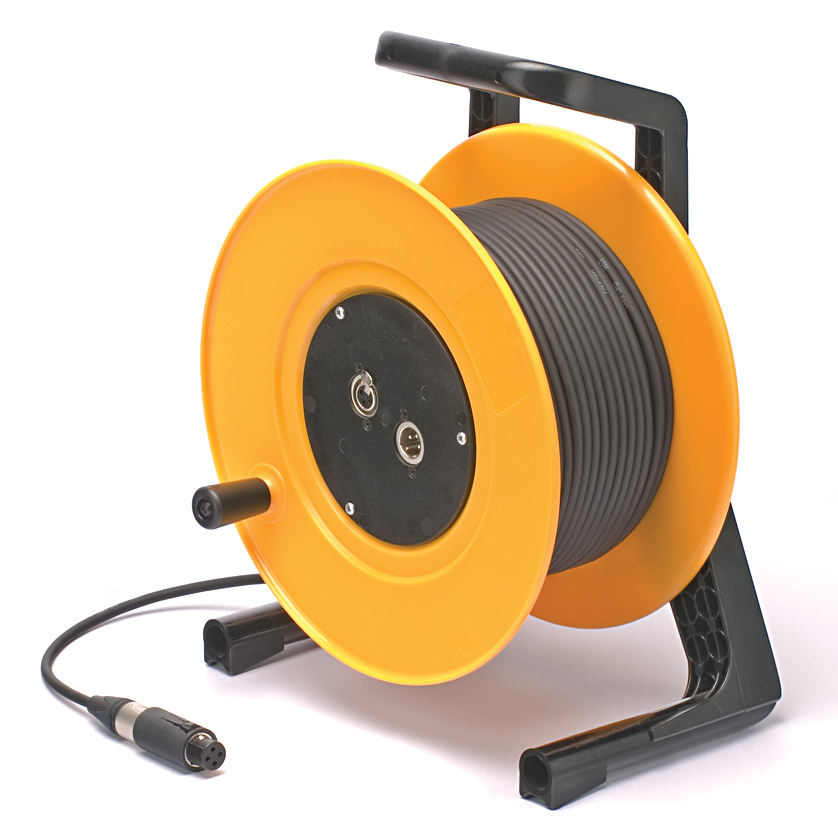

CANFORD CDP266HSTXC CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M/F Stock code: 35-5101
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $217.59
10+ $212.09
CANFORD CDP266HSTXF CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3F Stock code: 35-5102
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $205.15
10+ $200.04
CANFORD CDP266HSTXM CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M Stock code: 35-5103
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $204.10
10+ $198.99
CANFORD CDP266SQXC CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m starquad to XLR-3M/F Stock code: 35-5104
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $266.85
10+ $260.17
CANFORD CDP266SQXF CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m starquad to XLR-3F Stock code: 35-5105
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $254.40
10+ $248.11
CANFORD CDP266SQXM CABLE DRUM ASSEMBLY With XLR-3F, XLR-3M on drum, 50m starquad to XLR-3M Stock code: 35-5106
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $253.49
10+ $247.20

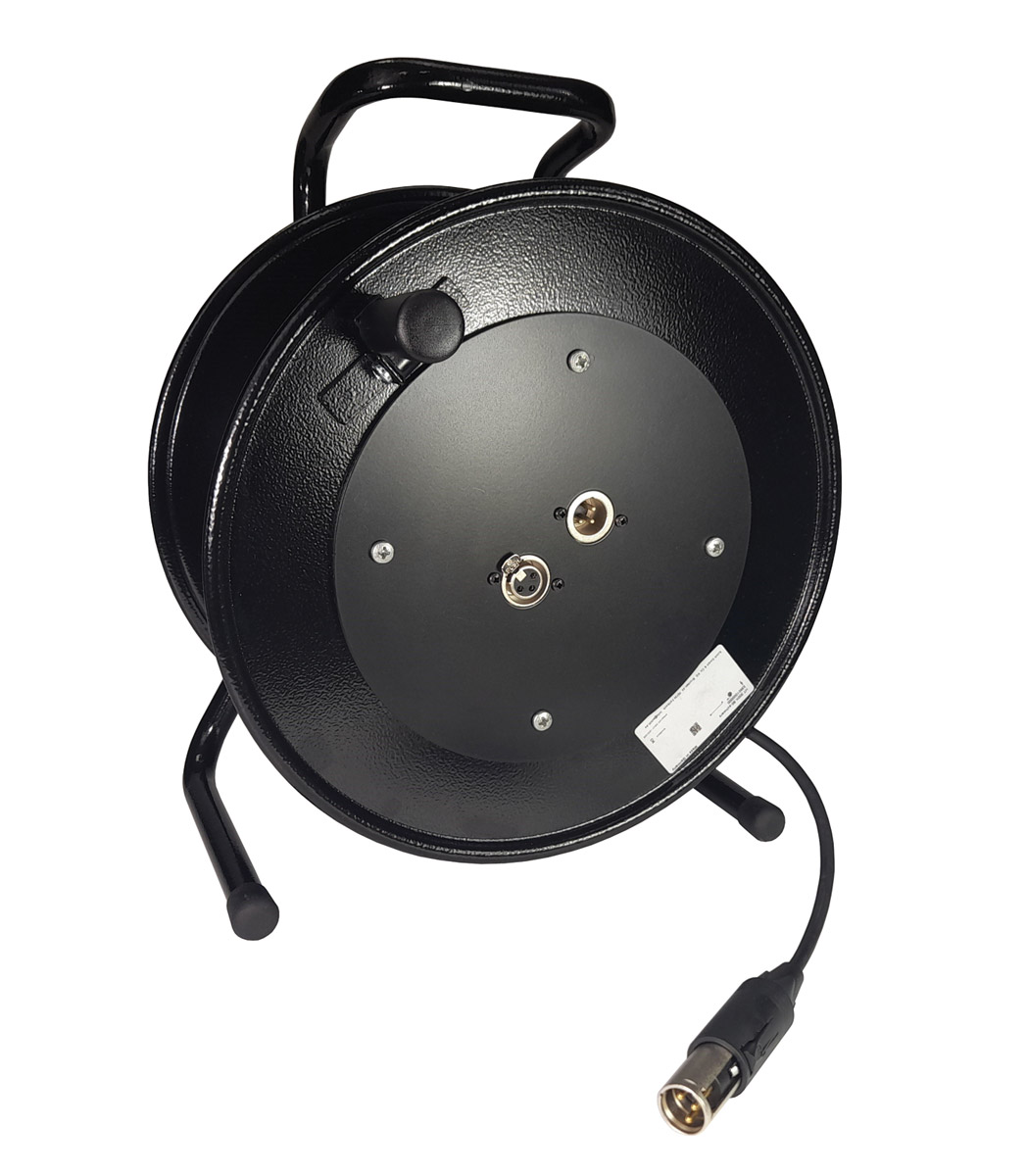

CANFORD CD301HSTXC CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M/F Stock code: 35-5211
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $330.91
10+ $322.65

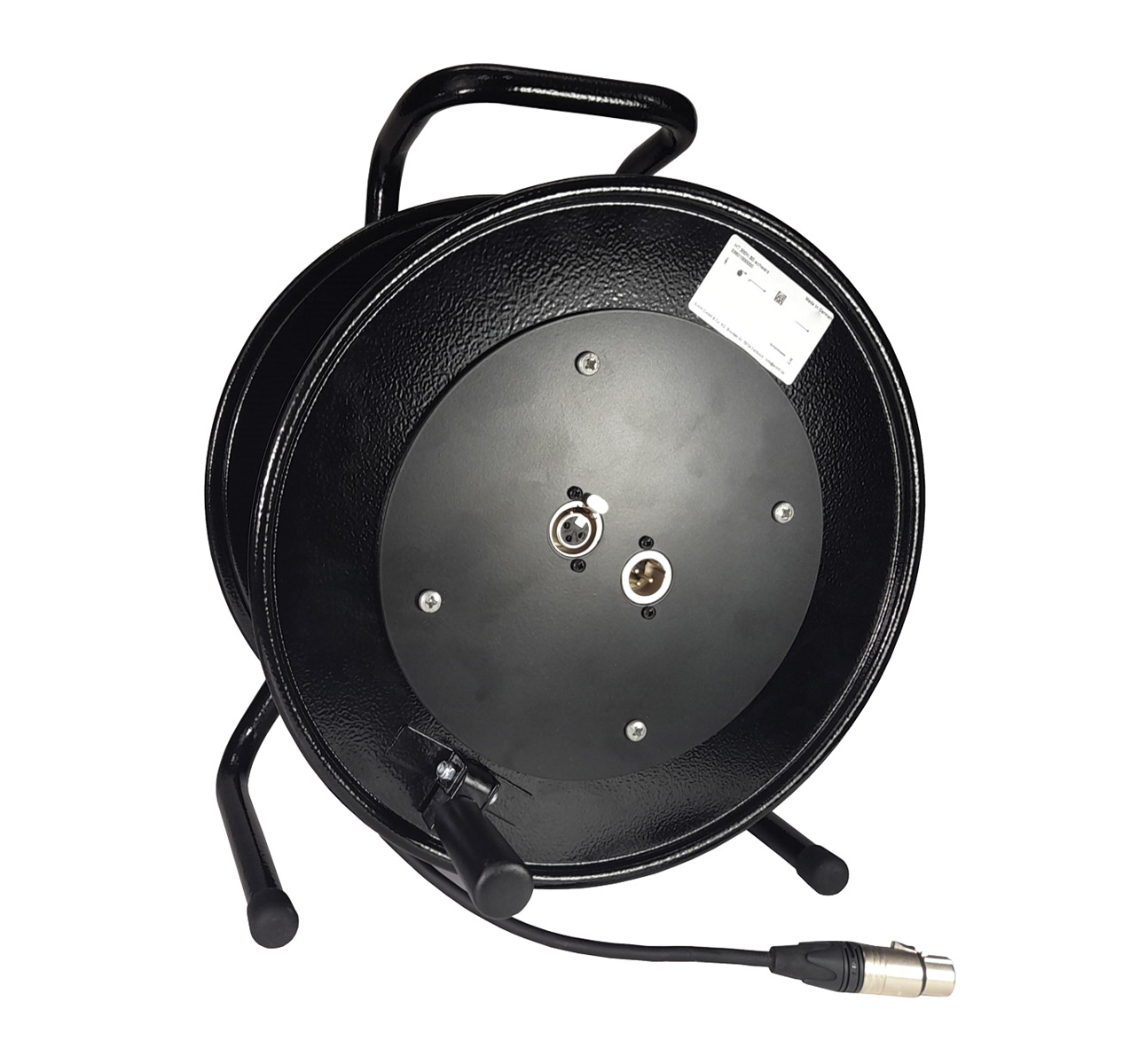

CANFORD CD301HSTXF CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3F Stock code: 35-5212
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $318.46
10+ $310.60

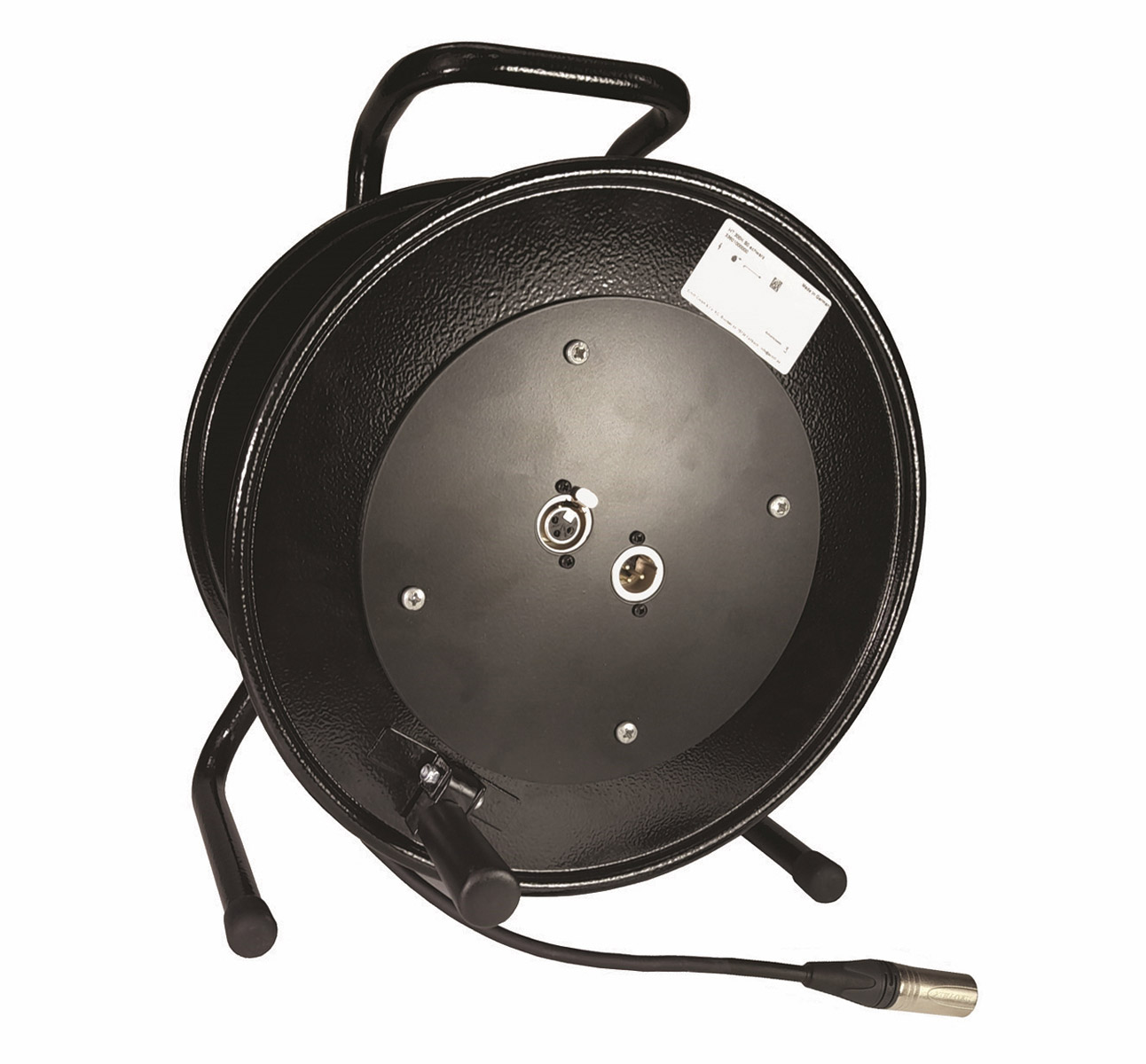

CANFORD CD301HSTXM CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m screened pair to XLR-3M Stock code: 35-5213
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $317.54
10+ $309.68
CANFORD CD301SQRXC CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m starquad to XLR-3M/F Stock code: 35-5214
Assembled to order, cancellations may incur charges, available in Call.
1+ $418.81
10+ $408.33
CANFORD CD301SQRXF CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m starquad to XLR-3F Stock code: 35-5215
Assembled to order, cancellations may incur charges, available in Call.
1+ $406.36
10+ $396.14
CANFORD CD301SQRXM CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 50m starquad to XLR-3M Stock code: 35-5216
Assembled to order, cancellations may incur charges, available in Call.
1+ $405.45
10+ $395.23
CANFORD CD301HSTXC75 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 75m screened pair to XLR-3M/F Stock code: 35-5241
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $360.77
10+ $351.74
CANFORD CD301HSTXF75 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 75m screened pair to XLR-3F Stock code: 35-5242
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $348.33
10+ $339.68
CANFORD CD301HSTXM75 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 75m screened pair to XLR-3M Stock code: 35-5243
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $347.41
10+ $338.77
CANFORD CD301SQRXC75 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 75m starquad to XLR-3M/F Stock code: 35-5244
Assembled to order, cancellations may incur charges, available in Call.
1+ $492.30
10+ $479.98
CANFORD CD301SQRXF75 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 75m starquad to XLR-3F Stock code: 35-5245
Assembled to order, cancellations may incur charges, available in Call.
1+ $479.85
10+ $467.93
CANFORD CD301SQRXM75 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 75m starquad to XLR-3M Stock code: 35-5246
Assembled to order, cancellations may incur charges, available in Call.
1+ $478.94
10+ $467.02
CANFORD CD301HSTXC100 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 100m screened pair to XLR-3M/F Stock code: 35-5271
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $390.64
10+ $380.82
CANFORD CD301HSTXF100 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 100m screened pair to XLR-3F Stock code: 35-5272
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $378.20
10+ $368.77
CANFORD CD301HSTXM100 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 100m screened pair to XLR-3M Stock code: 35-5273
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $377.28
10+ $367.85
CANFORD CD301SQRXC100 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 100m starquad to XLR-3M/F Stock code: 35-5274
Assembled to order, cancellations may incur charges, available in Call.
1+ $565.79
10+ $551.64
CANFORD CD301SQRXF100 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 100m starquad to XLR-3F Stock code: 35-5275
Assembled to order, cancellations may incur charges, available in Call.
1+ $553.34
10+ $539.59
CANFORD CD301SQRXM100 CABLE DRUM ASSEMBLY XLR-3F, XLR-3M on drum, 100m starquad to XLR-3M Stock code: 35-5276
Assembled to order, cancellations may incur charges, available in Call.
1+ $552.43
10+ $538.67
CANFORD CD385FSJ2XM CABLE DRUM ASSEMBLY 2x XLR-3F on drum, 50m 2 screened pairs to 2x XLR-3M Stock code: 35-5310
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $531.07
10+ $517.71
CANFORD CD385FSJ2XM100 CABLE DRUM ASSEMBLY 2x XLR-3F on drum, 100m 2 screened pairs to 2x XLR-3M Stock code: 35-5311
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $683.82
10+ $666.79
CANFORD CD385FSJ4XM CABLE DRUM ASSEMBLY 4x XLR-3F on drum, 50m 4 screened pairs to 4x XLR-3M Stock code: 35-5312
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $674.65
10+ $657.62
CANFORD CD385FSJ4XM100 CABLE DRUM ASSEMBLY 4x XLR-3F on drum, 100m 4 screened pairs to 4x XLR-3M Stock code: 35-5313
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
1+ $922.24
10+ $899.97
CANFORD CD461FSJ8XM CABLE DRUM ASSEMBLY 8x XLR-3F on drum, 50m 8 screened pairs to 8x XLR-3M Stock code: 35-5314
Assembled to order, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
1+ $994.29
10+ $969.40
CANFORD CD580FSJ8XM100 CABLE DRUM ASSEMBLY 8x XLR-3F on drum, 100m 8 screened pairs to 8x XLR-3M Stock code: 35-5315
Assembled to order, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
1+ $1,820.90
10+ $1,781.60
