CANFORD LACING BARS

7 items
CANFORD LACING BAR KIT Type A
CANFORD LACING BAR KIT Type A

Used for the orderly management of cables wired to such items as jackfields and connector panels, these simple items of hardware are offered to the installer or custom builder as a convenient method of tidying cable looms etc.

Jackfield types

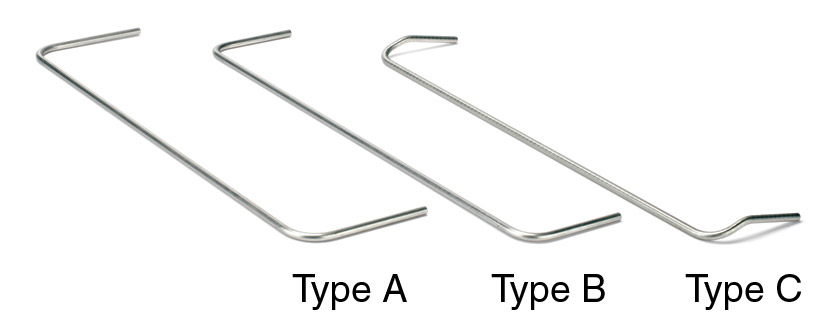

Manufactured from stainless steel rod, bent into a ‘flattened U’ shape, tapped at each end with a mounting thread. Type A is as used on Mosses & Mitchell type bantam jackfields. Type B is as used on Mosses & Mitchell type B-gauge jackfields. Type C is a variation of Type B, for use when the cable has to be tied offset from the mounting points, giving angled ends to the lacing bar, allowing a 22.6mm deviation of the tying cross section of the bar relative to the mounting points. Supplied complete with both nickel finish and black finish countersunk fixing screws.

Technical Specification:
45-028 45-029 45-027
Type A Type B Type C
Rod diameter (mm): 6.3 6.3 6.3
Mounting pitch (mm): 435 420.7 420.7
Stand off from panel (mm): 90 110 90
Thread × depth (mm): M4 × 12 M4 × 12 M4 × 12

Tailgate Types

Other variations are offered for use with the Canford "flat" and "angled" tailgate panels in various depths.

Technical Specification:
45-3041 45-3042 45-3043 45-3044
Rod diameter (mm): 6.35 6.35 6.35 6.35
Mounting pitch (mm): 422.6 414.6 422.6 414.6
Stand off from panel (mm): 97 99 65 65
Thread × depth (mm): M4 × 10.5 M4 × 10.5 M4 × 10.5 M4 × 10.5
Note:

For customers wishing to use a lacing bar solution for individual Universal series connectors, on smaller or custom-made panels, the Canford designed U-bar provides a mini lacing bar solution as well as replacing the rear nuts fixings that are required. See CANFORD UNIVERSAL CONNECTOR U-BAR - Lacing bar for details.

Description Price $
ex. VAT
Add to basket
Delivery
CANFORD LACING BAR KIT Type A Stock code: 45-028
10 in stock Need more?
1+ $17.55
5+ $17.03
CANFORD LACING BAR KIT Type B Stock code: 45-029
3 in stock Need more?
1+ $17.79
5+ $17.25
CANFORD LACING BAR KIT Type C Stock code: 45-027
Out of stock but available to backorder, available in 3‑4 weeks. Need it sooner? Call us
1+ $18.64
5+ $18.08
CANFORD LACING BAR For flat tailgate panel, cranked, 100mm Stock code: 45-3041
13 in stock Need more?
1+ $9.90
5+ $9.51
CANFORD LACING BAR For flat tailgate panel, cranked, 65mm Stock code: 45-3043
3 in stock Need more?
1+ $11.00
5+ $10.56
CANFORD LACING BAR For angled tailgate panel, cranked, 100mm Stock code: 45-3042
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $11.61
5+ $11.15
CANFORD LACING BAR For angled tailgate panel, cranked, 65mm Stock code: 45-3044
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $11.42
5+ $10.96
