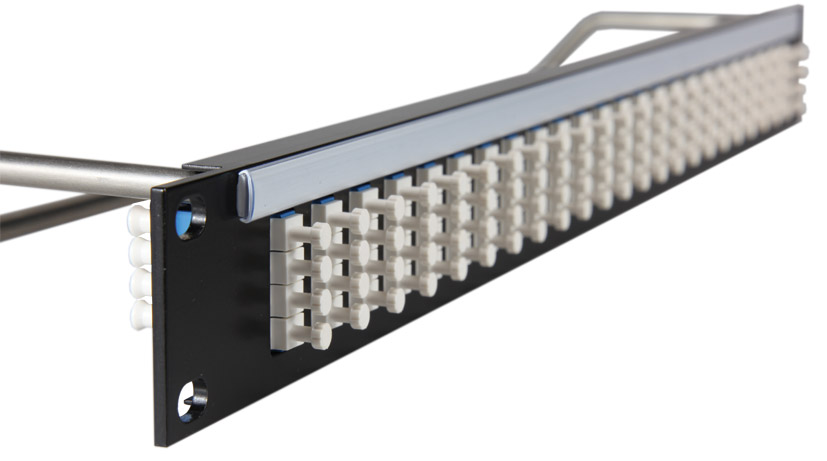

CANFORD LC FIBRE TERMINATION PANELS - Broadcast style, Senko fiber couplers, MM and SM

A range of broadcast-style, fibre termination patch-panels supplied fully-populated with industry-approved Senko LC fibre through-couplers. They feature zirconia (SM) or phosphor bronze (MM) ferrules and tight-tolerance housings to ensure exceptionally accurate connector alignment and fibre face-contact, resulting in lower loss and greater reliability than commercial-grade types. The Senko couplers also feature an internal 'light shutter' which although not an environmental seal, does offer some protection from large particle ingress and protects against laser spillage from unmated 'live' ports.

A single row of 16, 20 or 24 duplex or quad, multi-mode or single-mode couplers is standard; mixed layouts (LC, SC, ST), mixed modes and other connector counts are available to special order.

The simple, rugged, panel design features a rigid aluminium extrusion with a unique coupler-mounting sub-frame. The couplers are tightly clamped (no rattle) with front faces presented flush with the panel front. A simple cranked lacing-bar supports rear patchcords or bulk fibres and gives easy access to the rear sockets. Where splice support is required a Canford Fibre Termination Rackcase should be used, see Canford LC Fibre Termination Rackcase - Broadcast style, Senko fiber-couplers, MM and SM.

A designation-strip holder with snap-on cover is fitted above each coupler row and permits paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.

Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.
