NEUTRIK AUDIO TRANSFORMERS

3 items
NEUTRIK NTM1 TRANSFORMER Analogue audio, PCB, microphone input
NEUTRIK NTM1 TRANSFORMER Analogue audio, PCB, microphone inputNEUTRIK NTM4 TRANSFORMER Analogue audio, PCB, microphone inputNEUTRIK NTL1 TRANSFORMER Analogue audio, PCB, line input

A range of high quality PCB mounting transformers. A complete set of performance graphs and circuit application notes is available free on request, order code 02-018.

Turns Frequency response with 200 ohm Max. input level for
Type Application ratio source and bridging load 1% THD at 50Hz
NTM1 Mic input 1:1 15 - 25000 Hz ±0.5dB 1.5V
NTM4 Mic input 1:4 15 - 25000 Hz ±0.5dB 1.5V
NTL1 Line input 1:1 Depends on circuit +24dBu
Description Price $
ex. VAT 		Add to basket
Delivery
NEUTRIK NTM1 TRANSFORMER Analogue audio, PCB, microphone input Stock code: 23-001
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $69.27
10+ $63.04
50+ $59.57
100+ $52.65

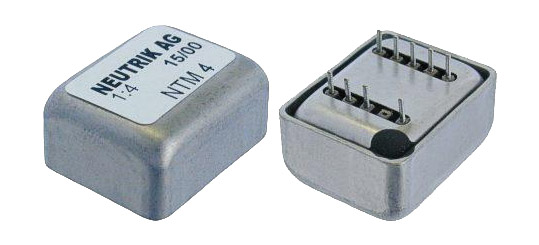

NEUTRIK NTM4 TRANSFORMER Analogue audio, PCB, microphone input Stock code: 23-002
Discontinued. Please contact Technical Support for alternatives.

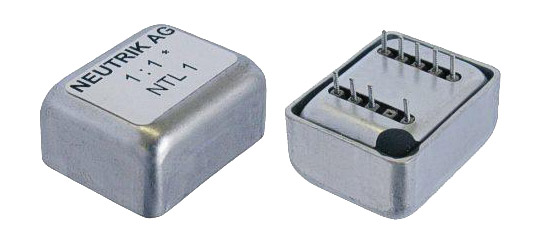

NEUTRIK NTL1 TRANSFORMER Analogue audio, PCB, line input Stock code: 23-003
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $74.70
10+ $67.98
50+ $64.24
100+ $56.77
