CANFORD SMPTE311M HYBRID FIBRE CAMERA CABLE ASSEMBLIES With Lemo connectors and OCC 9.2mm cable

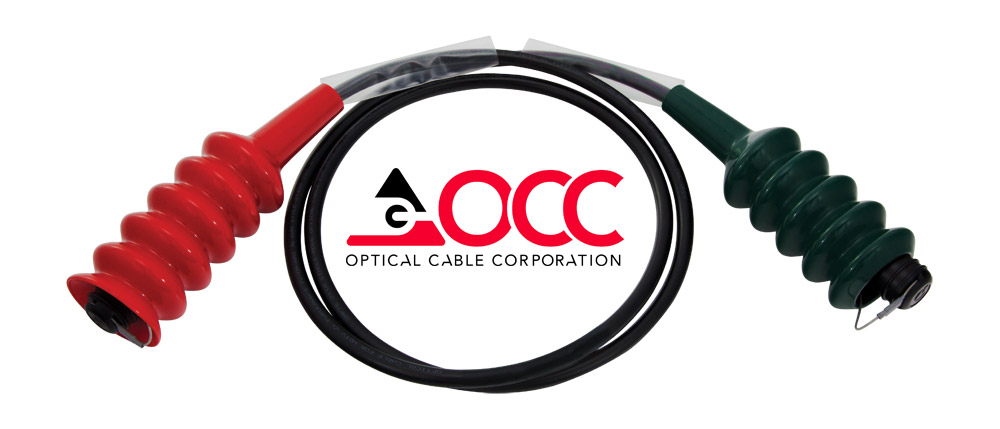

These industry standard, hybrid fibre, HD camera cables use Lemo SMPTE304 connectors and OCC (Optical Cable Corporation) SMPTE standard cables. They are assembled to order by Canford, usually on short lead times. The cables, which are generically referred to as SMPTE311M, incorporate two singlemode fibres, two power conductors and two low-voltage conductors, laid up around a stainless-steel ('Essential' and 'Tactical' types) or aramid ('Flex' type) strength member, plus a rugged, abrasion-resistant jacket.

The Lemo 3K.93C stainless steel connectors incorporate the highly-reliable Lemo push-pull latching system and are suitable for up to 20,000 mating cycles. With correct care and cleaning, the fibre contacts are also suitable for this level of endurance.

'Essential' is the main OCC 9.2mm design. 'Tactical', 9.2mm, uses OCC's military grade fibre and is possibly the most rugged SMPTE cable available. The 'Flex' type is intended for applications where flexibility is a primary concern, as well as light weight (70% of the weight of standard 9.2mm cables).

For detailed specifications of the cable, see OCC (Optical Cable Corporation) SMPTE311 Fibre HDTV Camera Cables. Cables are available manufactured to any required length.

Connector types:

Note that pricing shown is for the cable assembly only, supplied loose-coiled or on non-returnable transit reels. A range of SMPTE311M fibre assemblies, utilising various manufacturers SMPTE311M cable complete with Lemo FUW-PUW SMPTE connectors, are also available pre-wound onto metal cable drums or 'Skeleton' cable reels. See CANFORD CABLE DRUMS - SMPTE311M HYBRID FIBRE - Metal drum, supplied with cables

Cable drums with external 'tail' supports can also be ordered separately, see Canford cable drums - Steel drum, see Canford cable drums - Rubber drum or see Canford Skeleton cable reels - Trolley and Reeling stand. See also the Canford cable drum capacity calculator in the Technical section, to select the correct drum.

Canford's fibre termination facility is certified by Lemo for termination of the Lemo SMPTE304 connectors.

As part of our final test process Canford carry out both insertion and return loss measurement, as well as interferometry measurement on all Fibre terminations. Although some termination facilities do not use interferometry and rely merely on insertion and return loss testing to determine results Canford will always carry out interferometry as standard. Test results including 3D imagery of terminations can be supplied upon request.

Interferometry measures three critical dimensions required for continued reliability, end shape (radius of curvature measured in mm), the polished apex offset (measured in um) and fibre height (measured in nm). These three parameters all fall within tight industry standards which guarantees reliability when mating random connectors.

Ordering note: Custom lengths and connector variations are available, please contact the sales team for a quotation.
