DPA series of table top and ceiling microphones, formally known as the d:sign series, have been designed to give temporary or permanent access to audio pickup where table top or ceiling microphone placement is required, such as on a table in a conference venue, or on the ceiling of a meeting room or boardroom.
DPA 4018 tabletop microphone uses the MMC4018 pre-polarised supercardioid condenser capsule and has a ‘highly-directional’ pickup pattern designed for speech applications where background noise is required at a minimum. This microphone has a boom length of 5cm and is only available in black. The microphone base is terminated with 3-pin XLR.
The microphone has a frequency range of 20Hz – 20kHz, 40Hz – 18kHz at +/-2dB at 30cm and a sensitivity of 12mV/Pa; -38.4dB at +/-2dB, 1kHz. Maximum SPL is 142dB before clipping with a dynamic range of 121dB typical. All 4018 floor standing microphone options are terminated with 3-pin XLR and require +48V phantom power for full performance.
4098 CORE tabletop microphone is available in black with a boom length of 43cm, or white with a boom length of 16cm. Each option has three balanced termination options including MicroDot, 3-pin XLR or unterminated cable. The capsule has the ability to handle ‘extremely high SPL’ (135dB maximum) before clipping to offer low distortion whilst retaining intelligibility when a speaker begins to speak ‘very loudly’.
4098 has a frequency range of 20Hz – 20kHz and a sensitivity of 16mV/Pa; -36dB at +/-3dB, 1kHz. Maximum SPL is 135dB before clipping with a dynamic range of 102dB typical. The 3-pin XLR terminated versions require +48V phantom power for full performance.

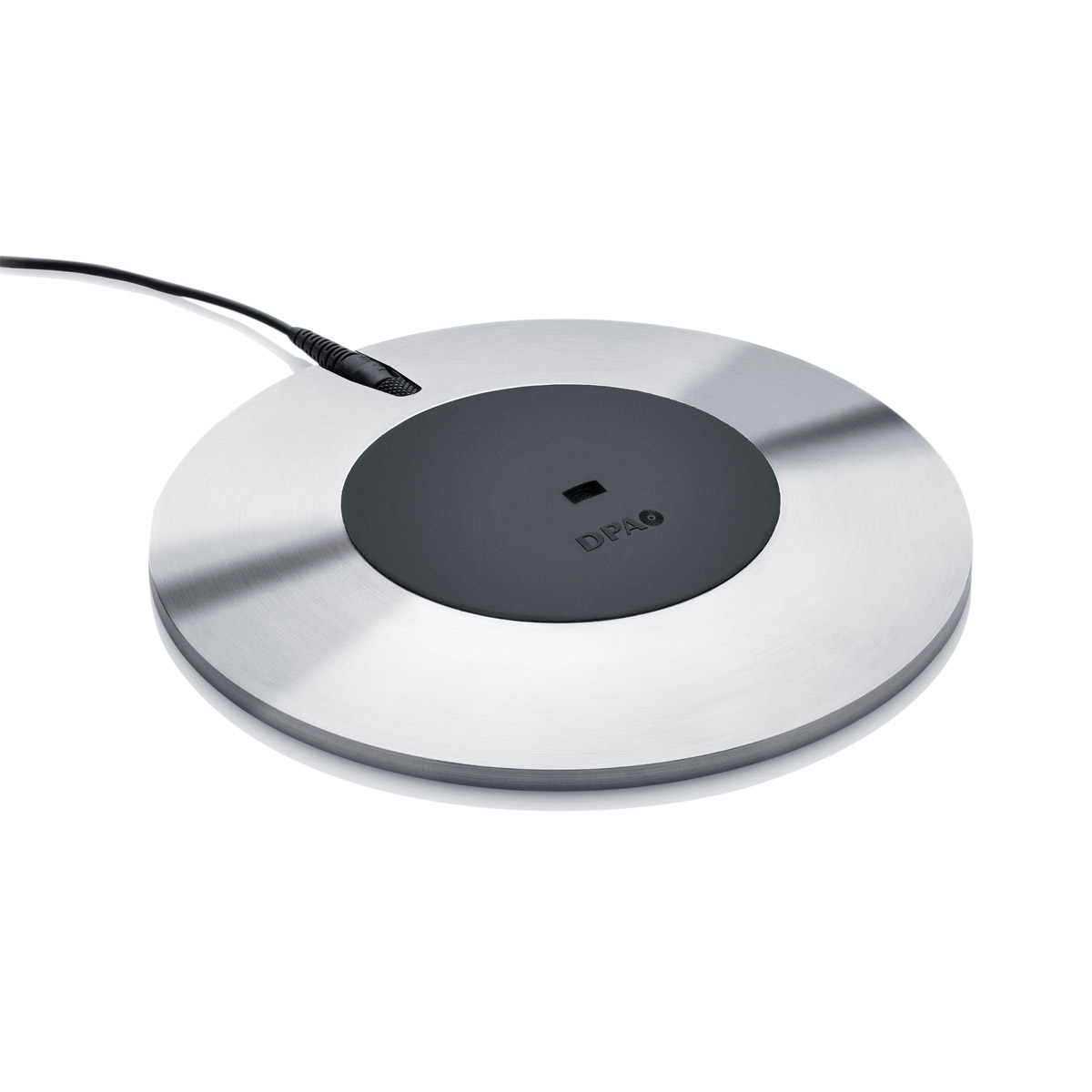

4060 boundary layer microphone has been designed to be placed on a hard, flat surface in boardroom, courtroom and conference facilities, however it is also capable of delivering in teleconferencing application. The microphone has a pre-polarised omnidirectional condenser capsule that is housed in a central rubber disc surrounded with stainless steel base. The detachable 3m cable is terminated with 3-pin XLR output connector, with a MicroDot connector to connect to the microphone base. Optional CM22 cables can be used in conjunction with MicroDot adaptors to enable connectivity to wireless systems.
Frequency response: 20Hz – 20kHz; 20Hz – 14kHz, +/-2dB. Sensitivity: 20mV/Pa, -34dB re. 1V/Pa. Signal to noise ratio: 71dB, A weighted at 1kHz. Total harmonic distortion: Less than 1% up to 123dB SPL. Dynamic range: 100dB typical. Maximum SPL: 134dB.
Adapters
These adapters allow DPA miniature microphones to be connected to various radio microphone transmitters or a standard 48V phantom powered XLR connector. Note that the adapters contain circuitry to pass the correct supply voltage to the microphone, so may not be suitable for use with other miniature microphones. Adapters are available for most UHF transmitters. If an adapter is required for a transmitter not listed here, please contact Technical Support.
