SONY LAVALIER MICROPHONES

22 items
SONY ECM-44B MICROPHONE Lapel, omni-directional, with battery power unit, 3-pin XLR, black
SONY ECM-44B MICROPHONE Lapel, omni-directional, with battery power unit, 3-pin XLR, blackSONY ECM-44B MICROPHONE Lapel, omni-directional, with battery power unit, 3-pin XLR, blackSONY ECM-44BC MICROPHONE Lapel, omni-directional, 4-pin Hirose SCM connector, blackSONY ECM-77B MICROPHONE Lapel, omni-directional, with power unit, battery/12-48V, 3-pin XLR, blackSONY ECM-77B4F MICROPHONE Lapel, omni-directional, TA4F connector, blackSONY ECM-77BMP MICROPHONE Lapel, omni-directional, 3.5mm screw jack connector, blackSONY ECM-77BPT MICROPHONE Lapel, omni-directional, no connector, blackSONY ECM-90BC MICROPHONE Lapel, miniature, omni-directional, 4-pin Hirose SCM connector, black+9SONY ECM-90LM MICROPHONE Lapel, miniature, omni-directional, 3-pin Lemo connector, blackSONY ECM-88B MICROPHONE Lapel, omni-directional, with power unit, battery or 12-48V, blackSONY ECM-88B MICROPHONE Lapel, omni-directional, with power unit, battery or 12-48V, blackSONY ECM-88BC MICROPHONE Lapel, omni-directional, for WRT-8B, 822B radiomic, Hirose, blackSONY A4510056A REPLACEMENT CAPSULE For ECM44B microphoneSONY A-2225-915-A REPLACEMENT CAPSULE For ECM77B microphoneSONY ECM-166BC MICROPHONE Lapel, uni-directional, for WRT-8B, 822B radiomic, Hirose, blackSONY ECM-55B MICROPHONE Lapel, omni-directional, with power unit, battery or 12-48V, blackSONY ECM-66B MICROPHONE Lapel, uni-directional, with power unit, battery or 12-48V, black

The Sony ECM series of lavalier (tie-clip) microphones are well established as some of the most popular lavalier types in use. Canford normally holds all the popular microphones and their wide range of accessories as stock items. See Sony Microphones - Accessories for further details of the accessories. Brochures with technical data are available on request.

ECM44

Budget omnidirectional lavalier, suitable for broadcast, video, and a variety of sound reinforcement applications, including lectures, worship, presentations and demonstrations. Diameter is 6.6mm diameter, length 14.5mm, capsule weight 2.0g. Frequency response 40-15000Hz. Supplied with single and dual horizontal clip, vertical clip, case and foam windshield giving excellent wind-noise reduction.

Versions
ECM44B Black finish and supplied connected to a pre-amplifier housed in a separate barrel, with balanced XLR output. Powered by internal battery (type AA, approximate battery life 5,000 hours). No phantom power option.
ECM44BC Terminated in Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply.
ECM44BMP Terminated in Sony 3.5mm locking jack for use with Sony radio-microphones.

ECM77

Ultra-miniature, 5.6mm diameter, 12.5mm length, weight 1.5g. Extended frequency response (40-20000Hz) is enabled by new developments in mechanical and electronic construction. Intended for TV and stage applications, where the highest quality inconspicuous microphone is required. Even when hidden inside costumes, the carefully-tailored frequency response ensures detailed voice pick-up. Omnidirectional polar pattern. Supplied with single and dual horizontal clip, vertical clip, case and foam windshield giving excellent wind-noise reduction.

Versions
ECM77B Terminated with a pre-amplifier housed in a separate barrel, with balanced XLR output. Powered by internal battery (type AA, approximate battery life 5,000 hours) or 12-48V phantom power. Colour: black.

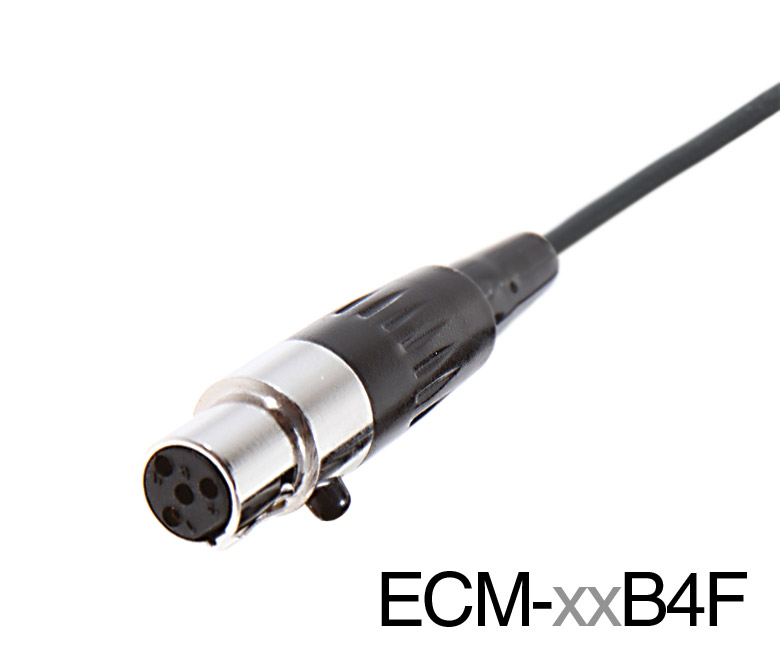

ECM77B4F Terminated with Tiny-XLR 4-pin female connector for use with Shure UHF-R radio microphones. Colour: black.
ECM77BC Terminated with Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply. Colour: black.

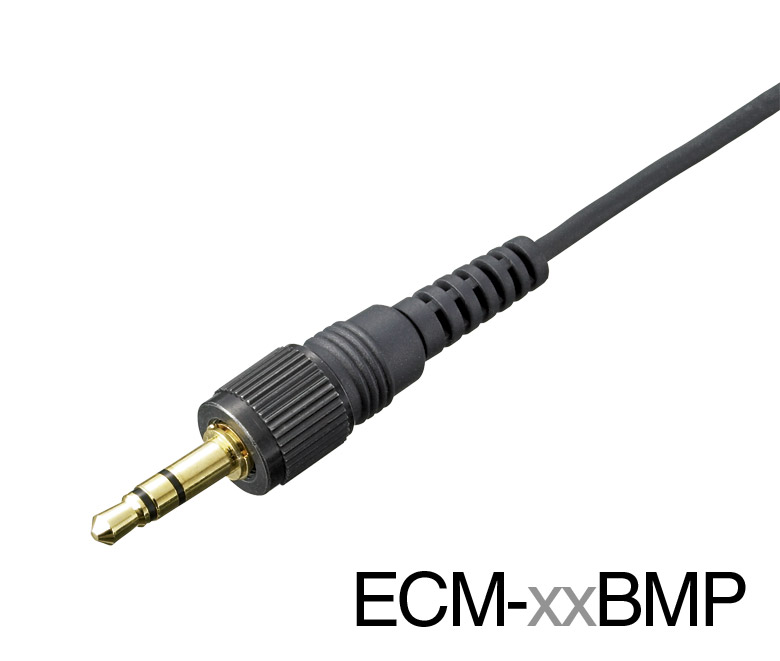

ECM77BMP Terminated in Sony 3.5mm locking jack for use with Sony radio-microphones. Colour: black.
ECM77LM Terminated with Lemo 3-pin connector for use with Sennheiser radiomics
ECM77BML8 Terminated with Lemo 8-pin connector for use with Micron radiomics

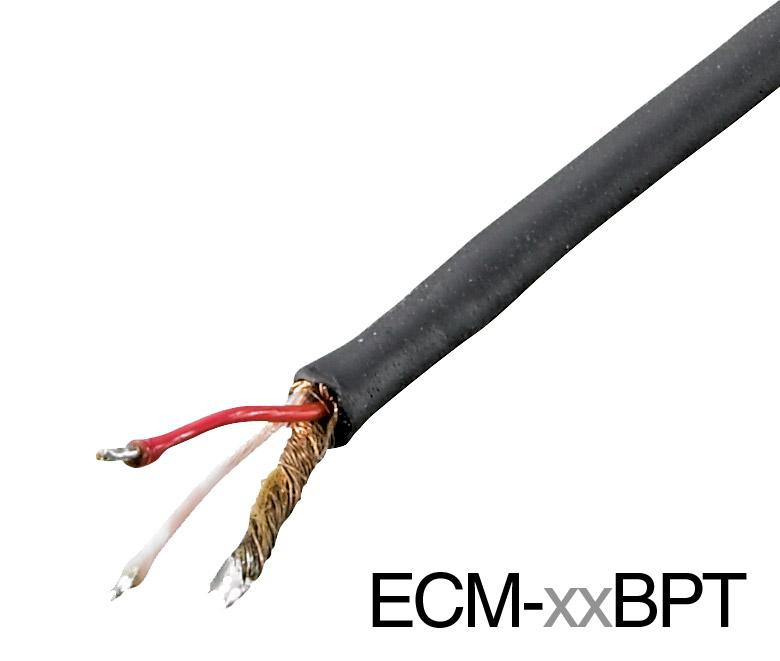

ECM77BPT Supplied with no connector for direct connection to radiomic transmitters.

Canford can supply ECM77BPT terminated for a variety of radio transmitters to special order. Please ask Technical Support for information. Colour: black.

ECM88Discontinued

An omnidirectional, miniature, full frequency-response (20-20000Hz) lavalier microphone with a special design which really does almost eliminate handling and popping noise. The sealed dual diaphragm also reduces susceptibility to sweat, make-up and rain. The small size (3.5mm diameter, 16.8mm length) and genuinely omni-directional response make this microphone suitable for broadcast, theatre and high-quality presentations. Impedance 100 ohms, dynamic range >99dB, S/N (A wtd) >68dB.

Versions
ECM88B Terminated with Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply. Supplied boxed with DC-78, SAD-V88B and SAD-W88BL clip microphone holders and foam windshield. Powered by internal battery (type AA, approximate battery life 6,000 hours) or 12-48V phantom power. Colour: black.
ECM88BC Terminated with Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply (not included). Supplied with SAD-H88B and SAD-V88B clip microphone holders and foam windshield. Colour: black.

ECM90

An ‘ultra-miniature’ lavalier microphone that measures 20.5mm in length and 3.5mm in diameter, and weighs only 1g. The omni-directional capsule is shielded to reduce risk of interference when in use with digital wireless systems, and the 1.2m fixed cable is either terminated with 4-pin Hirose or 3-pin Lemo connector (see versions below). Frequency response is 20Hz to 20kHz with a ‘flat’ curve providing ‘natural sound reproduction’.

Versions
ECM90BC Terminated in Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply
ECM90LM Terminated in 3-pin Lemo connector for use with Sony Generation 3 DWX, Sennheiser, and Shure radiomics.
Description Price $
ex. VAT 		Add to basket
Delivery
SONY ECM-44B MICROPHONE Lapel, omni-directional, with battery power unit, 3-pin XLR, black Black Stock code: 91-902
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
$352.39
SONY ECM-44BC MICROPHONE Lapel, omni-directional, 4-pin Hirose SCM connector, black Black Stock code: 91-915
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
$209.34
SONY ECM-44BMP MICROPHONE Lapel, omni-directional, 3.5mm screw jack connector, black Black Stock code: 91-916
Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
$201.48
SONY ECM-77B MICROPHONE Lapel, omni-directional, with power unit, battery/12-48V, 3-pin XLR, black Black Stock code: 91-908
19 in stock Need more?
$654.21
SONY ECM-77B4F MICROPHONE Lapel, omni-directional, TA4F connector, black Black Stock code: 91-906
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
$444.48
SONY ECM-77BC MICROPHONE Lapel, omni-directional, 4-pin Hirose SCM connector, black Black Stock code: 91-910
3 in stock Need more?
$395.23
SONY ECM-77BMP MICROPHONE Lapel, omni-directional, 3.5mm screw jack connector, black Black Stock code: 91-911
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
$395.23
SONY ECM-77LM MICROPHONE Lapel, omni-directional, 3-pin Lemo connector, black Black Stock code: 91-390
12 in stock Need more?
$395.23
SONY ECM-77BPT MICROPHONE Lapel, omni-directional, no connector, black Black Stock code: 91-909
8 in stock Need more?
$385.01
SONY ECM-90BC MICROPHONE Lapel, miniature, omni-directional, 4-pin Hirose SCM connector, black Black Stock code: 91-903
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
$528.06
SONY ECM-90LM MICROPHONE Lapel, miniature, omni-directional, 3-pin Lemo connector, black Black Stock code: 91-904
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
$528.06
SONY A4510056A REPLACEMENT CAPSULE For ECM44B microphone Stock code: 91-992
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
$258.99

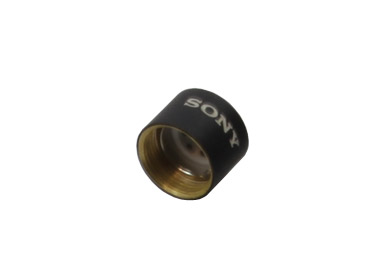

SONY A-2225-915-A REPLACEMENT CAPSULE For ECM77B microphone Stock code: 91-998
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
$252.31

Discontinued products
SONY ECM-77BML8 MICROPHONE Lapel, omni-directional, 8-pin Lemo connector, black Black Stock code: 91-391
Discontinued. Please contact Technical Support for alternatives.

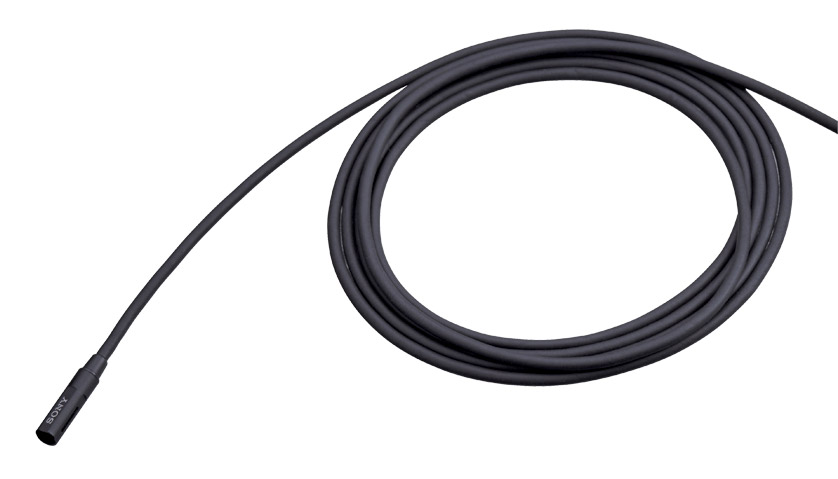

SONY ECM-88B MICROPHONE Lapel, omni-directional, with power unit, battery or 12-48V, black Black Stock code: 91-929
No longer manufactured. Please contact Technical Support for alternatives.
SONY ECM-88BC MICROPHONE Lapel, omni-directional, for WRT-8B, 822B radiomic, Hirose, black Black Stock code: 91-925
No longer manufactured. Please contact Technical Support for alternatives.
SONY A4510051A REPLACEMENT CAPSULE For ECM55B microphone Stock code: 91-994
No longer manufactured. Please contact Technical Support for alternatives.
SONY REPLACEMENT CAPSULE For ECM66B microphone Stock code: 91-996
No longer manufactured. Unfortunately we are not currently able to offer an alternative.

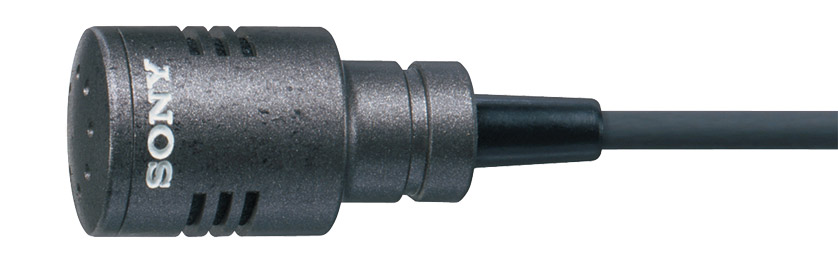

SONY ECM-166BC MICROPHONE Lapel, uni-directional, for WRT-8B, 822B radiomic, Hirose, black Black Stock code: 91-945
Discontinued. Please contact Technical Support for alternatives.
SONY ECM-166BMP MICROPHONE Lapel, uni-directional, for UWP series radiomic, screw jack, black Black Stock code: 91-946
No longer manufactured. Please contact Technical Support for alternatives.
SONY ECM-55B MICROPHONE Lapel, omni-directional, with power unit, battery or 12-48V, black Black Stock code: 91-948
Discontinued. Please contact Technical Support for alternatives.

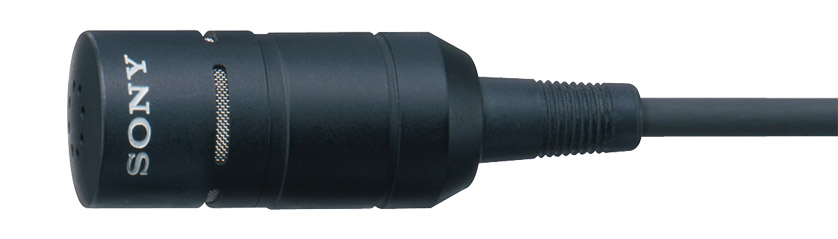

SONY ECM-66B MICROPHONE Lapel, uni-directional, with power unit, battery or 12-48V, black Black Stock code: 91-949
Discontinued. Please contact Technical Support for alternatives.
