The RPP 'Easyclip' modular connection system is an extensive, unified range of faceplates and snap-in modules. Modules are 50mm x 50mm or 25mm x 50mm according to their function, and are available in white or black. A wide range of plate styles and finishes is offered, and modules can be combined to provide connections exactly as required for each location.
'Full' modules are 50mm x 50mm, 'half' modules are 25mm x 50mm. Blank plates are available to fill unused spaces. Modules from the Ikon audio-visual connector range are also suitable for use in this system.

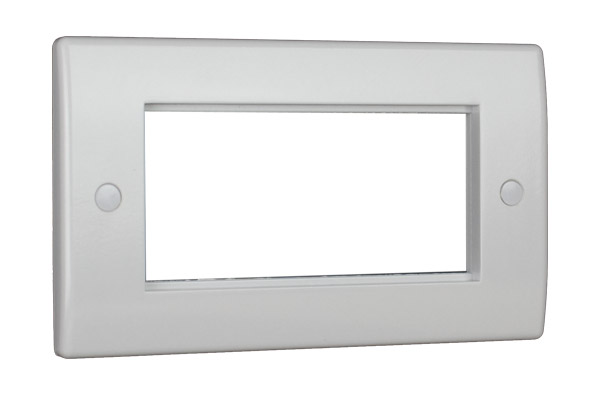

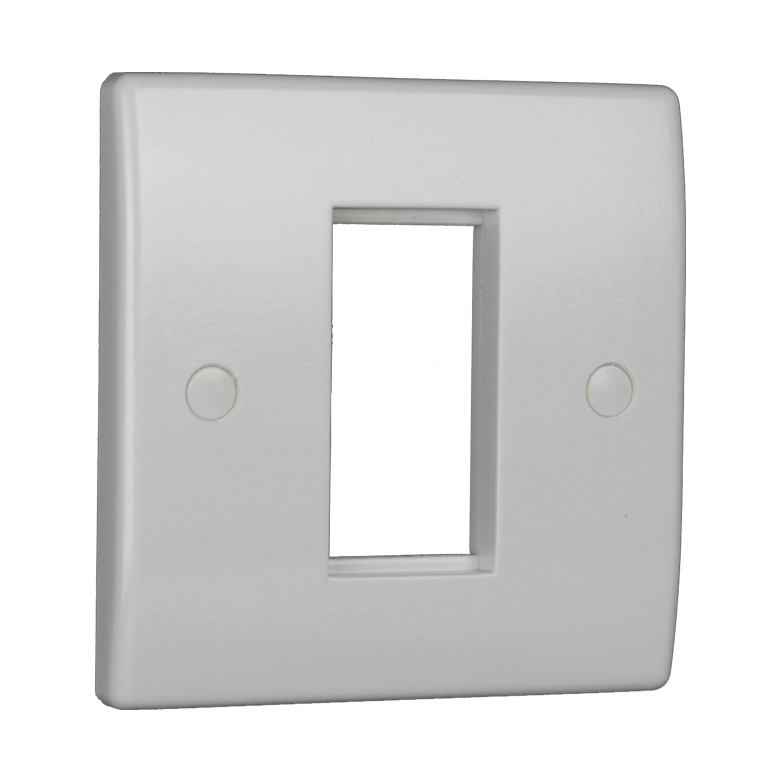

Plastic plates in traditional 1-gang and 2-gang sizes are available in three styles - 'contoured', a gently profiled shape that is in keeping with many manufacturers' styles of connection plates; 'deep', a high-profiled shape that is useful where back box depth is limited, and 'square cornered', a more traditional design.
Raised metal mounting plates are a profiled, pressed, sheet-steel design, matching many manufacturers' ranges of connection plates. These are available in traditional 1-gang sizes, in brushed stainless steel finish. The aperture in the plate is edged with a white trim, which should be chosen to match the colour of the modules being used.
2-gang plates are available in the 'metalclad' surface-mount style, supplied complete with surface back box.

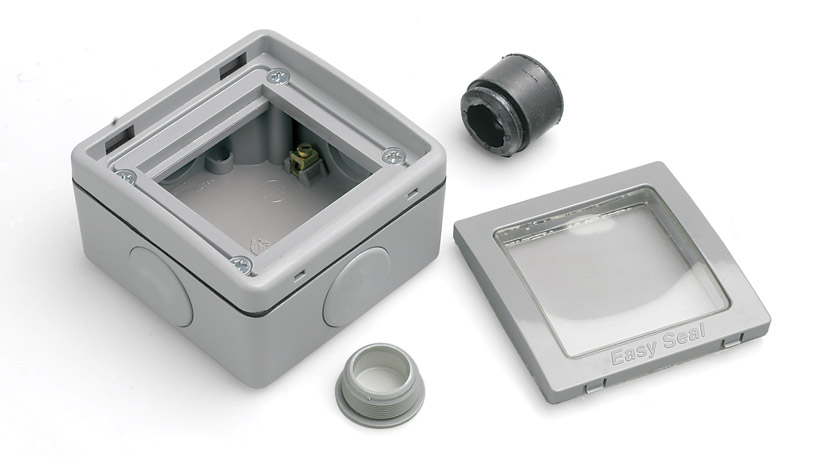

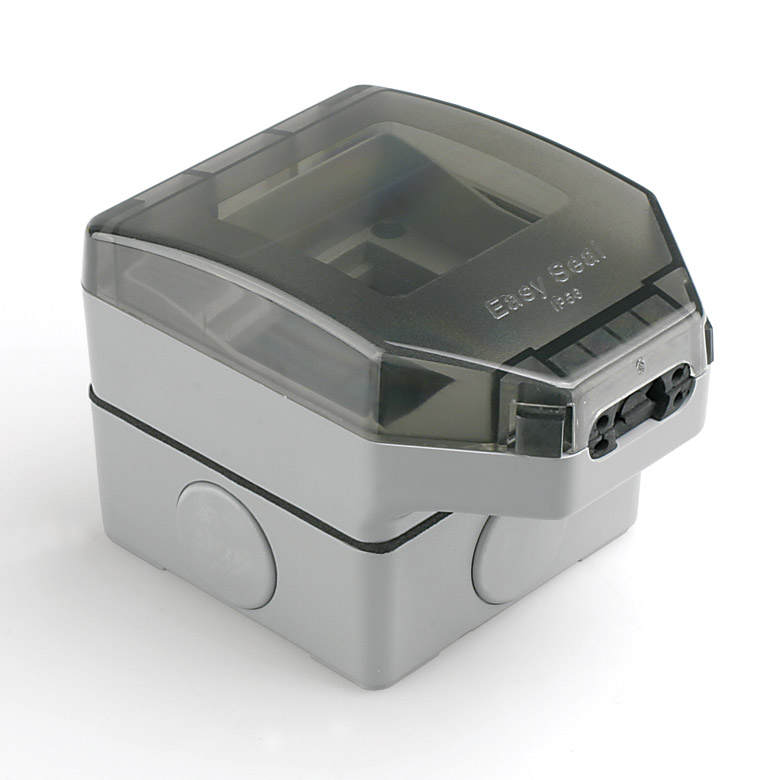

Moulded enclosures, to IP56, enable outdoor mounting applications.
These are offered with a cable outlet, suitable for use with the lid closed with right-angle cable exit, or without, suitable for switches or applications where the lid can remain open when connection is in use. The aperture in the plate is edged with a white plastic trim, white modules should be used with this design.
Included accessories: Plate mounting screws. Back boxes are included only when specified above.
For suitable modules from RPP, see RPP EASYCLIP MODULAR CONNECTION SYSTEM - Modules for further details.
