PCE INDUSTRIAL AC MAINS POWER CONNECTORS

40 items
PCE 013-6 SPLASHPROOF 16A CABLE PLUG, Straight, IP44, blue/grey
PCE 013-6 SPLASHPROOF 16A CABLE PLUG, Straight, IP44, blue/greyPCE 6132-6 WATERTIGHT 16A PANEL MOUNTING APPLIANCE INLET, Straight, IP67, blue/greyPCE 513-6 SPLASHPROOF 16A WALL MOUNTING APPLIANCE INLET, Straight, IP44, blue/greyPCE 777132-6 WATERTIGHT 16A PANEL MOUNTING APPLIANCE INLET, Angled, IP67, blue/greyPCE 213-6 SPLASHPROOF 16A CABLE SOCKET, Straight, IP44, blue/greyPCE 1132-6 WATERTIGHT 16A WALL MOUNTING SOCKET, Straight, IP67, blue/greyPCE 313-6 SPLASHPROOF 16A PANEL MOUNTING SOCKET, Straight, IP44, blue/greyPCE 4132-6 WATERTIGHT 16A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey+12PCE 023-6 SPLASHPROOF 32A CABLE PLUG, Straight, IP44, blue/greyPCE 6232-6 WATERTIGHT 32A PANEL MOUNTING APPLIANCE INLET, Straight, IP67, blue/greyPCE 523-6 SPLASHPROOF 32A WALL MOUNTING APPLIANCE INLET, Straight, IP44, blue/greyPCE 777232-6 WATERTIGHT 32A PANEL MOUNTING APPLIANCE INLET, Angled, IP67, blue/greyPCE 223-6 SPLASHPROOF 32A CABLE SOCKET, Straight, IP44, blue/greyPCE 1232-6 WATERTIGHT 32A WALL MOUNTING SOCKET, Straight, IP67, blue/greyPCE 323-6 SPLASHPROOF 32A PANEL MOUNTING SOCKET, Straight, IP44, blue/greyPCE 4232-6 WATERTIGHT 32A PANEL MOUNTING SOCKET, Angled, IP67, blue/greyPCE 033-6 WATERTIGHT 63A CABLE PLUG, Straight, IP67, blue/greyPCE 733-6 WATERTIGHT 63A PANEL MOUNTING APPLIANCE INLET, Angled, IP67, blue/greyPCE 2335-6 WATERTIGHT 63A CABLE SOCKET, Straight, IP67, blue/greyPCE 4335-6 WATERTIGHT 63A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey

Industrial plugs, sockets and appliance inlets from PCE designed to meet BS EN 60309 - 1:1999, BS EN 60309 - 2:1999 standards.

Available in splashproof IP44 or watertight IP67 variants the standard blue/grey connector housing is manufactured from Polycaprolactam (PA6) with brass contact pins and are rated 220 - 240V AC, 16 amp, 32 amp or 63 amp, 2-pole plus earth.

For connectors with black housing see PCE INDUSTRIAL AC MAINS POWER CONNECTORS - Midnight range.

Model Rating Mounting Type Straight/angled IP rating
013-6 16A Cable Plug Straight IP44
0132-6 16A Cable Plug Straight IP67
613-6 16A Panel Appliance inlet Straight IP44
6132-6 16A Panel Appliance inlet Straight IP67
513-6 16A Wall Appliance inlet Straight IP44
5132-6K 16A Wall Appliance inlet Straight IP67
77713-6 16A Panel Appliance inlet Angled IP44
777132-6 16A Panel Appliance inlet Angled IP67
213-6 16A Cable Socket Straight IP44
2132-6 16A Cable Socket Straight IP67
113-6 16A Wall Socket Straight IP44
1132-6 16A Wall Socket Straight IP67
313-6 16A Panel Socket Straight IP44
3132-6 16A Panel Socket Straight IP67
413-6 16A Panel Socket Angled IP44
4132-6 16A Panel Socket Angled IP67
023-6 32A Cable Plug Straight IP44
0232-6 32A Cable Plug Straight IP67
623-6 32A Panel Appliance inlet Straight IP44
6232-6 32A Panel Appliance inlet Straight IP67
523-6 32A Wall Appliance inlet Straight IP44
5232-6 32A Wall Appliance inlet Straight IP67
77723-6 32A Panel Appliance inlet Angled IP44
777232-6 32A Panel Appliance inlet Angled IP67
223-6 32A Cable Socket Straight IP44
2232-6 32A Cable Socket Straight IP67
123-6 32A Wall Socket Straight IP44
1232-6 32A Wall Socket Straight IP67
323-6 32A Panel Socket Straight IP44
3232-6 32A Panel Socket Straight IP67
423-6 32A Panel Socket Angled IP44
4232-6 32A Panel Socket Angled IP67
033-6 63A Cable Plug Straight IP67
633-6 63A Panel Appliance inlet Straight IP67
533-6 63A Wall Appliance inlet Straight IP67
733-6 63A Panel Appliance inlet Angled IP67
2335-6 63A Cable Socket Straight IP67
1335-6 63A Wall Socket Straight IP67
3335-6 63A Panel Socket Straight IP67
4335-6 63A Panel Socket Angled IP67
Description Price $
ex. VAT 		Add to basket
Delivery

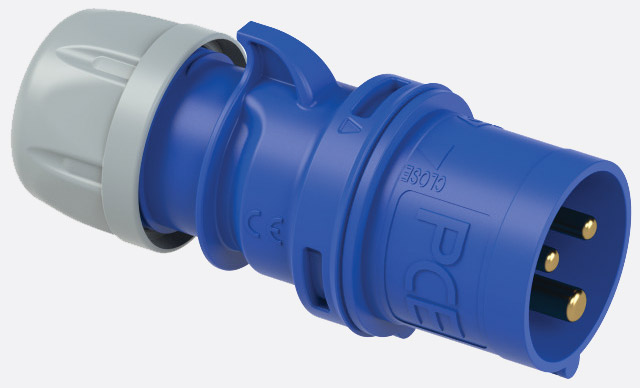

PCE 013-6 SPLASHPROOF 16A CABLE PLUG, Straight, IP44, blue/grey BlueGrey Stock code: 42-761
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $2.07
10+ $2.02
PCE 0132-6 WATERTIGHT 16A CABLE PLUG, Straight, IP67, blue/grey BlueGrey Stock code: 42-762
3 in stock Need more?
1+ $11.88
10+ $11.58
PCE 613-6 SPLASHPROOF 16A PANEL MOUNTING APPLIANCE INLET, Straight, IP44, blue/grey BlueGrey Stock code: 42-763
4 in stock Need more?
1+ $7.09
10+ $6.91

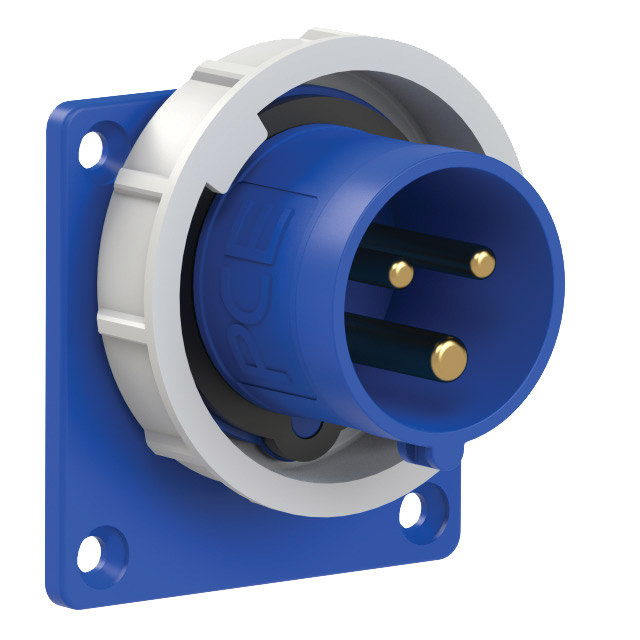

PCE 6132-6 WATERTIGHT 16A PANEL MOUNTING APPLIANCE INLET, Straight, IP67, blue/grey BlueGrey Stock code: 42-764
3 in stock Need more?
1+ $13.50
10+ $13.17

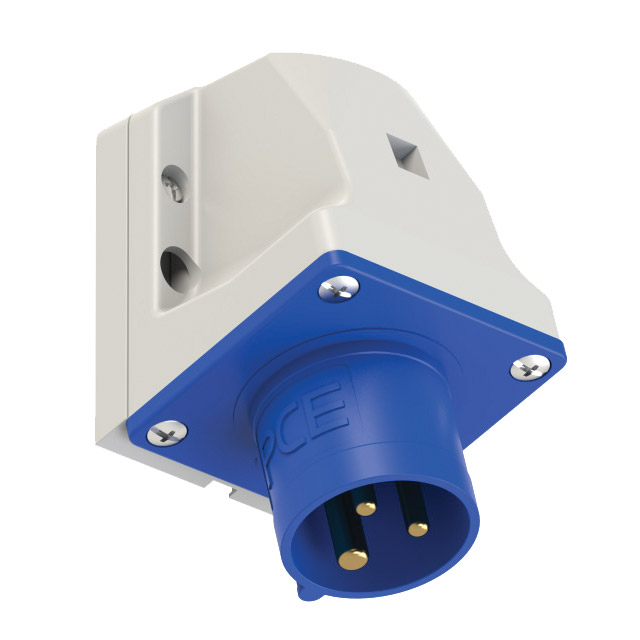

PCE 513-6 SPLASHPROOF 16A WALL MOUNTING APPLIANCE INLET, Straight, IP44, blue/grey BlueGrey Stock code: 42-765
2 in stock Need more?
1+ $9.22
10+ $8.99
PCE 5132-6K WATERTIGHT 16A WALL MOUNTING APPLIANCE INLET, Straight, IP67, blue/grey BlueGrey Stock code: 42-766
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $21.21
10+ $20.68
PCE 77713-6 SPLASHPROOF 16A PANEL MOUNTING APPLIANCE INLET, Angled, IP44, blue/grey BlueGrey Stock code: 42-767
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $7.87
10+ $7.68
PCE 777132-6 WATERTIGHT 16A PANEL MOUNTING APPLIANCE INLET, Angled, IP67, blue/grey BlueGrey Stock code: 42-768
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $14.63
10+ $14.26

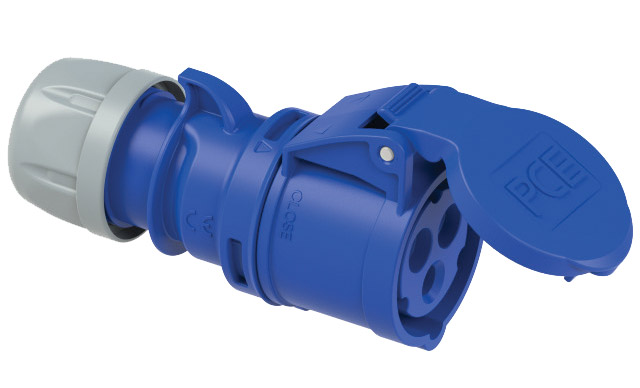

PCE 213-6 SPLASHPROOF 16A CABLE SOCKET, Straight, IP44, blue/grey BlueGrey Stock code: 42-769
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $3.52
10+ $3.43
PCE 2132-6 WATERTIGHT 16A CABLE SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-770
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $13.96
10+ $13.62
PCE 113-6 SPLASHPROOF 16A WALL MOUNTING SOCKET, Straight, IP44, blue/grey BlueGrey Stock code: 42-771
4 in stock Need more?
1+ $9.06
10+ $8.83
PCE 1132-6 WATERTIGHT 16A WALL MOUNTING SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-772
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $17.96
10+ $17.51

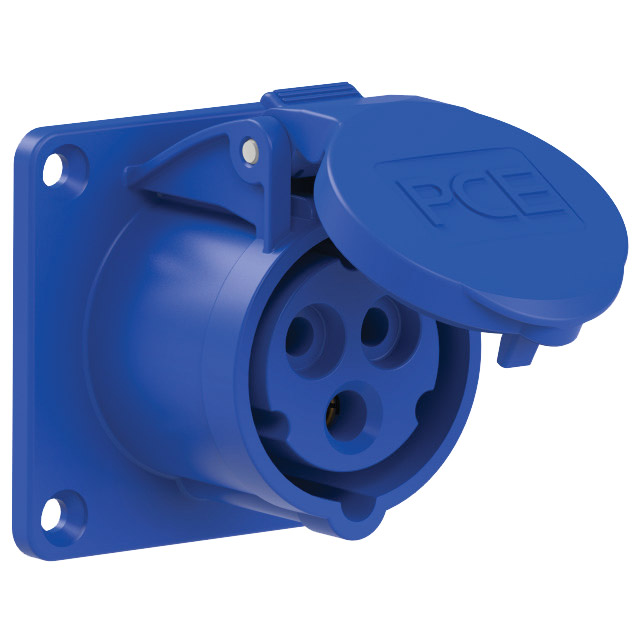

PCE 313-6 SPLASHPROOF 16A PANEL MOUNTING SOCKET, Straight, IP44, blue/grey BlueGrey Stock code: 42-773
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $4.21
10+ $4.11
PCE 3132-6 WATERTIGHT 16A PANEL MOUNTING SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-774
4 in stock Need more?
1+ $11.88
10+ $11.58
PCE 413-6 SPLASHPROOF 16A PANEL MOUNTING SOCKET, Angled, IP44, blue/grey BlueGrey Stock code: 42-775
8 in stock Need more?
1+ $6.22
10+ $6.07
PCE 4132-6 WATERTIGHT 16A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey BlueGrey Stock code: 42-776
1 in stock Need more?
1+ $14.96
10+ $14.59
PCE 023-6 SPLASHPROOF 32A CABLE PLUG, Straight, IP44, blue/grey BlueGrey Stock code: 42-777
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $7.97
10+ $7.77
PCE 0232-6 SPLASHPROOF 32A CABLE PLUG, Straight, IP67, blue/grey BlueGrey Stock code: 42-778
1 in stock Need more?
1+ $14.18
10+ $13.82
PCE 623-6 SPLASHPROOF 32A PANEL MOUNTING APPLIANCE INLET, Straight, IP44, blue/grey BlueGrey Stock code: 42-779
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
1+ $9.22
10+ $8.99

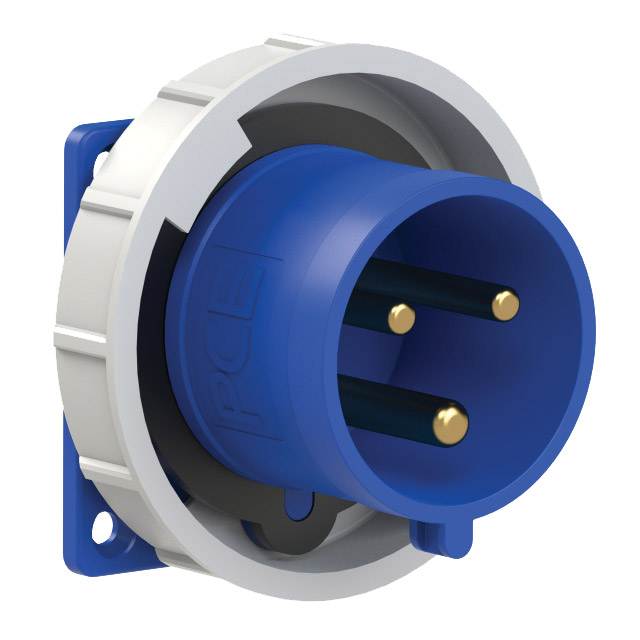

PCE 6232-6 WATERTIGHT 32A PANEL MOUNTING APPLIANCE INLET, Straight, IP67, blue/grey BlueGrey Stock code: 42-780
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $24.51
10+ $23.90
PCE 523-6 SPLASHPROOF 32A WALL MOUNTING APPLIANCE INLET, Straight, IP44, blue/grey BlueGrey Stock code: 42-781
3 in stock Need more?
1+ $10.36
10+ $10.10
PCE 5232-6K WATERTIGHT 32A WALL MOUNTING APPLIANCE INLET, Straight, IP67, blue/grey BlueGrey Stock code: 42-782
3 in stock Need more?
1+ $33.65
10+ $32.81
PCE 77723-6 SPLASHPROOF 32A PANEL MOUNTING APPLIANCE INLET, Angled, IP44, blue/grey BlueGrey Stock code: 42-783
5 in stock Need more?
1+ $15.72
10+ $15.32
PCE 777232-6 WATERTIGHT 32A PANEL MOUNTING APPLIANCE INLET, Angled, IP67, blue/grey BlueGrey Stock code: 42-784
3 in stock Need more?
1+ $22.75
10+ $22.18
PCE 223-6 SPLASHPROOF 32A CABLE SOCKET, Straight, IP44, blue/grey BlueGrey Stock code: 42-785
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $9.84
10+ $9.60
PCE 2232-6 WATERTIGHT 32A CABLE SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-786
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $17.63
10+ $17.19
PCE 123-6 SPLASHPROOF 32A WALL MOUNTING SOCKET, Straight, IP44, blue/grey BlueGrey Stock code: 42-787
4 in stock Need more?
1+ $11.88
10+ $11.58
PCE 1232-6 WATERTIGHT 32A WALL MOUNTING SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-788
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $26.09
10+ $25.43
PCE 323-6 SPLASHPROOF 32A PANEL MOUNTING SOCKET, Straight, IP44, blue/grey BlueGrey Stock code: 42-789
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
1+ $11.05
10+ $10.76
PCE 3232-6 WATERTIGHT 32A PANEL MOUNTING SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-790
1 in stock Need more?
1+ $16.45
10+ $16.04
PCE 423-6 SPLASHPROOF 32A PANEL MOUNTING SOCKET, Angled, IP44, blue/grey BlueGrey Stock code: 42-791
4 in stock Need more?
1+ $11.19
10+ $10.91

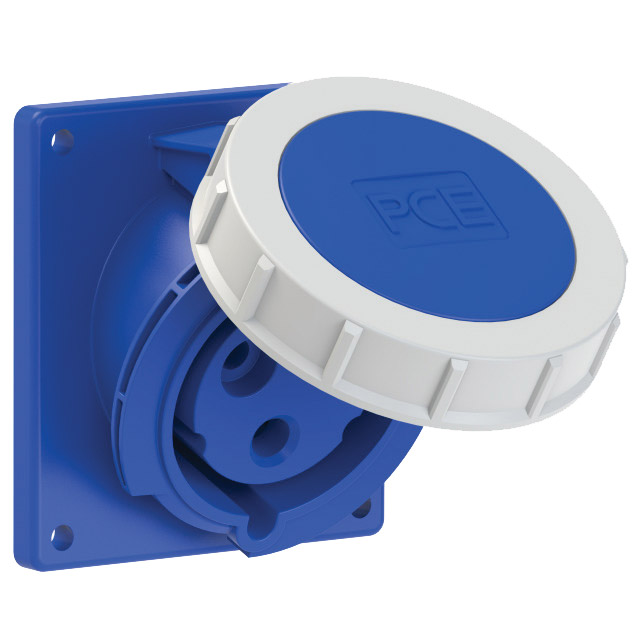

PCE 4232-6 WATERTIGHT 32A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey BlueGrey Stock code: 42-792
1 in stock Need more?
1+ $17.96
10+ $17.51
PCE 033-6 WATERTIGHT 63A CABLE PLUG, Straight, IP67, blue/grey BlueGrey Stock code: 42-793
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $36.33
10+ $35.42
PCE 633-6 WATERTIGHT 63A PANEL MOUNTING APPLIANCE INLET, Straight, IP67, blue/grey BlueGrey Stock code: 42-794
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $60.45
10+ $58.94
PCE 533-6 WATERTIGHT 63A WALL MOUNTING APPLIANCE INLET, Straight, IP67, blue/grey BlueGrey Stock code: 42-795
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $57.01
10+ $55.59

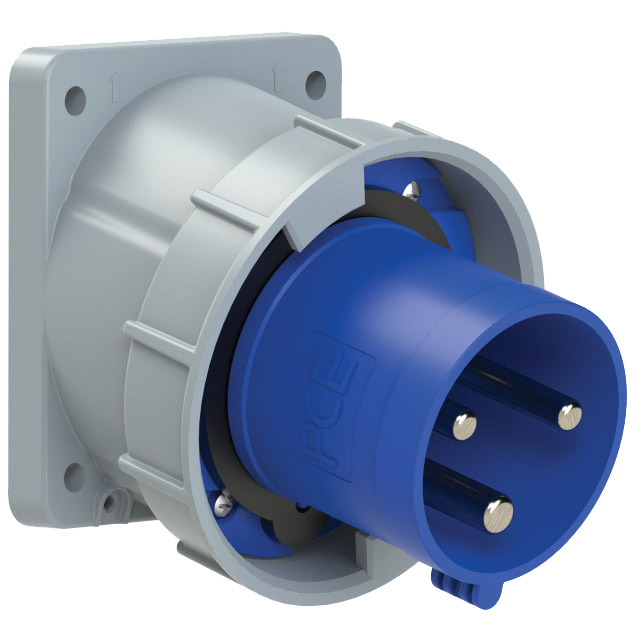

PCE 733-6 WATERTIGHT 63A PANEL MOUNTING APPLIANCE INLET, Angled, IP67, blue/grey BlueGrey Stock code: 42-796
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $59.79
10+ $58.29
PCE 2335-6 WATERTIGHT 63A CABLE SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-797
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $45.20
10+ $44.07
PCE 1335-6 WATERTIGHT 63A WALL MOUNTING SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-798
4 in stock Need more?
1+ $54.39
10+ $53.03
PCE 3335-6 WATERTIGHT 63A PANEL MOUNTING SOCKET, Straight, IP67, blue/grey BlueGrey Stock code: 42-799
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $36.33
10+ $35.42
PCE 4335-6 WATERTIGHT 63A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey BlueGrey Stock code: 42-800
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $36.33
10+ $35.42
