SONY WIRELESS SYSTEMS - DWX Digital Series

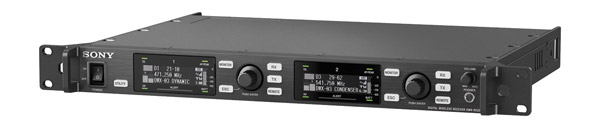

DWR-R03D Fixed, 1U receiver with Dante

This third generation 19-inch rackmount receiver shares much of the functionality of the DWR-R02DN, however notably it is Dante compatible, giving the user the ability to network to a host of Dante compatible audio equipment. The UHF wideband range of this receiver covers 470-714MHz and is adjustable in 25kHz steps. When used with Wireless Studio version 5.2 or newer, and running firmware version 1.20 or newer, the DWR-R03D can continually scan for interference and automatically assign the best frequencies without noticeable dropout.

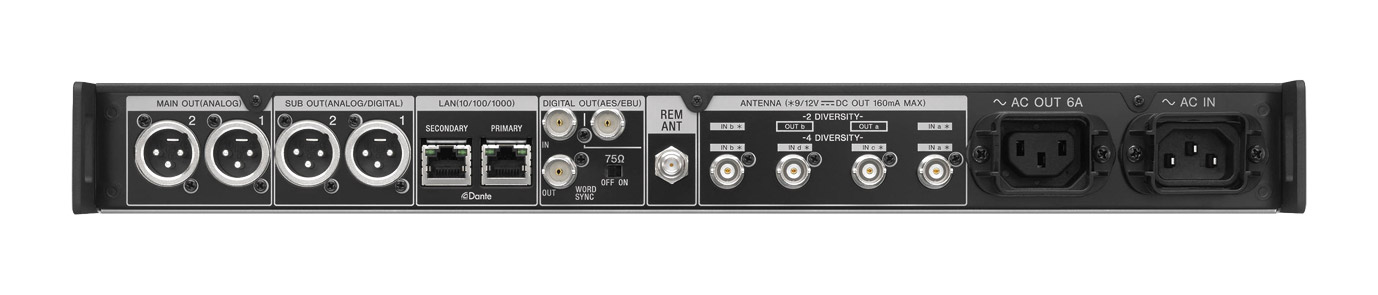

The front facing panel of the DWR-R03D has all user controllers including a rotary/push to enter control, ‘ESC’ (escape) button, and RX, TX, Remote buttons for each of the two channels. Each of the two OLED screens, one for each channel, shows transmitter battery status, channel frequency, name, RF and AF levels along with all menu content. A recessed and latching power switch is located to the left hand side, and a 6.35mm jack headphone output along with volume control are located to the right side. Each channel also has a ‘monitor’ button which is linked to the headphone output. The rear facing panel has all other I/O connectivity including two balanced 3-pin XLR analogue outputs, two 3-pin XLR 110ohm sub outputs in analogue/digital format, digital output on 75ohm BNC-R connection, word clock I/O on 75ohm BNC – syncing to external word clock of 32kHz to 96kHz; antenna I/O for each channel on 50ohm BNC-R, and Dante primary and secondary connections on RJ45. Power is via 100-240V AC IEC connector, and 6A AC output power is on second IEC connector.

Dimensions (W x H x D): 482 x 44 x 335mm. Weight: 3.9kg.

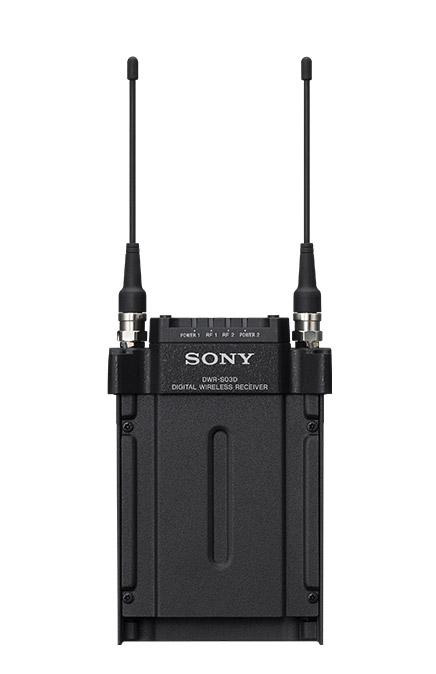

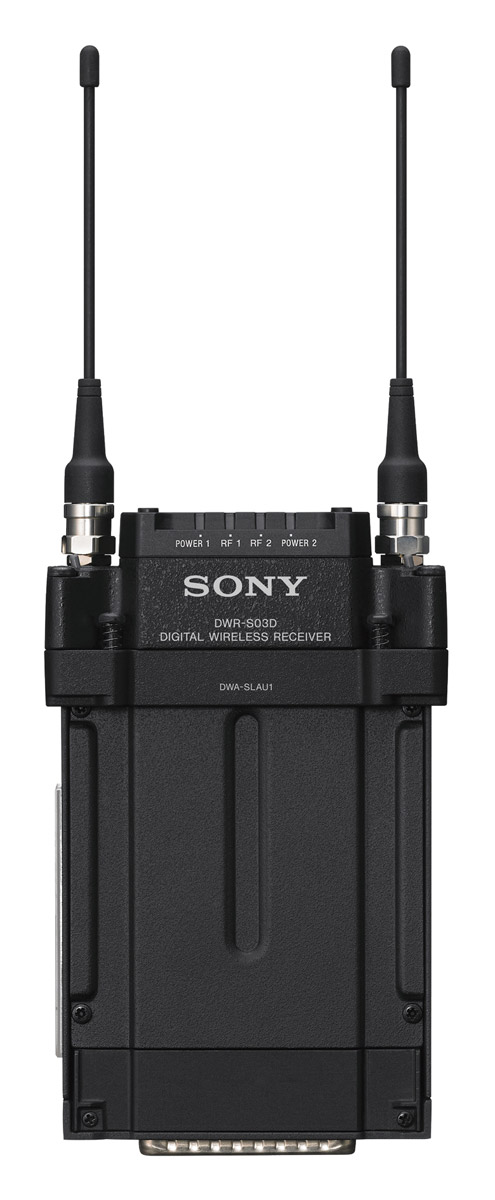

DWR-S03D Slot-in receiver

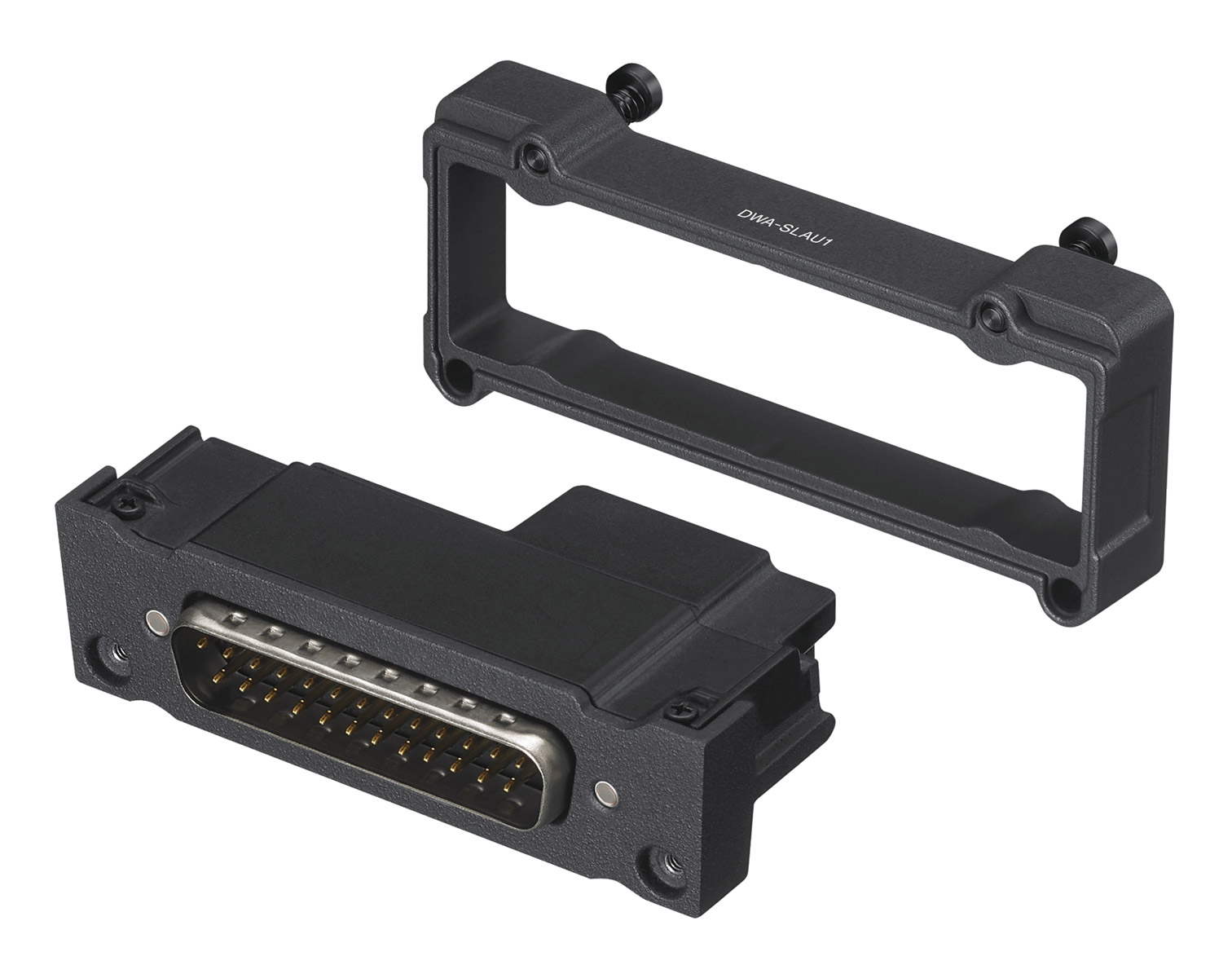

Available in two options, with 15-pin Sony Slot adapter or with 25-pin UniSlot adapter, this two channel slot-in receiver has been designed to slot directly into compatible video camera and camcorders, or mount to a video camera via the DWA-01D or DWA-F01D adapter. It is compatible with all DWX series transmitters and can be powered using 6V to 18V DC. An OLED screen displays current settings and RF/AF reception values. Four codec modes can be used with MODE1 being compatible with first generation DWX-series devices; MODE2 which prioritises short latency and high quality audio and stability; MODE3 which gives additional signal processing to supress noise; and MODE4 which prioritises audio quality.

Available versions

Included accessories: 2x Antenna.

Audio output connector: Reference output level: -40dBu, analogue; -36dBFS/-20dBFS, digital. Dynamic range: 106dB, A-weighted. THD: 0.03% or less. Operating voltage: 6V to 18V DC. Consumption: 3.5W or less, with DWA-SLAS1; 4.0W or less, with DWA-SLAU1. Dimensions (W x H x D): 74 x 108 x 31mm, no adapter; 88 x 119 x 32mm, with DWA-SLAS1; 31 x 74 x 120mm, with DWA-SLAU1. Weight: 125g, no adapter, no antenna; 180g, with DWA-SLAS1 and antenna; 185g, with DWA-SLAS1 and antenna.

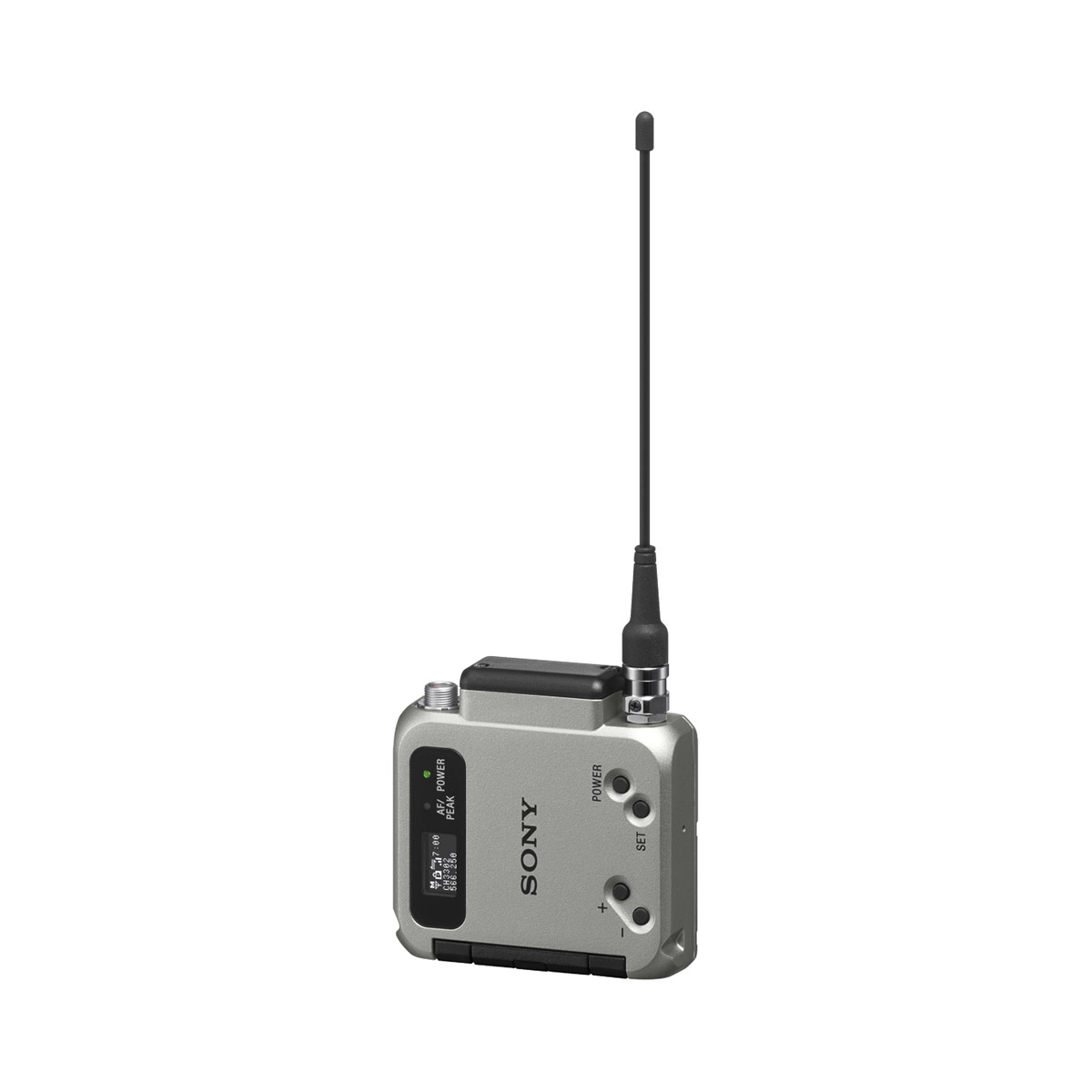

DWT-B03R Micro bodypack transmitter

This third generation DWX bodypack transmitter has been designed for use in theatres, broadcast, and studio based TV production, where lightweight and compact devices are preferred. The magnesium manufactured casing is rain, sweat and spray proof to IPX4/IPX5 ratings. When used with the DWR-R03D, this transmitter has a 148MHz wideband spectrum that is split into two segments; (Low) 470.025MHz to 614MHz, and (High) 566.025MHz to 714MHz. Both low and high bands have step increments of 25kHz.

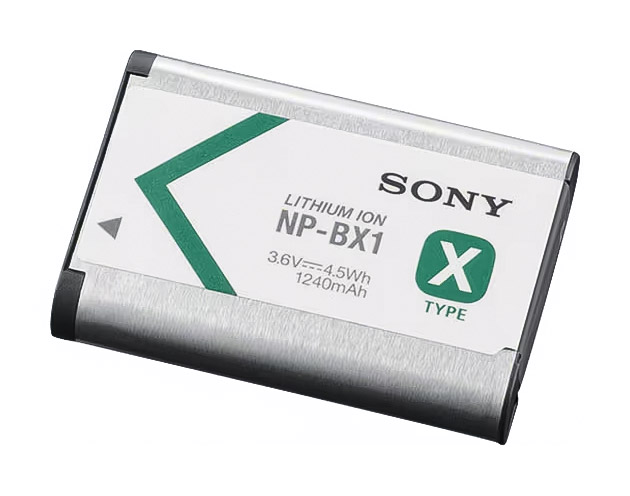

With dimensions of 53 x 60 x 17mm the DWT-B03R is 27% smaller than the DWT-B01N beltpack transmitter. Power is via a single rechargeable Sony NP-BX1 lithium-ion battery, which gives up to 7-hours operation. The battery can be charged directly or remaining inside the DWT-B03R with the BC-DWX1 dual charger. Microphone input is via ‘small 3-pin’ locking connector making it compatible with the ECM77LM lavalier microphone amongst others. The front facing panel has an OLED screen for easy viewing of settings, along with power, set and navigation buttons. The side panel of the unit houses the removable antenna and 3-pin microphone input.

Included accessories: Belt clip, NP-BX1 Li-ion battery, carrying case, scribble sheet, and CD-ROM.

When used with DWR-R03D, codec modes offer the following specifications:

Encryption: AES256bit. Wireless interface: WiDIF-HP. Oscillator type: Crystal-controlled PLL synthesizer. RF power: 2/10/25mW. Maximum input level: -22dBu, mic; +24dBu, line. Audio attenuation range: 0-48dB, in 3-dB steps, MIC input mode only. Frequency response: 20Hz to 22kHz. Dimensions (W x H x D): 53 x 60 x 17mm, excluding antenna. Weight: 99g, including batteries.

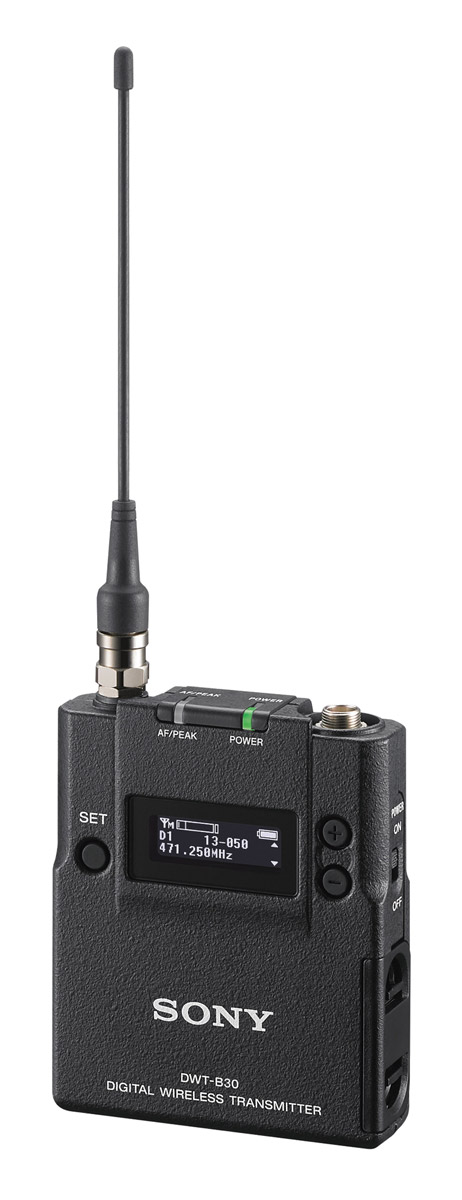

DWT-B30 Beltpack transmitter

DWT-B30L and DWT-B30/H (low band and high band) has the same feature set as DWT-B03R however it is housed in a larger format case. The casing used has the same dimensions as the older DWT-B01N.

RF power: 2/10/25mW. Maximum input level: -22dBu, mic; +24dBu, line. Audio attenuation range: 0-48dB, in 3-dB steps, MIC input mode only. Frequency response: 20Hz to 22kHz. Dimensions (W x H x D): 63 x 17 x 73mm. Weight: 125g, including batteries.

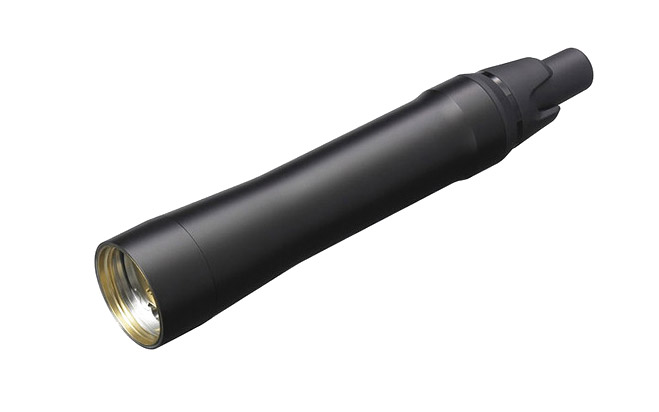

DWM-02N Handheld transmitter

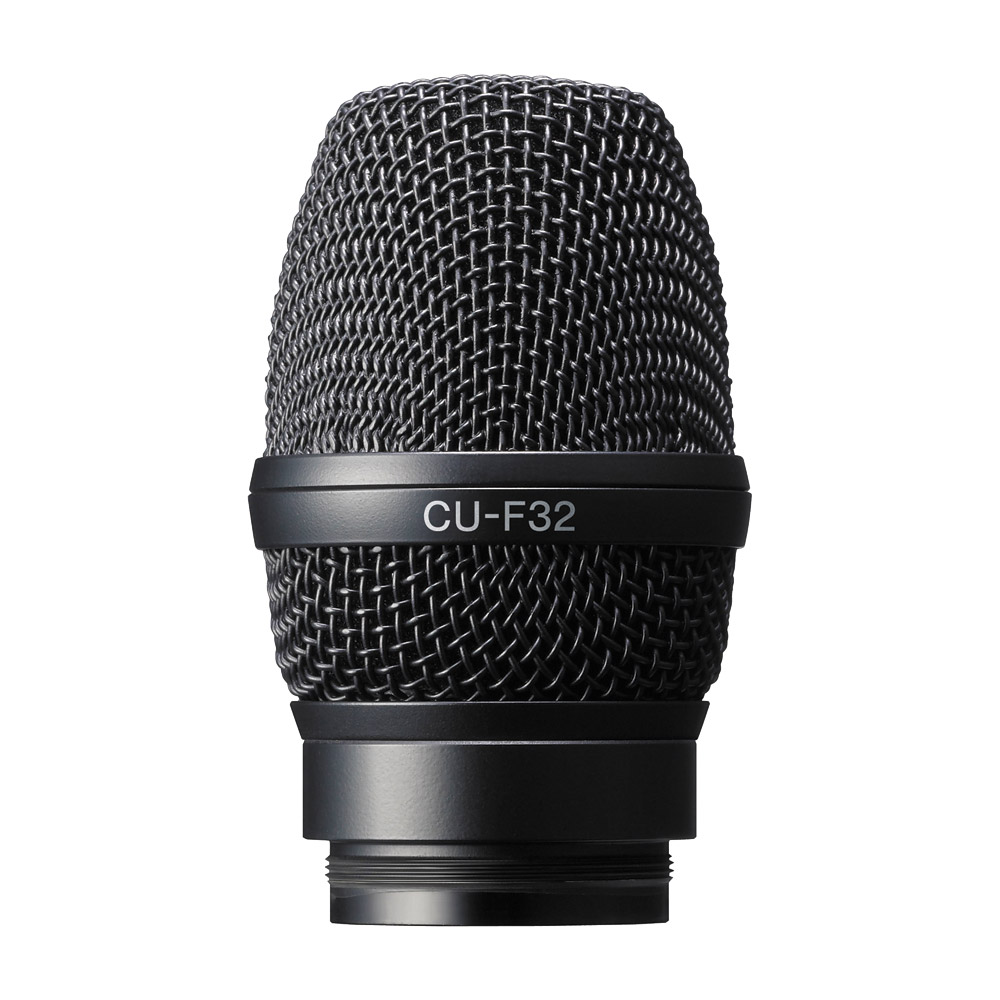

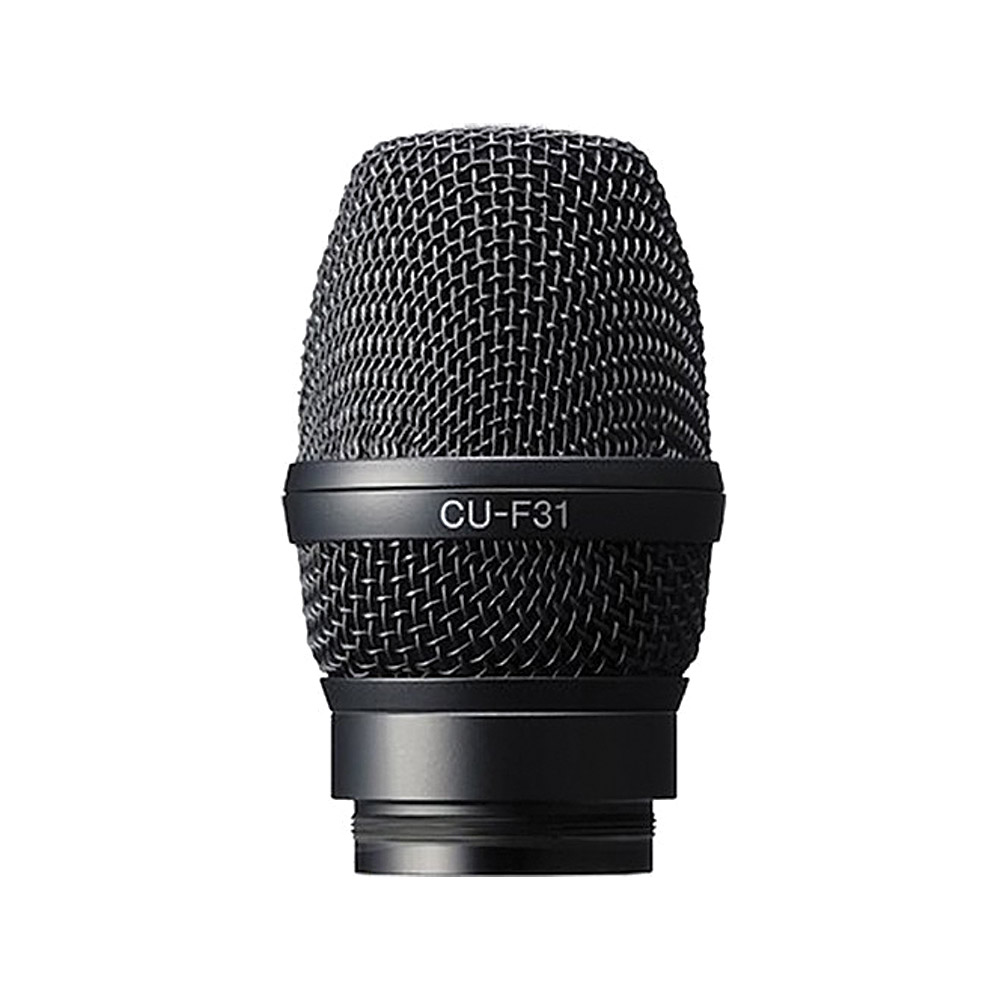

This body only, handheld microphone transmitter is compatible with Sony 31.3mm/pitch 1.0mm threaded interchangeable capsules including the CU-C31 cardioid condenser capsule, the CU-F31 super cardioid dynamic capsule, and the CU-F32 wide cardioid dynamic capsule. The output power is user selectable with options of 1/10/50mW with the lowest offering better battery life of up to 5-hours, using two alkaline AA battery cells. The power switch, OLED display, navigation/selection buttons, and battery compartment is accessed by unscrewing the threaded grip of the microphone body. The battery can be recharged using the optional BC-DWX1 battery charger dock.

Included accessories: Identification ring set, microphone holder, USB adapter cable, carrying case, stand adaptor, PF1/2 to W3.8 type adaptor, and CD-ROM.

Wireless interface: WiDIF-HP. Oscillator type: Crystal-controlled PLL synthesizer. RF power: 1/10/50mW. Maximum input level: -16dBu, with 0dB attenuation. Audio attenuation range: 0-21dB, in 3-dB steps. Frequency response: 20Hz to 22kHz. Dimensions (diameter x L): 37.1 x 194mm. Weight: 235g, including batteries.

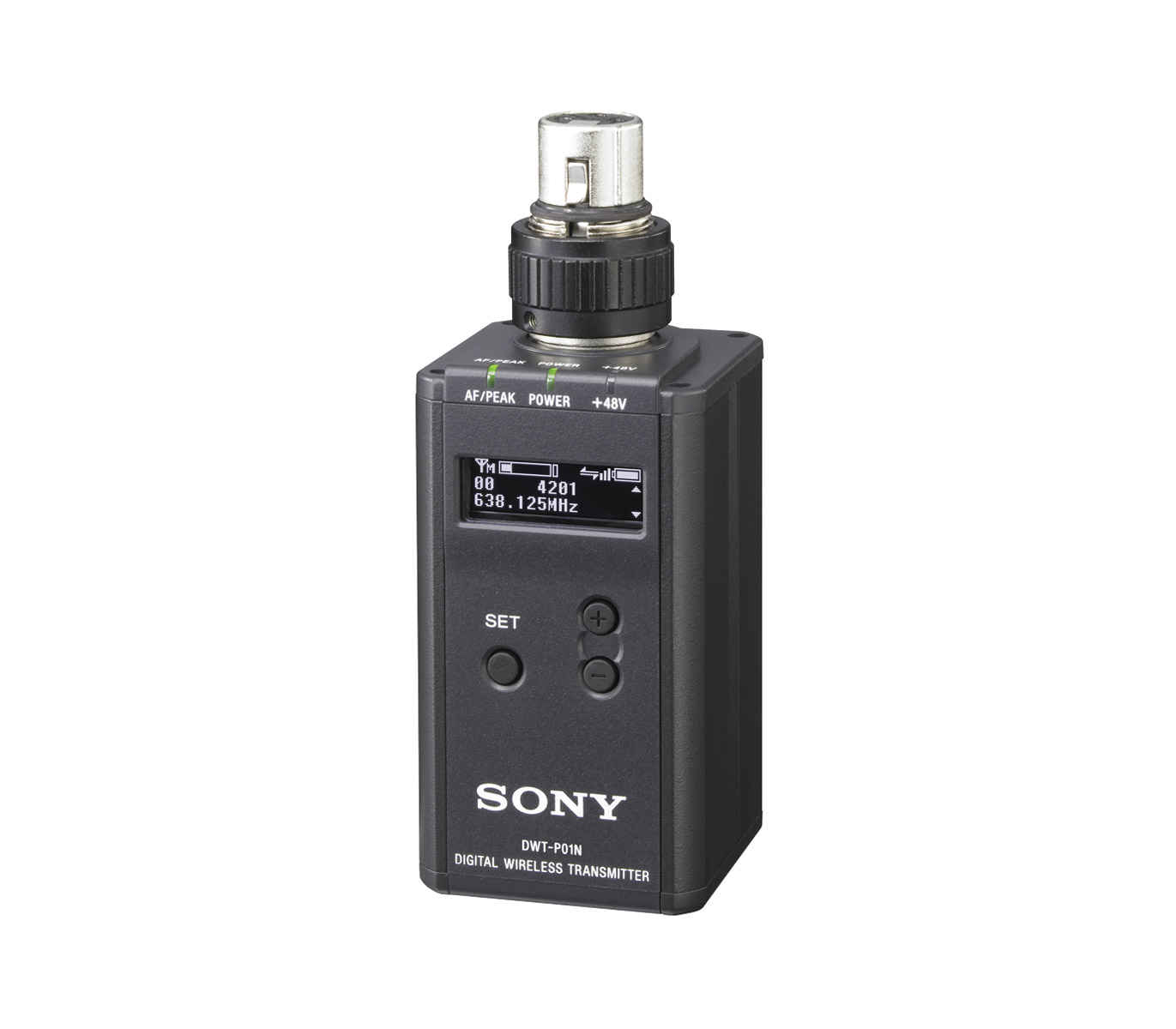

DWT-P01N Plug-on transmitter

This unit has the functionality of the DWT-B01N however it has a female 3-pin XLR for connecting standard vocal microphones such as the Sony F-112 interview mic. 48V phantom power is switchable for microphones with the powering requirement.
Included accessories: Soft case, spare battery case, USB adapter cable, and CD-ROM.

Oscillator type: Crystal-controlled PLL synthesizer. RF power: 1/10/50mW. Maximum input level: -22dBu, mic; +24dBu, line. Audio attenuation range: 0-48dB, in 3-dB steps, MIC input mode only. Dimensions (W x H x D): 44 x 78 x 44mm. Weight: 245g, including batteries.
