This range of Sony accessories has been designed to complement and add operational benefit to Sony DWX and UWP series radiomic systems.
This uni-directional UHF antenna with log-periodic dipole array is designed to be used for diversity reception from a bandwidth covering 470-862MHz. A selectable booster can increase the signal gain by 18/10/0dB.
Antenna gain: 5dBi or more. Booster gain: 18/10/0dB. Voltage standing wave radio: 2.5 or less, antenna; 3.0 or less, booster. Half power angle: 150degrees or less. Front to back ratio: 12db or more. Third order intermodulation: 60dB or more, 95dBuVEMF input). Connections: BNC-R type, 50ohm. Power requirements: 9V/12V DC. Power consumption 100mA. Dimensions (W x H x D): 343 x 341 x 36mm. Weight: 530g.

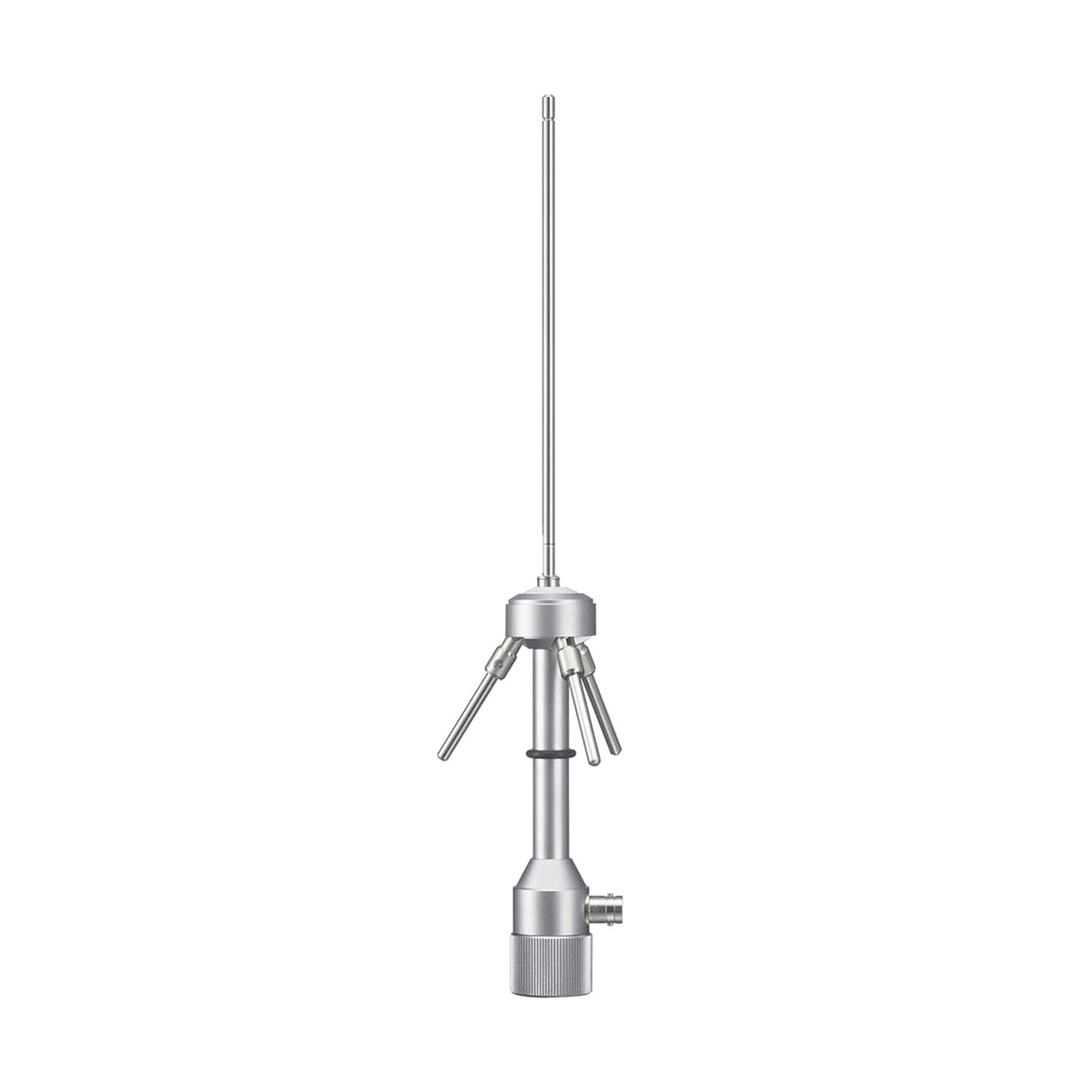

Designed to be positioned on a stand or suspended from the ceiling, this omnidirectional antenna has a frequency range of 638-810MHz. By attaching the supplied antenna elements, the user can alter the range to 470-638MHz.
Gain: 0dBi. Voltage standing wave ratio: 3 or less. Impedance: 50ohm. Connections: BNC-R type. Dimensions (diameter x L): 121 x 288mm. Weight: 280g.
The WD-850A antenna distribution unit can provide diversity output, covering 470-862MHz, for up to four fixed Sony wireless receivers using the two pairs of inputs and four pairs of output connections. A secondary unit can be lined via a single pair of cascade outputs. RF muting, otherwise known as squelch, can be switched between 5/10/15dB/off positions.
RF input connections: BNC, 50ohm. RF output connections: BNC, 50ohm. Audio output connector: SMC9-4S, Sony 4-pin. Audio output level: -58dBm, at reference deviation. Power consumption: 16W. Dimensions (W x H x D): 482 x 44 x 300mm. Weight: 4.6kg.
This 1.5m cable is terminated with female 3-pin XLR and SMC9-4P connectors to allow connection of a standard microphone to a compatible bodypack transmitter.
