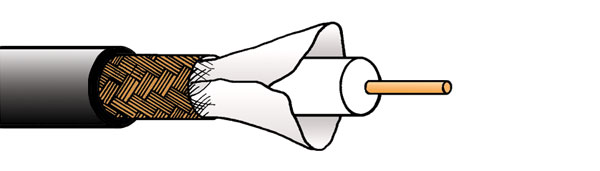

Coaxial 75 ohm cable for HDTV, digital and analogue video applications, in a ‘non-halogen’ construction. Industry size type RG59/U.
Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.
Technical Specification:
| Cable size group: |
Q (with Canare and Neutrik exceptions) |
| Inner conductor: |
1/0.81mm (20AWG) (0.52mm sq.) plain copper |
| Dielectric: |
Gas injected foam high density polyethylene, 3.68mm OD |
| Screen 1: |
Duofoil (aluminium/plastic/aluminium) tape longitudinally applied |
| Screen 2: |
Tinned copper braid, optical coverage 95% |
| Construction: |
Coaxial cable |
| Jacket: |
Low smoke non-halogen material, black, blue |
| Overall diameter: |
5.92mm |
| CPR Euroclass: |
Cca-s1a,d1,a1 |
| Impedance: |
75 +/- 1.5ohms |
| Capacitance: |
53pF/m nominal |
| Velocity of propagation: |
83% |
| Return loss: |
23dB nom. 5-1600MHz |
|
21dB nom. 1600-4500MHz |
|
15dB nom. 4500-6000MHz |
| Weight: |
5.08kg/100m |
| Reel length: |
500 metres |
| Cut lengths: |
Available in any multiple of 1 metre |
Suitable crimp connectors outlined below.
