CANFORD UNIVERSAL CONNECTION PANELS - Rapid Assembly

3 items
CANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x12, black
CANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x12, blackCANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x12, blackCANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x8, blackCANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x16, black

Multipurpose 1U panels developed to allow rapid rear mounting of connector configurations without the need for specialist tools or fiddly nuts. These panels are designed and manufactured from 2mm steel and include only a single return at the top so that they can accommodate the provided M3 tapped mounting frame which effectively snaps onto the rear of any Neutrik D-Series or Canford Universal Series connector and allows the connectors to be quickly mounted using the supplied M3 countersunk screws. These panels are also suitable for rear mounting Neutrik Speakon and Powercon D-series connectors.

Available with 8, 12 and 16 cut-outs, the panels are fitted with a cranked lacing-bar giving easy access to the rear of the connectors. A snap-on cover designation-strip holder is fitted permitting the supplied paper strips to be inserted before or after installation, 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Panels are available in a hard wearing black powder coat finish. Other colours are available on request, subject to minimum order quantities.

The panels come complete with required mounting frames and M3 screws.

Description Price $
ex. VAT
Add to basket
Delivery

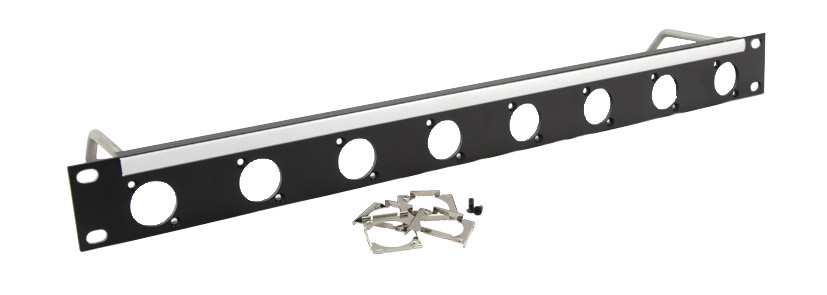

CANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x8, black Black Stock code: 45-3329
20 in stock Need more?
1+ $74.20
5+ $71.22

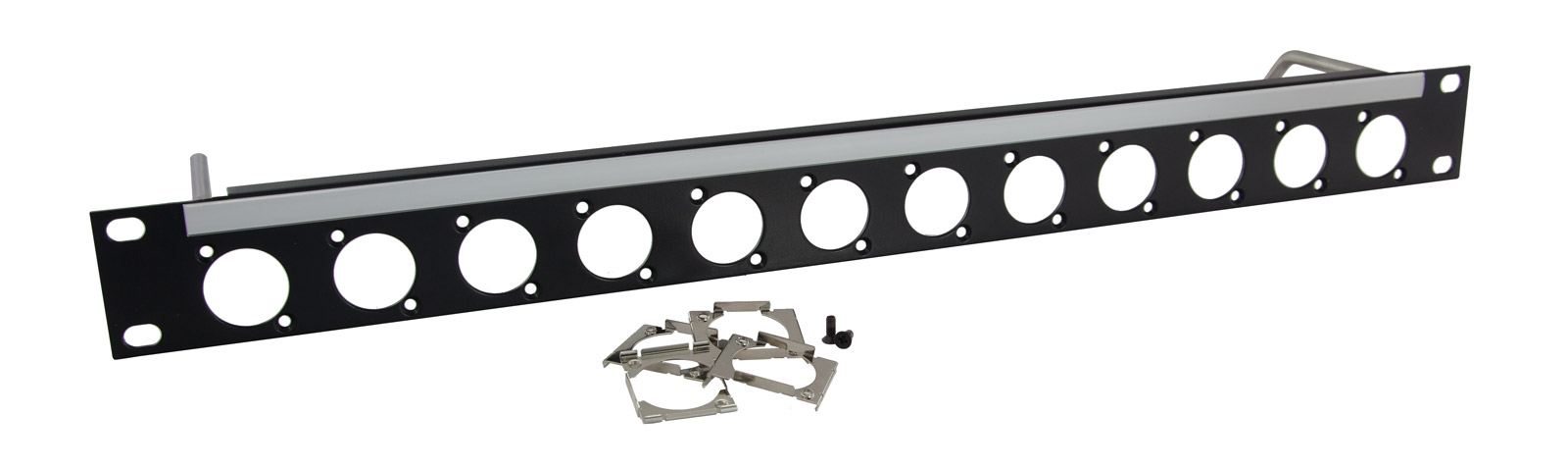

CANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x12, black Black Stock code: 45-3330
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
1+ $79.10
5+ $75.93
CANFORD RAPID ASSEMBLY UNIVERSAL CONNECTION PANEL Kit, 1U, 1x16, black Black Stock code: 45-3331
98 in stock Need more?
1+ $83.39
5+ $80.05
