SIFAM AUDIO LEVEL METERS

9 items
SIFAM AUDIO LEVEL METER AL19WF
SIFAM AUDIO LEVEL METER AL19WFSIFAM AUDIO LEVEL METER AL29WFSIFAM AUDIO LEVEL METER AL39WFSIFAM AUDIO LEVEL METER AL20SQ-RetroSIFAM AUDIO LEVEL METER AL15-RetroSIFAM AUDIO LEVEL METER AL19-Retro

A lower cost alternative to the standard range of Sifam full specification VU meters. The specification for the AL range is based on BS6840 : Part 17, IEC 268-17 : 1990, but does not fully meet the dynamic range characteristics.

The AL-WF meters are suitable for rear of panel mounting, together with bezel, with a rear zero adjust and tab terminals as standard, except for AL20SQ which is front-mounted. Top illumination kits are available as optional accessories.

AL20SQ, which is a front-mounted, ‘vintage’ look meter, with rounded corner bezel, comes complete with 150mm flying leads and back mounted external LED illumination, (back mounted Festoon lamp or internal mounted LED illumination options available on specific request).

The AL-RETRO meters are suitable for front of panel mounting, and feature the distinctive ‘vintage retro’ stylings of the AL20SQ. The casing is black ABS, with beige scale, with a rear zero adjust and 12V LED illumination as standard. AL15 has flying leads, AL19 has 6.3mm tab terminals.

Type Panel cutout Bezel Depth from front of panel
AL19WF 47mm x 24mm 49mm x 27mm 41mm
AL29WF 80mm x 37mm 83mm x 42mm 43mm
AL39WF 98mm x 46mm 101mm x 51mm 44mm
AL20SQ-Retro 55mm diameter 57.1mm x 57.1mm 40.2 mm
AL15-Retro 27mm diameter 36.5mm x 36.5mm 32.8mm
AL19-Retro 27mm diameter 46.3mm x 42.3mm 31.0mm excl. tabs
Description Price $
ex. VAT
Add to basket
Delivery

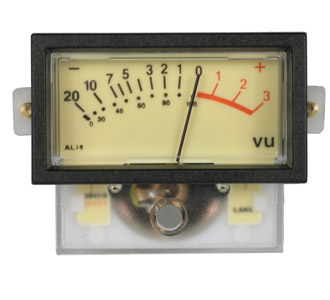

SIFAM AUDIO LEVEL METER AL19WF Stock code: 58-381
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $46.31
5+ $44.92

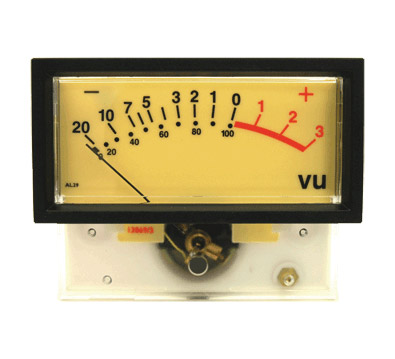

SIFAM AUDIO LEVEL METER AL29WF Stock code: 58-382
27 in stock Need more?
1+ $38.82
5+ $37.65

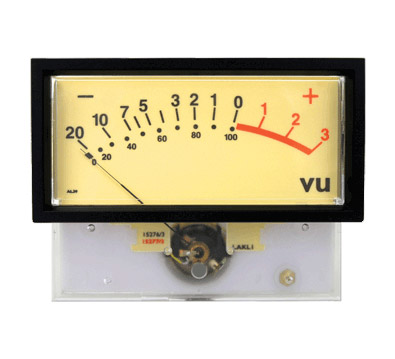

SIFAM AUDIO LEVEL METER AL39WF Stock code: 58-383
Out of stock but available to backorder, stock expected: 19/12/2024.
1+ $46.07
5+ $44.68
SIFAM AUDIO LEVEL METER AL20SQ-Retro Stock code: 58-379
4 in stock Need more?
1+ $57.02
5+ $55.31
SIFAM AUDIO LEVEL METER AL15-Retro Stock code: 58-398
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $41.72
5+ $40.47
SIFAM AUDIO LEVEL METER AL19-Retro Stock code: 58-399
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $43.92
5+ $42.60
SIFAM ILLUMINATION KIT Festoon lamp type, for AL19WF meters (with 12V lamp) Stock code: 58-384
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ $6.25
5+ $6.07
SIFAM ILLUMINATION KIT Festoon lamp type, for AL29WF meter (with 12V lamp) Stock code: 58-385
4 in stock Need more?
1+ $6.25
5+ $6.07
SIFAM ILLUMINATION KIT Festoon lamp type, for AL39WF meters (with 12V lamp) Stock code: 58-386
3 in stock Need more?
1+ $6.84
5+ $6.63
