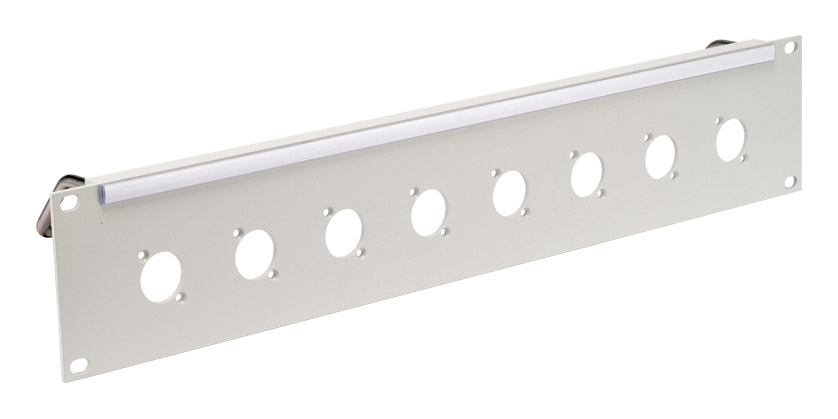

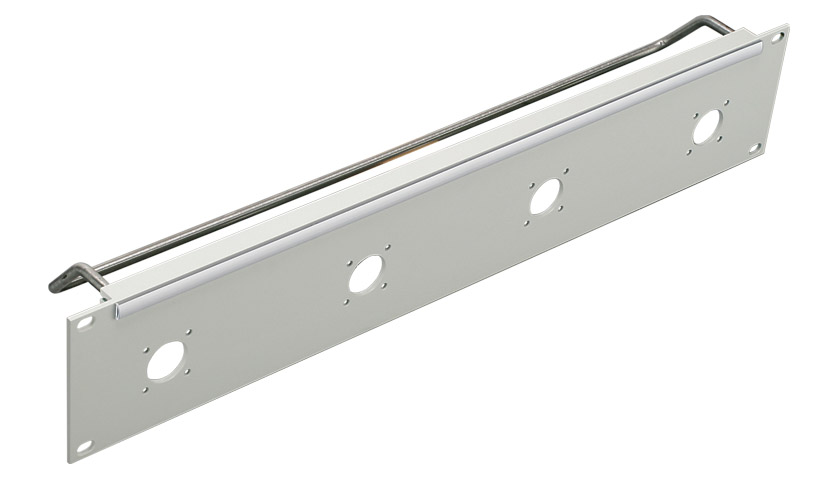

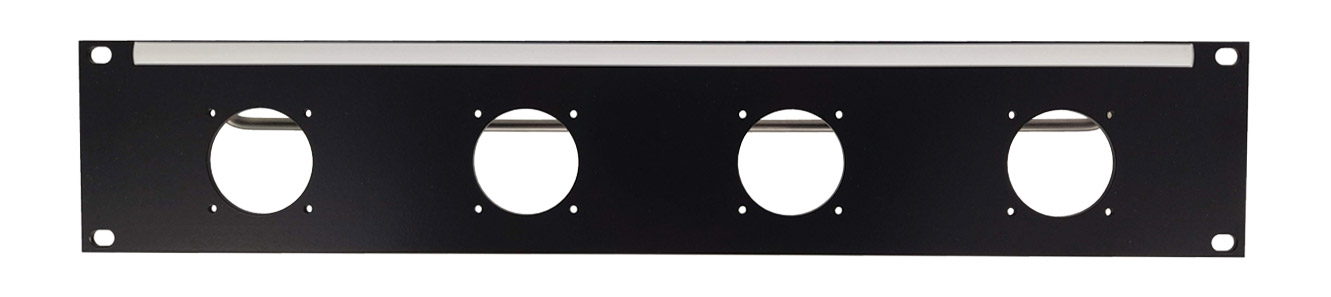

These 19 inch, rack-mounting, panels are designed to support a wide variety of audio connectors on the tailboard of outside broadcast vehicles, in studio or stadia wall-boxes, or in 'fly away' racks or flight-cases. Flush or flat versions have a horizontal connector mating axis. Designed for MIL26, Tourline 25 and 37, Neutrik 'D' series (including PowerCON, Speakon and opticalCON), Switchcraft 'Universal' series or any Canford 'Universal connection system' connectors.
Angled versions, manufactured from a unique 'Z' profile aluminium-extrusion, are also available, which present the connector axis at a 23.5 degree downward angle. This angle relieves strain on the cable connector termination and eases mating during rigging.
Panels are supplied unpopulated as standard, but complete with appropriate connector mounting screws, nuts and shake-proof washers where required. Connector-flange mounting holes in the panel are threaded where appropriate. Connectors or cable assemblies can be supplied or fitted if required.

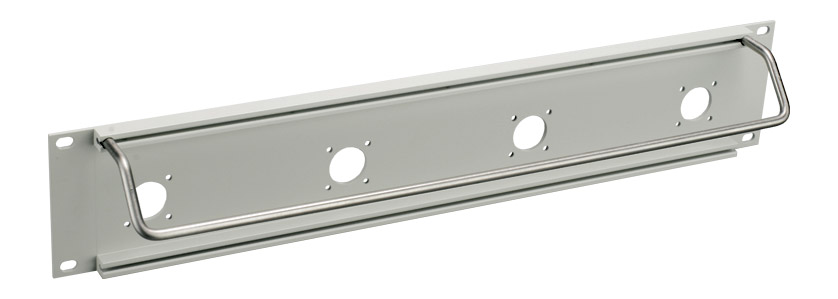

Manufactured from a heavy-duty, aluminium extrusion, these 2U panels have integral bracing at the rear, achieving an extremely rigid and rugged mounting for all the most common outside broadcast and studio connectors. Many additional connector types or combinations can be accommodated economically. Please contact Sales if you have a special requirement.

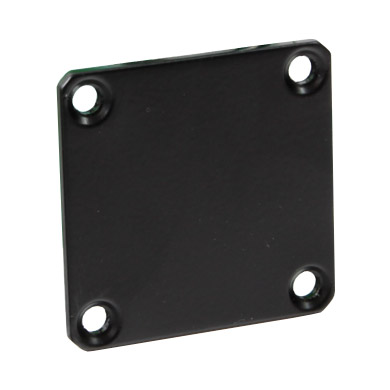

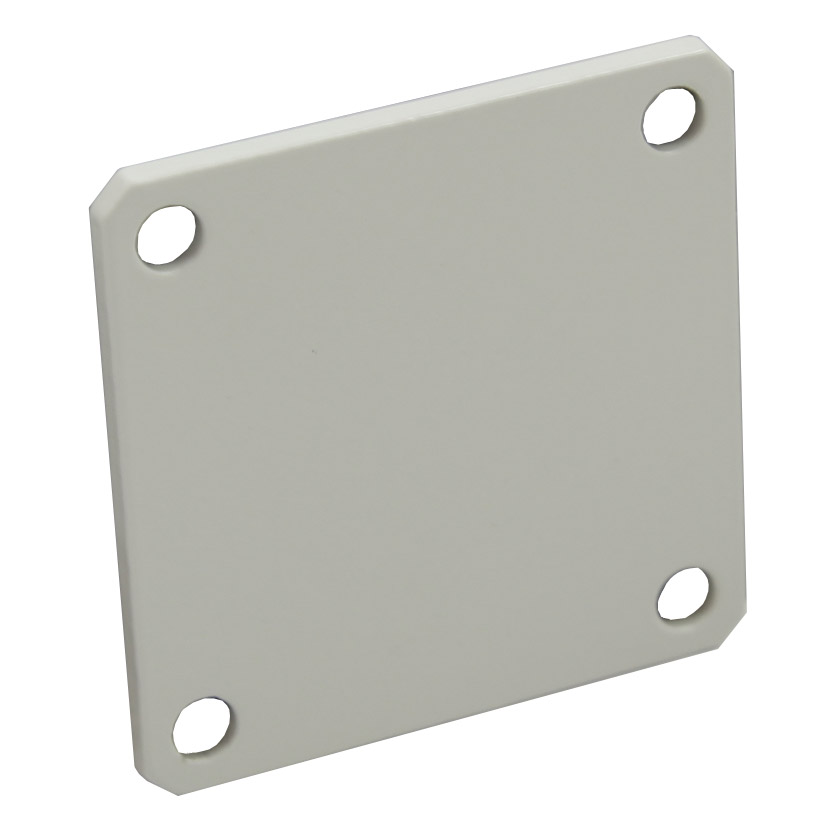

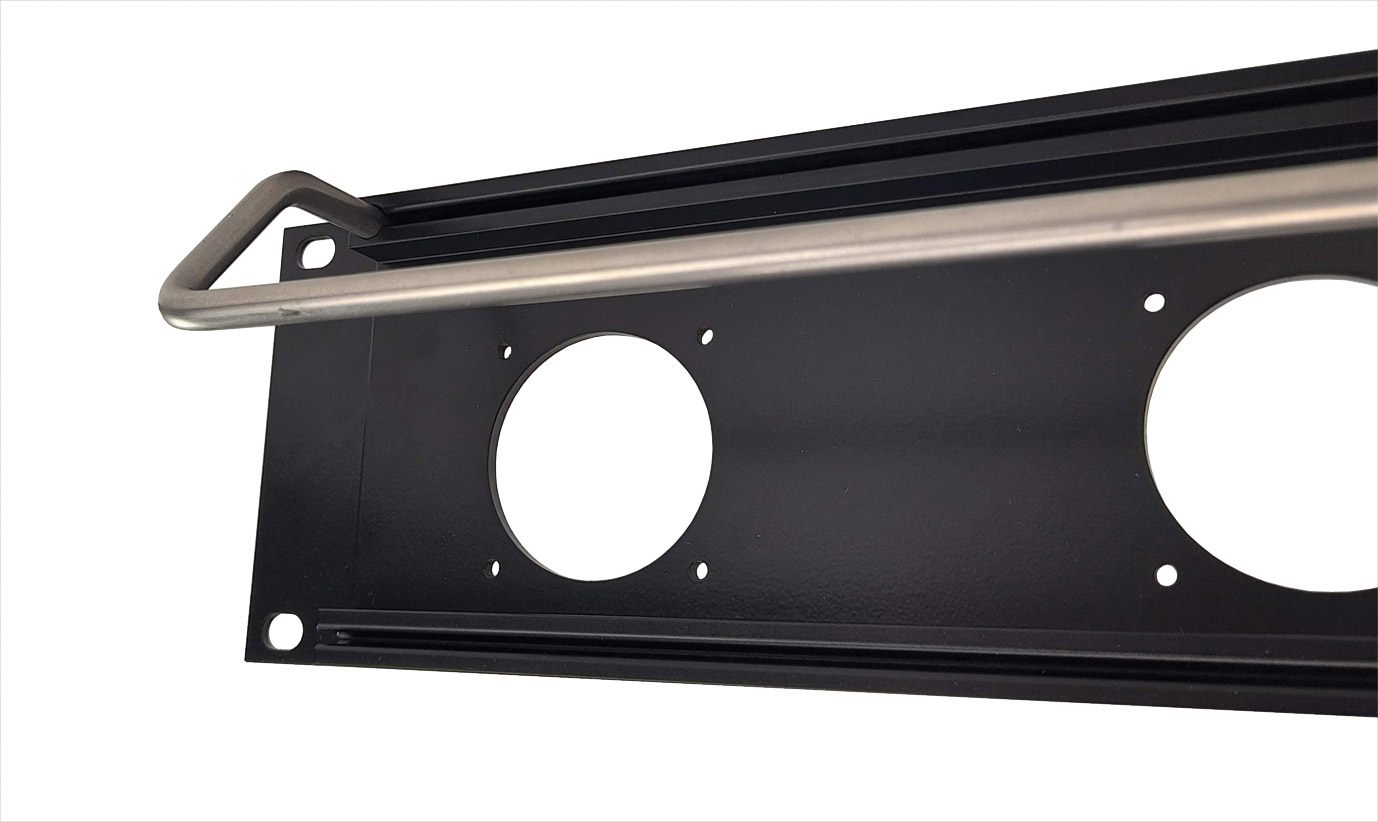

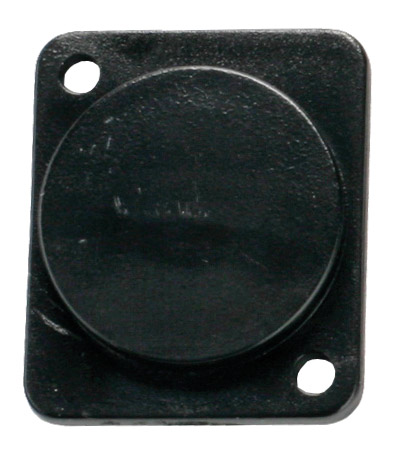

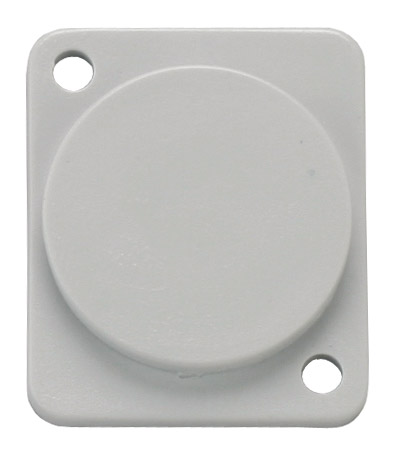

Connector mounting is uninsulated, as is common practice. A single, cranked, lacing-bar is fitted to the rear of the panel. The 65mm deep, low-profile lacing-bar allows for tight cable routing; a 100mm deep lacing bar is also available if specified at the time of order or as a retrofit option (order separately). Metal blanking plates are available for covering unused cut-outs. Canford XLR blanking plates are suitable for 'D' cut-outs.
A designation-strip holder with snap-on cover is fitted above the connector row. The supplied paper strips may be inserted before or after installation; printable height: 7.5mm. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.
Available finished in Dawn Grey (BS4800-10A03) or black. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.
‘Universal connection system’ is a series designation originated by Canford Audio. Copyright Canford Audio 1987.
